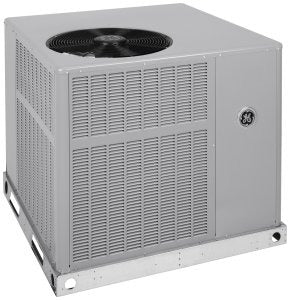

General Electric NP14L24S054 Gas Electric Packaged Unit

Product Description

The GENERAL ELECTRIC NP14L24S054 is a gas/electric packaged unit designed to deliver both heating and cooling from a single, self-contained cabinet. It provides 54 Kbtu/hr of gas heating at 81 percent AFUE and 22.6 Kbtu/hr of cooling capacity rated at 14 SEER and 11 EER. Operating on 208-240 VAC single-phase power, it uses a constant torque motor and runs single-stage operation on both heating and cooling. This unit is installed by licensed HVAC technicians in light commercial and residential applications where a rooftop or ground-level all-in-one system is required.

The NP14L24S054 suits low-rise commercial buildings, retail spaces, and residential installations where space or ductwork layout favors a packaged rooftop or slab-mounted configuration over split-system alternatives. Its gas heating capability makes it appropriate for regions where natural gas is the preferred fuel source. Single-phase electrical service is required. The unit ships from domestic manufacturing in the United States and is intended for professional installation only.

Key Features

• 54 Kbtu/hr gas heating capacity at 81 percent AFUE for efficient fuel use
• 22.6 Kbtu/hr cooling capacity rated at 14 SEER and 11 EER
• Constant torque motor for consistent airflow performance across system static pressure variations
• Single-stage heating and cooling operation simplifies controls integration
• 208-240 VAC single-phase power supply for broad electrical compatibility
• Domestic manufacture — country of origin is the United States

Compatibility

Designed as an OEM gas/electric packaged rooftop unit for residential and light commercial ducted HVAC systems requiring single-phase 208-240 VAC power and a 2-ton nominal cooling capacity.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with local mechanical codes, the International Fuel Gas Code (IFGC), and the National Electrical Code (NEC). Shut off all electrical power and close the gas supply valve before making any connections or performing service. Verify that the existing ductwork, curb dimensions, and electrical service match the unit specifications before mounting. Do not operate the unit without confirming proper gas line sizing, flue venting configuration, and refrigerant circuit integrity.

Technical Specifications

• Type: Gas/Electric Packaged Unit
• Nominal Cooling Capacity: 2 ton
• Heating Capacity: 54 Kbtu/hr
• Cooling Capacity: 22.6 Kbtu/hr
• SEER Rating: 14
• EER Rating: 11
• AFUE Rating: 81 percent
• Fuel Type: Gas
• Voltage Rating: 208-240 VAC
• Phase: 1 phase
• Motor Type: Constant Torque
• Stages of Cooling: 1
• Stages of Heating: 1
• Item Height: 40.9 inches
• Item Length: 47.66 inches
• Item Width: 47.66 inches
• Country of Origin: United States

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: NP14L24S054
