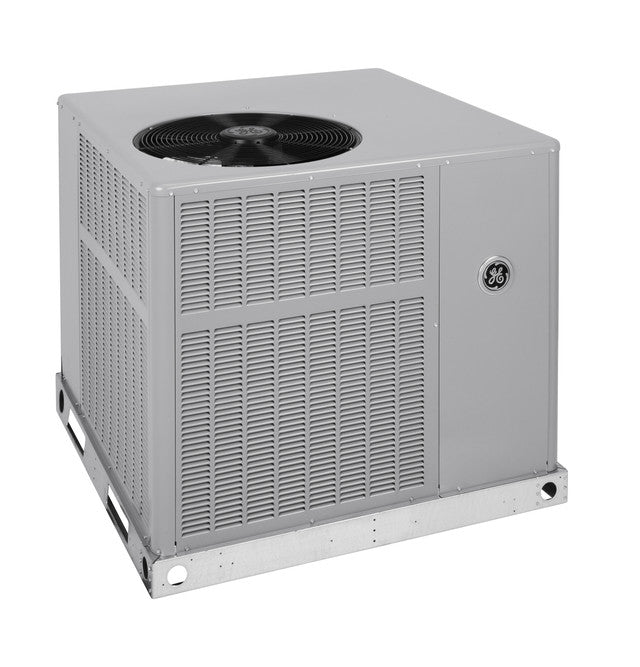

General Electric np14h48s 4-ton 14 Seer Heat Pump Packaged Unit

Product Description

The GENERAL ELECTRIC np14h48s is a 4-ton, 14 SEER heat pump packaged unit built for single-stage heating and cooling in a self-contained cabinet. It delivers horizontal airflow and is designed to simplify field servicing with zero-clearance access points. At 428 pounds net weight and a compact footprint, this unit suits ground-level or rooftop installations where space and serviceability both matter. Licensed HVAC technicians install and commission this class of equipment. The gray powder-coat cabinet is built to hold up in outdoor environments common to residential and light commercial applications.

This packaged heat pump is suited for residential and light commercial applications requiring a single outdoor cabinet that handles both heating and cooling. Horizontal airflow configuration makes it a practical fit for structures where duct runs exit the building laterally. Single-stage operation keeps controls straightforward and reduces system complexity during commissioning and troubleshooting. The 14 SEER efficiency rating meets current minimum efficiency standards for many U.S. climate regions.

Key Features

• 4-ton nominal capacity with 14 SEER efficiency rating
• Single-stage heating operation for straightforward system control
• Horizontal airflow configuration for lateral duct connections
• Zero-clearance servicing design for easier access in tight installations
• Gray cabinet finish suited for outdoor exposure
• Limited 10-year parts warranty on entire appliance with registration; limited 5-year without

Compatibility

Designed as an OEM-style packaged heat pump replacement or new-install unit for residential and light commercial horizontal-airflow duct systems requiring a 4-ton, 14 SEER self-contained heat pump.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer installation instructions. Disconnect and lock out all electrical power to the circuit before beginning any service or installation work. Refrigerant handling requires EPA Section 608 certification. Confirm that the existing duct system, electrical supply, and pad or roof curb are rated for the unit weight of 428 pounds before setting the cabinet.

Technical Specifications

• Product Type: Heat Pump Packaged Unit
• Tonnage: 4 tons
• SEER: 14
• Heating Stages: Single-Stage
• Airflow Direction: Horizontal
• Overall Width: 47.66 inches
• Overall Depth: 47.66 inches
• Overall Height: 44.9 inches
• Net Weight: 428 pounds
• Approximate Shipping Weight: 438 pounds
• Color: Gray
• Parts Warranty: Limited 5-year entire appliance; limited 10-year entire appliance with registration

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: np14h48s
