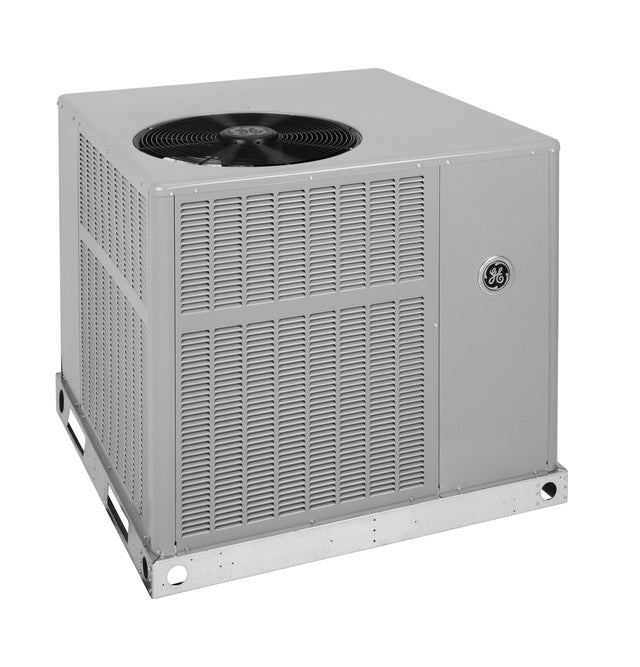

General Electric np14h24s 2-ton 14 Seer Heat Pump Package

Product Description

The GENERAL ELECTRIC np14h24s is a 2-ton, 14 SEER heat pump packaged unit built for residential and light-commercial horizontal-airflow applications. It delivers single-stage heating and cooling from a single self-contained cabinet, simplifying rooftop or ground-level installations where separate indoor and outdoor equipment is not practical. Rated at 14 SEER, the unit meets baseline efficiency standards widely required by regional energy codes. At 305 pounds net weight, the cabinet is sized to accommodate standard packaged-unit curb or pad configurations. The gray cabinet finish is designed to withstand outdoor exposure. Licensed HVAC technicians handle installation and service on this class of equipment.

This unit is suited for residential homes and light-commercial buildings where a self-contained heat pump system is preferred over a split system. Horizontal airflow orientation makes it appropriate for rooftop curb-mount installations or ground-level slab placements with horizontal duct connections. Single-stage operation keeps controls straightforward and is a common fit for smaller zones with moderate heating and cooling loads in the 2-ton range. The zero-clearance servicing design supports access in tighter mechanical areas.

Key Features

• 2-ton capacity in a self-contained packaged configuration
• 14 SEER efficiency rating meets common regional minimum standards
• Single-stage heating simplifies control wiring and thermostat compatibility
• Horizontal airflow orientation for rooftop curb-mount or ground-level horizontal duct applications
• Designed for easy servicing with zero-clearance access
• Gray exterior finish for outdoor installation

Compatibility

Designed as an OEM packaged heat pump unit for residential and light-commercial horizontal-airflow installations requiring a 2-ton, 14 SEER self-contained system.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer instructions. Disconnect all electrical power to the unit before any service or connection work. Rooftop installations require a properly rated equipment curb; verify curb dimensions match the unit footprint before setting the unit. Refrigerant handling must comply with EPA Section 608 regulations and be performed by a certified technician.

Technical Specifications

• Tonnage: 2 tons
• SEER: 14
• Heating Stages: Single-Stage
• Airflow Direction: Horizontal
• Overall Width: 47.66 inches
• Overall Depth: 47.66 inches
• Overall Height: 40.9 inches
• Net Weight: 305 pounds
• Approximate Shipping Weight: 315 pounds
• Color: Gray
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: np14h24s
