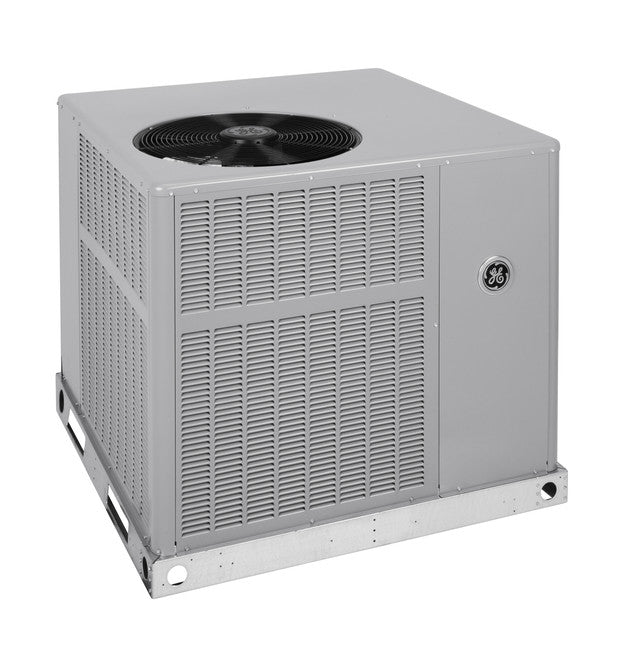

General Electric np14g48s108 Gas Packaged Unit 4 Ton 14 Seer

Product Description

The GENERAL ELECTRIC np14g48s108 is a single-stage gas packaged unit designed for horizontal airflow applications in residential and light commercial HVAC systems. Rated at 108,000 BTU/h heating capacity with an AFUE of 0.81, this unit delivers consistent heating performance in a self-contained package. The 14 SEER cooling rating and 4-ton capacity make it suitable for moderate-load environments where space-saving, all-in-one installations are required. The unit ships at 475 pounds and features a gray exterior finish. It is installed by licensed HVAC technicians as a roof-mounted or grade-level packaged system.

The np14g48s108 is suited for horizontal airflow configurations, making it a practical choice for rooftop installations or slab-mounted applications where duct connections exit horizontally. With Insta-Position Technology, the unit supports flexible installation orientations to reduce service time on the job. Its 0-clearance design allows closer placement to adjacent structures where code permits, simplifying layout in tight mechanical spaces. This unit targets residential and light commercial applications requiring combined heating and cooling in a single outdoor cabinet.

Key Features

• 108,000 BTU/h heating output with 0.81 AFUE efficiency rating
• 14 SEER cooling performance in a 4-ton capacity configuration
• Single-stage heating operation for straightforward controls integration
• Horizontal airflow orientation for rooftop and slab-mount installs
• Insta-Position Technology for flexible field positioning
• 0-clearance design simplifies placement in constrained installations
• Gray cabinet finish rated for outdoor exposure

Compatibility

Designed as an OEM gas packaged unit for residential and light commercial horizontal airflow duct systems. Confirm structural load capacity, gas supply sizing, and electrical service requirements before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, IFGC requirements, and the manufacturer written instructions. Shut off gas supply and disconnect electrical power before servicing or replacing any packaged unit. Verify that the curb adapter, duct connections, and refrigerant line configurations meet local code and manufacturer specifications prior to startup. Do not operate the unit without confirming proper gas pressure, airflow, and electrical supply at the unit terminals.

Technical Specifications

• Heating Capacity: 108,000 BTU/h
• AFUE: 0.81
• SEER: 14
• Cooling Capacity: 4 tons
• Heating Stages: Single-Stage
• Airflow Direction: Horizontal
• Product Type: Gas Packaged Unit
• Color: Gray
• Overall Width: 47.66 inches
• Overall Depth: 47.66 inches
• Overall Height: 44.9 inches
• Net Weight: 465 pounds
• Approximate Shipping Weight: 475 pounds
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: np14g48s108
