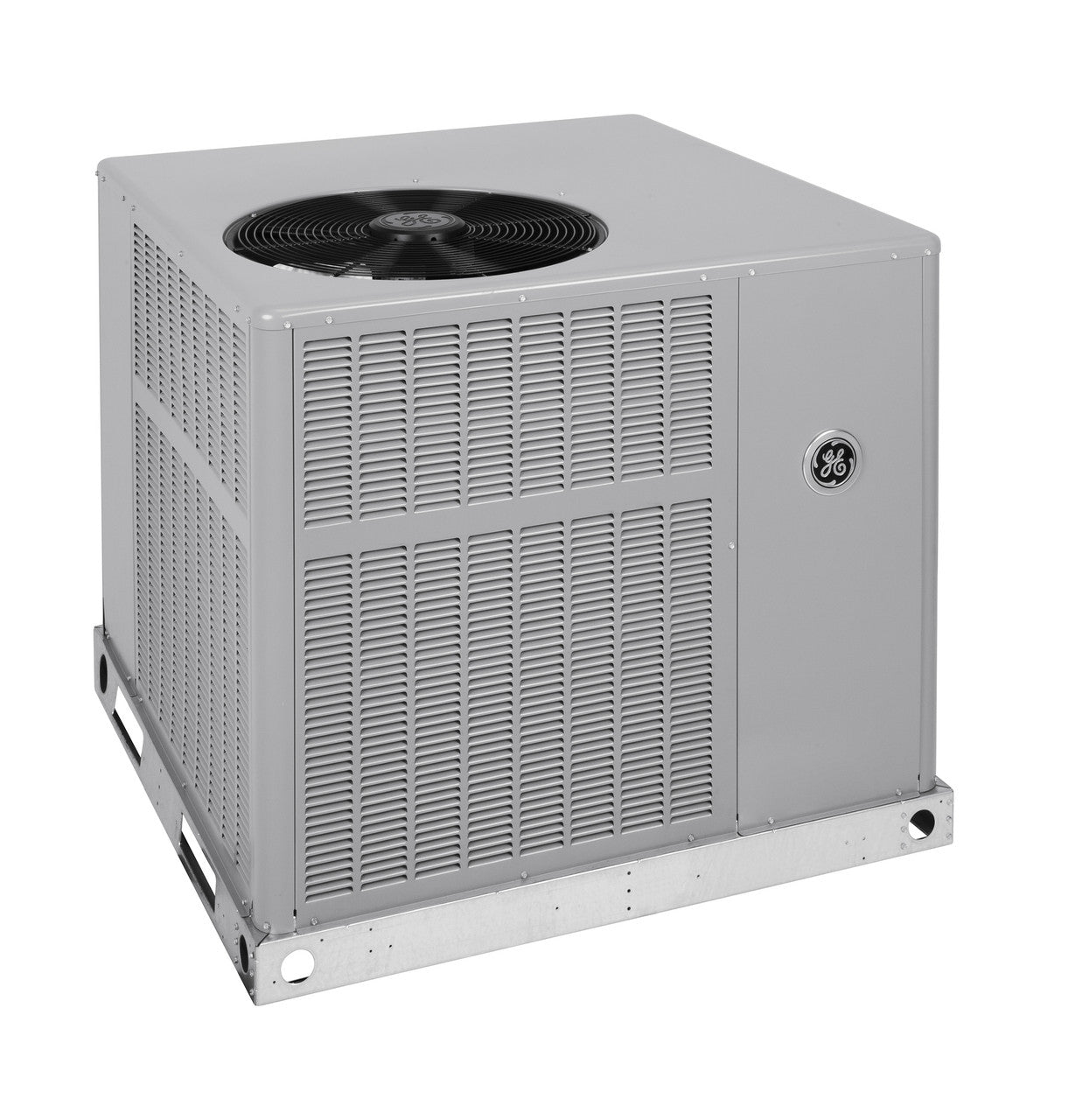

General Electric np14g24s054 Gas Packaged Unit 2 Ton

Product Description

The GENERAL ELECTRIC np14g24s054 is a 2-ton gas packaged unit rated at 54,000 BTU/h cooling capacity and 14 SEER efficiency. It combines gas heating and electric cooling into a single self-contained cabinet, making it a common choice for rooftop or slab-mounted applications where space or ductwork configuration demands an all-in-one solution. The unit operates at 0.81 AFUE on the heating side and delivers horizontal airflow. Designed for straightforward field service, it incorporates Insta-Position Technology and supports zero clearance installation. Licensed HVAC technicians handle the mechanical, gas, and electrical connections during installation.

This packaged unit is suited for residential and light commercial applications where a split system is not practical. Horizontal airflow makes it compatible with rooftop curb mounts or ground-level slab installations feeding horizontal duct runs. The single-stage heating operation keeps controls simple and reduces service call complexity. The gray cabinet blends with standard rooftop and exterior installations. It is intended for markets where a 14 SEER rating meets the applicable minimum efficiency requirement.

Key Features

• 2-ton cooling capacity at 54,000 BTU/h with 14 SEER rating
• 0.81 AFUE single-stage gas heat for straightforward heating operation
• Horizontal airflow configuration supports rooftop curb and slab-mount installs
• Insta-Position Technology designed to simplify field servicing and component access
• Zero clearance installation capability reduces site constraints
• Limited 10-year entire appliance warranty available with product registration

Compatibility

Designed as an OEM gas packaged unit replacement or new installation for residential and light commercial horizontal-airflow duct systems requiring a 2-ton, 14 SEER self-contained gas-electric configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the National Fuel Gas Code (NFPA 54), and applicable electrical codes. Disconnect all electrical power and shut off the gas supply before beginning any service or installation work. Verify that the curb or slab mounting surface is level and structurally adequate to support the unit weight prior to setting the cabinet. Refer to the manufacturer installation manual for duct connection, gas line sizing, and flue venting requirements specific to this unit.

Technical Specifications

• Product Type: Gas Packaged Unit
• Cooling Capacity: 54,000 BTU/h
• Tonnage: 2 tons
• SEER: 14
• AFUE: 0.81
• Heating Stages: Single-Stage
• Airflow Direction: Horizontal
• Color: Gray
• Overall Width: 47.66 inches
• Overall Depth: 47.66 inches
• Overall Height: 40.9 inches
• Net Weight: 337 pounds
• Approximate Shipping Weight: 347 pounds
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: np14g24s054
