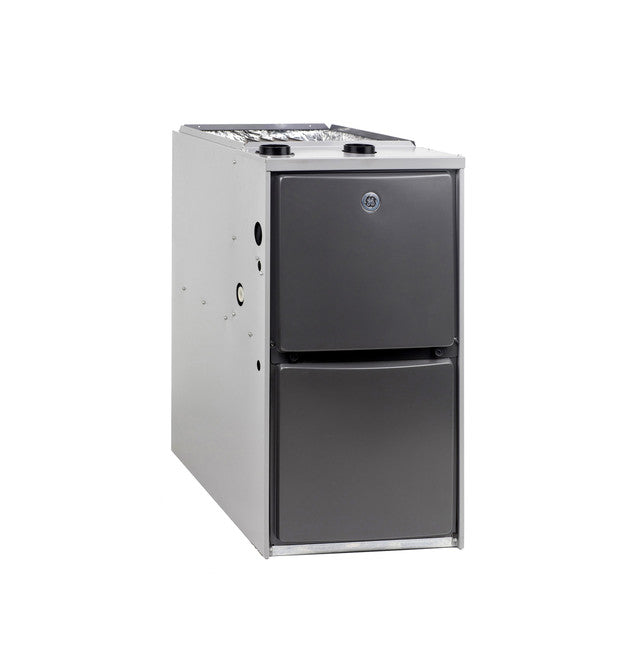

General Electric nf96d090v5c Gas Furnace 90K Btu 96% Afue

Product Description

The GENERAL ELECTRIC nf96d090v5c is a two-stage, downflow gas furnace rated at 90,000 BTU/h with a 96% AFUE efficiency rating. It uses a variable-speed motor to deliver consistent airflow and reduce energy consumption across heating cycles. The furnace features Insta-Position Technology and pre-formed flanges, allowing flexible installation positioning without field modification. Heat exchangers are crimped rather than welded, a construction method associated with long-term joint integrity under thermal cycling. This unit is designed for installation by a licensed HVAC technician in residential or light-commercial applications requiring a high-efficiency downflow configuration.

This furnace is suited for downflow installations where supply air is delivered from the bottom of the unit into the duct system below. A 5-ton airflow capacity makes it appropriate for larger residential structures. The variable-speed motor supports zoned systems and helps maintain even temperature distribution. The two-stage burner operates at a reduced stage during moderate demand and steps up only when load requires, reducing short-cycling and noise during normal operation.

Key Features

• 96% AFUE two-stage combustion for efficient fuel use across varying load conditions
• Variable-speed motor for quiet operation and compatibility with zoned HVAC systems
• Insta-Position Technology allows flexible installation orientation
• Pre-formed flanges and crimped heat exchangers for durable, field-ready construction
• Downflow airflow configuration for installations with below-unit duct systems
• Limited lifetime heat exchanger warranty with registration

Compatibility

Designed as an OEM downflow gas furnace replacement or new installation for residential systems requiring a 90,000 BTU/h, 96% AFUE, two-stage unit with a 5-ton airflow rating.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power before beginning any service or installation work. Vent connections must comply with applicable B-vent or PVC venting requirements for high-efficiency condensing furnaces. Do not operate the unit without verifying proper combustion air supply, flue configuration, and thermostat wiring before startup.

Technical Specifications

• Product Type: Gas Furnace
• BTU/h Output: 90,000 BTU/h
• AFUE: 96%
• Heating Stages: Two-Stage
• Airflow Direction: Downflow
• Tonnage: 5 Ton
• Motor Type: Variable Speed
• Emissions Level: Standard
• Color: Gray
• Overall Height: 33 inches
• Overall Width: 21 inches
• Overall Depth: 28.5 inches
• Net Weight: 156 pounds
• Approximate Shipping Weight: 166 pounds
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration; Limited 20-year heat exchanger; Limited lifetime heat exchanger with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: nf96d090v5c
