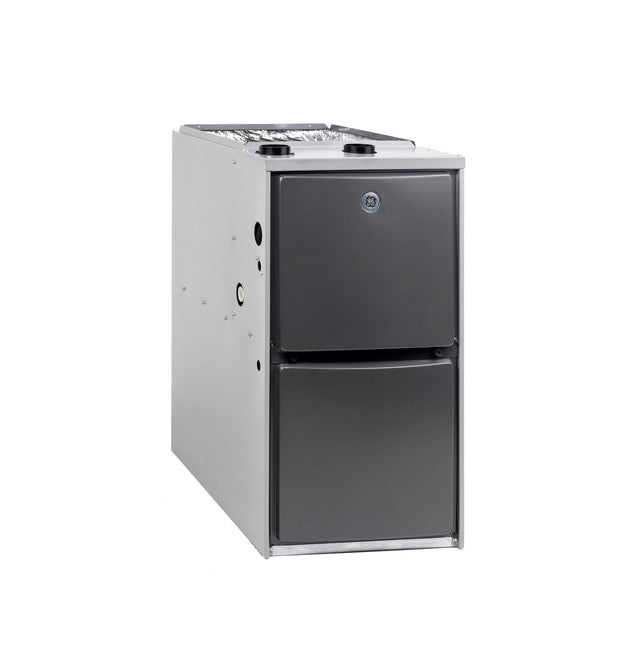

General Electric nf96d090s4cr 90K Btu Gas Furnace

Product Description

The GENERAL ELECTRIC nf96d090s4cr is a single-stage downflow gas furnace rated at 96% AFUE with 88,000 BTU/h input and 86,000 BTU/h output. It is engineered for residential forced-air heating systems and operates on 120 volts with a 15-amp fuse. The unit delivers up to 2,000 CFM airflow through a constant torque ECM-style motor, which maintains consistent airflow across varying static pressure conditions. Ignition is handled by a dedicated ignitor. Cabinet finish is gray and the unit is configured for downflow applications, fitting standard C-cabinet duct configurations. Licensed HVAC technicians are the primary installers for this equipment.

This furnace is suited for residential downflow installations where the air supply exits through the bottom of the unit. The C cabinet dimensions — 33 inches high, 21 inches wide, and 28.75 inches deep — make it compatible with standard platform or closet installations designed for downflow equipment. The unit supports R410A and R454B refrigerant coil pairings for combined heating and cooling systems. Low NOX emissions place it below 40 ng/J, meeting strict regional air quality requirements in force in many markets.

Key Features

• 96% AFUE single-stage gas furnace for high-efficiency residential heating
• 88,000 BTU/h input and 86,000 BTU/h output capacity
• Constant torque motor delivers 2,000 CFM with stable airflow across varying duct static pressure
• Downflow configuration with C cabinet sizing fits standard platform and closet installs
• Low NOX emissions rated below 40 ng/J for compliance in restricted air quality zones
• Compatible with R410A and R454B refrigerant coils for split-system applications

Compatibility

Designed as an OEM downflow gas furnace in the NF96D series, compatible with R410A and R454B evaporator coil assemblies in residential split-system configurations. Confirm coil and cabinet dimensions match the installation platform before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer written instructions. Shut off gas supply and disconnect electrical power before beginning any service or installation work. Downflow furnaces require a heat-rated subbase or platform when installed over combustible flooring — verify local code requirements before mounting. Do not operate the unit without all panels secured and ductwork fully connected.

Technical Specifications

• Input Capacity: 88,000 BTU/h
• Output Capacity: 86,000 BTU/h
• AFUE: 96%
• Heating Stages: Single-Stage
• Airflow Direction: Downflow
• Airflow Rate: 2,000 CFM
• Voltage: 120 volts
• Fuse Rating: 15 amps
• Motor Type: Constant Torque
• Ignition Type: Ignitor
• Refrigerant Compatibility: R410A / R454B
• Emissions: Low NOX (less than 40 ng/J)
• Cabinet Color: Gray
• Overall Height: 33 inches
• Overall Width: 21 inches
• Overall Depth: 28.75 inches
• Net Weight: 140 pounds
• Shipping Weight: 150 pounds
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration; Limited 20-year heat exchanger; Limited lifetime heat exchanger with registration

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: nf96d090s4cr
