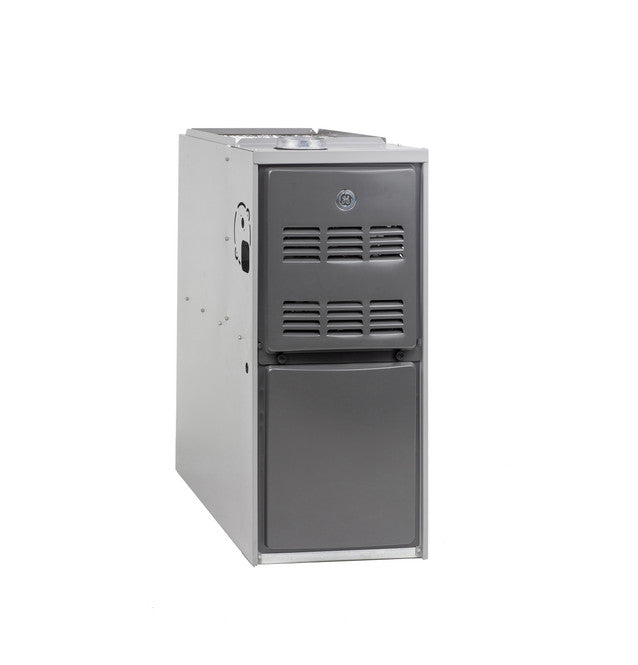

General Electric nf80u090s5cr Gas Furnace 90K Btu 80 Afue

Product Description

The GENERAL ELECTRIC nf80u090s5cr is a single-stage, upflow and horizontal-flow natural gas furnace rated at 90,000 BTU/h output and 80 percent AFUE. It is built for residential forced-air heating systems where space configuration calls for either an upflow or horizontal installation. The C cabinet designation indicates a mid-width chassis suitable for standard residential air handler closets and utility rooms. Licensed HVAC technicians install and commission this furnace as part of a complete split or packaged heating system.

This furnace is intended for residential applications where an 80 percent AFUE single-stage heating solution is appropriate. The upflow and horizontal-flow flexibility makes it a practical fit for basement, closet, and attic installations. At 90,000 BTU/h, it is sized to serve larger conditioned spaces or homes in moderate to cold climates. It pairs with a matching coil and air handler in a split system configuration.

Key Features

• 80 percent AFUE rating meets minimum efficiency standards for residential gas furnaces
• 90,000 BTU/h heating capacity suited for larger residential loads
• Single-stage gas valve delivers straightforward on/off heat operation
• Upflow and horizontal airflow configurations increase installation flexibility
• C cabinet width fits standard residential equipment closets and utility spaces

Compatibility

Designed as an OEM-style replacement or new-install furnace for residential forced-air gas heating systems requiring an 80 percent AFUE, single-stage, upflow or horizontal-flow unit in a C cabinet form factor.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the applicable edition of the IFGC. Shut off the gas supply and disconnect electrical power before any service or connection work. This unit requires proper venting sized to manufacturer specifications for an 80 percent AFUE non-condensing furnace, typically Category I B-vent. Do not operate the furnace without all panels secured and the flue venting fully connected and inspected.

Technical Specifications

• Heating Capacity: 90,000 BTU/h
• AFUE: 80 percent
• Number of Stages: Single
• Airflow Configuration: Upflow / Horizontal
• Cabinet Size: C

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: nf80u090s5cr
