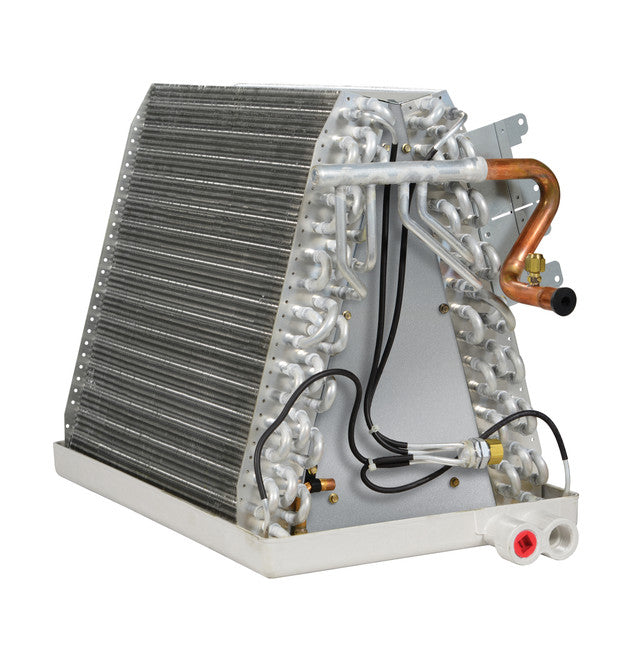

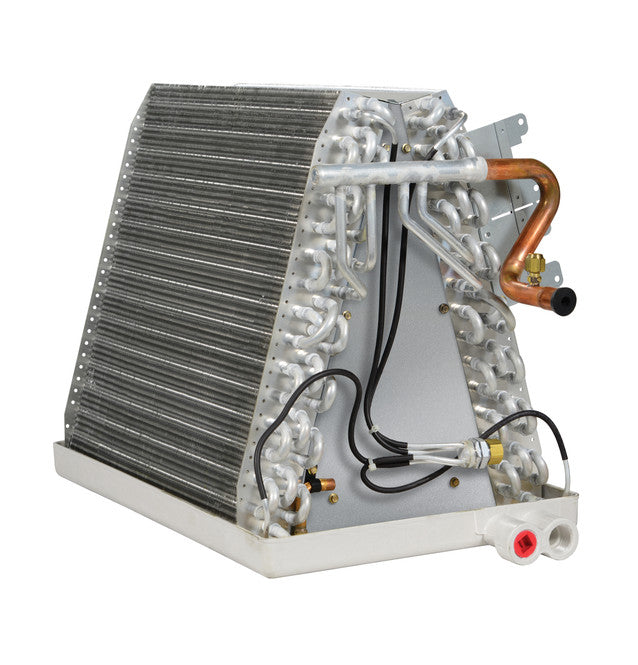

General Electric ncuu36bp4 Uncased Evaporator Coil 3 Ton

Product Description

The GENERAL ELECTRIC ncuu36bp4 is a 3-ton uncased evaporator coil configured for upflow (B cabinet) installations in residential and light commercial split-system air conditioning and heat pump systems. Uncased coils are installed directly inside the air handler or furnace cabinet, making them a compact, field-adaptable solution for replacement and new-installation work. At 3 tons of cooling capacity, this coil is sized for mid-range residential applications. Licensed HVAC technicians handle installation, refrigerant connection, and system commissioning in accordance with applicable mechanical codes.

This coil is suited for upflow air handler and gas furnace configurations where the evaporator is mounted above the heat exchanger or blower section. The B cabinet designation indicates a specific cabinet width class, which determines fitment within the air handler or furnace casing. Uncased coils offer flexibility when the existing cabinet or custom enclosure is already in place. This unit is intended for split-system applications paired with a matched condensing unit.

Key Features

• 3-ton cooling capacity sized for mid-range residential split systems
• Uncased design allows direct installation into existing air handler or furnace cabinets
• Upflow orientation matches B cabinet furnace and air handler configurations
• B cabinet width class provides defined fitment for compatible enclosures
• Intended for use in split-system air conditioning and heat pump applications

Compatibility

Designed as an OEM-style uncased evaporator coil replacement for upflow B cabinet split-system air handlers and gas furnaces rated for 3-ton cooling capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician. Shut down and lock out the electrical supply and recover all system refrigerant before removing or installing the evaporator coil. Verify cabinet width compatibility with the B cabinet designation before installation. Refrigerant line connections and system recharge must comply with EPA Section 608 regulations and local mechanical codes.

Technical Specifications

• Cooling Capacity: 3 Ton
• Configuration: Uncased
• Airflow Orientation: Upflow
• Cabinet Class: B Cabinet

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ncuu36bp4
