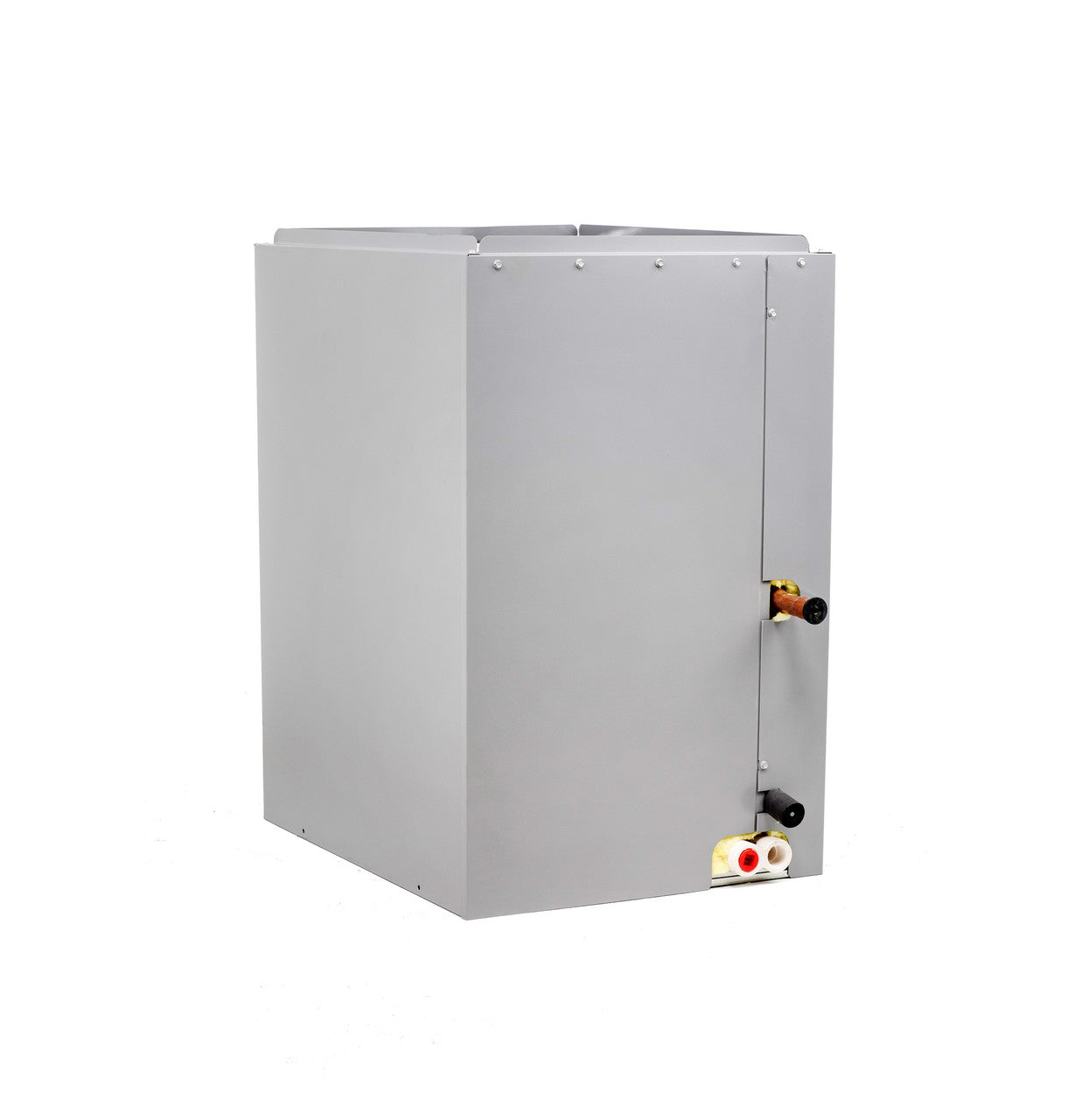

General Electric ncuc60ct4 Cased Evaporator Coil 5 Ton

Product Description

The GENERAL ELECTRIC ncuc60ct4 is a 5-ton cased evaporator coil designed for upflow HVAC installations in residential and light commercial split systems. Built with aluminum alloy tube and fin construction, this coil handles the heat-exchange demands of a 5-ton cooling system while maintaining structural durability over the service life of the equipment. Pre-formed flanges simplify duct and air handler connections during installation. At 69.35 pounds net weight and overall dimensions of 21 inches wide by 21 inches deep by 32.25 inches tall, the ncuc60ct4 fits standard C-cabinet upflow configurations. Licensed HVAC technicians performing coil replacements or new split system installations will find this unit ready for field installation.

The ncuc60ct4 is intended for upflow cased evaporator coil applications in split-system air conditioning and heat pump setups. The cased design integrates into standard air handler or furnace cabinets in the upflow orientation, making it suitable for residential systems where the air handler is positioned below the supply plenum. This coil is sized for 5-ton system capacity, which typically corresponds to larger residential or small commercial conditioned spaces. Installation is performed by licensed HVAC technicians as part of a complete split system assembly.

Key Features

• Aluminum alloy tube and fin construction for durable heat exchange performance
• 5-ton cooling capacity rating for larger residential and light commercial applications
• Upflow cased configuration fits standard C-cabinet air handler installations
• Pre-formed flanges for straightforward duct and plenum connections
• Gray finish with factory casing included
• Limited 10-year parts warranty on entire appliance with registration; limited 5-year without registration

Compatibility

Designed as an OEM-style replacement or new installation evaporator coil for 5-ton upflow cased C-cabinet split systems. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation of this evaporator coil must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect and lock out all electrical power to the air handler or furnace before beginning coil removal or installation. Refrigerant handling requires EPA Section 608 certification. Confirm that the existing cabinet dimensions and airflow orientation match the ncuc60ct4 specifications before installation to ensure proper fit and system performance.

Technical Specifications

• Product Type: Evaporator Coil
• Tonnage: 5 Ton
• Configuration: Cased
• Airflow Orientation: Upflow
• Overall Width: 21 inches
• Overall Depth: 21 inches
• Overall Height: 32.25 inches
• Net Weight: 69.35 pounds
• Approximate Shipping Weight: 73 pounds
• Color: Gray
• Parts Warranty: Limited 5-year entire appliance; limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ncuc60ct4
