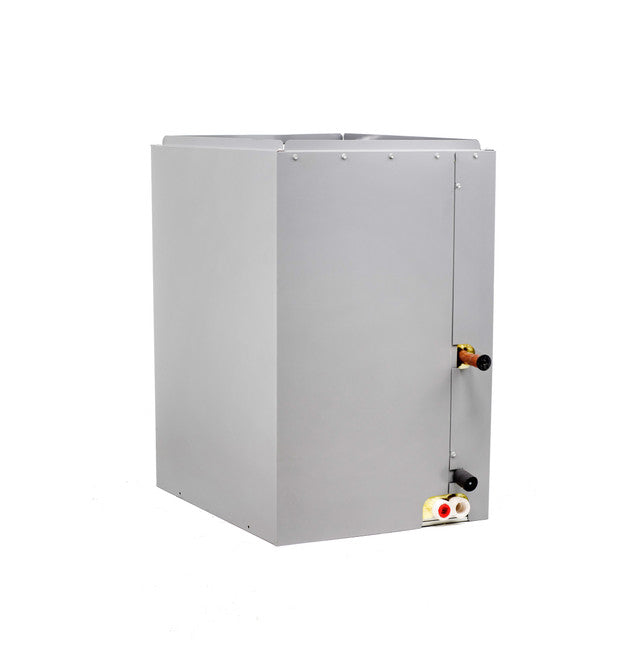

General Electric ncuc48ct4 Cased Evaporator Coil 4 Ton

Product Description

The GENERAL ELECTRIC ncuc48ct4 is a 4-ton cased evaporator coil designed for upflow cabinet installations in central air conditioning and heat pump systems. The casing houses the evaporator coil assembly, allowing refrigerant to absorb heat from return air before it circulates back through the living space. This coil is a core component of the indoor air-handling side of a split system and is typically installed by a licensed HVAC technician. At 4 tons of capacity, it is sized for mid-to-large residential or light commercial cooling applications.

This coil is configured for upflow airflow, meaning supply air exits through the top of the cabinet and connects directly to the supply plenum above. It is suited for installations where the air handler or furnace sits in a basement, mechanical room, or closet with vertical upflow ductwork. The cased design simplifies installation and provides a finished, sealed enclosure that reduces air bypass around the coil.

Key Features

• 4-ton nominal cooling capacity for mid-to-large residential or light commercial systems
• Upflow cabinet orientation for vertical system installations
• Cased design provides a sealed, ready-to-install assembly
• Compatible with split-system air conditioning and heat pump configurations

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for upflow split-system configurations rated at 4 tons nominal capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and EPA Section 608 regulations governing refrigerant handling. Disconnect electrical power to the air handler and recover any refrigerant from the system before disconnecting existing coil connections. Ensure proper drain pan connection and condensate line routing before returning the system to service. Leak-check all brazed or flare connections before recharging the system.

Technical Specifications

• Nominal Cooling Capacity: 4 tons
• Cabinet Orientation: Upflow
• Coil Type: Cased evaporator coil

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ncuc48ct4
