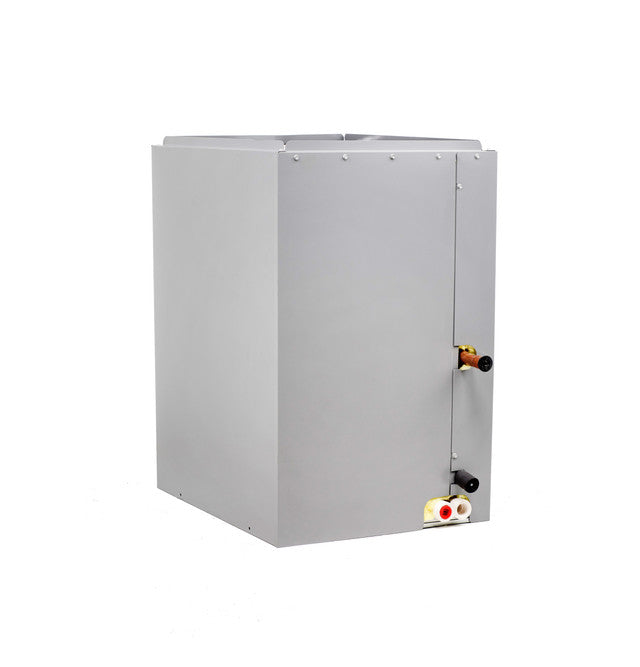

General Electric nchc24bt4 Cased Evaporator Coil 2 Ton

Product Description

The GENERAL ELECTRIC nchc24bt4 is a 2-ton cased evaporator coil designed for horizontal airflow applications in split-system cooling and heat pump installations. Built with aluminum alloy tube and fin construction, the coil delivers efficient heat transfer in a factory-cased enclosure with pre-formed flanges that simplify field connections. At 46.55 pounds net weight, the unit is manageable for a single technician during rough-in. Licensed HVAC professionals install this coil as part of a matched split system, positioning it in the B-cabinet horizontal orientation within the air handler or furnace airstream.

The nchc24bt4 is suited for residential cooling applications where a horizontal coil configuration is required by the equipment layout or duct design. The cased enclosure makes it appropriate for installations where the coil is exposed to unconditioned spaces or where a finished cabinet is preferred for a clean installation. The pre-formed flanges are designed to mate with standard duct and air handler connections, reducing fabrication time on the job site.

Key Features

• Aluminum alloy tube and fin construction for efficient heat transfer and corrosion resistance
• Factory-cased enclosure with gray finish for clean, finished appearance
• Pre-formed flanges for simplified field duct and air handler connections
• Horizontal airflow configuration in B-cabinet form factor
• Limited 5-year parts warranty standard; upgradable to limited 10-year with registration

Compatibility

Designed as an OEM-style cased horizontal evaporator coil for use in residential split-system air conditioning and heat pump installations requiring a 2-ton horizontal coil in a B-cabinet configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer written instructions. Disconnect and lock out all electrical power and recover any refrigerant per EPA Section 608 regulations before servicing or connecting the coil. Ensure the air handler or furnace blower is sized to deliver adequate airflow across the coil to prevent condensate or freeze-up issues. Inspect all pre-formed flange connections for proper seating and seal duct connections thoroughly before startup.

Technical Specifications

• Tonnage: 2 Ton
• Configuration: Cased
• Airflow Direction: Horizontal
• Coil Material: Aluminum Alloy Tube and Fin
• Color: Gray
• Net Weight: 46.55 pounds
• Approximate Shipping Weight: 49 pounds
• Parts Warranty: Limited 5-year; Limited 10-year with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: nchc24bt4
