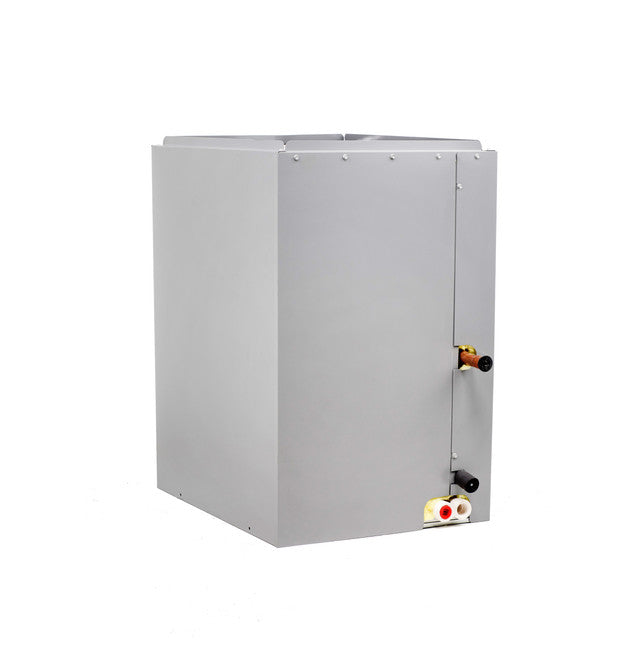

General Electric ncdc5060ct4 Cased Evaporator Coil 5 Ton

Product Description

The GENERAL ELECTRIC ncdc5060ct4 is a 5-ton cased evaporator coil built for downflow applications in residential and light commercial split-system air conditioning and heat pump installations. The coil assembly features aluminum alloy tube and fin construction, which provides reliable heat transfer and corrosion resistance in typical HVAC operating environments. Pre-formed flanges simplify duct connection during installation. At 57 pounds net weight, the unit is manageable for a two-person installation crew. Licensed HVAC technicians are the intended installers for this component.

This coil is configured for downflow airflow, making it suited for applications where supply air exits the air handler or furnace in a downward direction before entering the duct system. The cased design provides a factory-enclosed cabinet that protects the coil during shipping and simplifies field installation. Typical use cases include new residential split-system installations and evaporator coil replacements in downflow furnace or air handler setups.

Key Features

• 5-ton cooling capacity for larger residential and light commercial systems
• Downflow airflow configuration for downflow furnace and air handler pairings
• Cased enclosure protects coil and streamlines field installation
• Aluminum alloy tube and fin coil construction for heat transfer efficiency and durability
• Pre-formed flanges for simplified duct connection
• Limited 10-year parts warranty on entire appliance with product registration

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for 5-ton downflow split-system air conditioning and heat pump systems requiring a cased coil configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer written instructions. Disconnect and lock out all electrical power and close the refrigerant service valves before beginning coil replacement or installation work. Verify that the coil orientation and airflow direction match the air handler or furnace configuration before making refrigerant and duct connections. Do not pressurize the refrigerant circuit beyond the system design operating pressures as specified on the equipment nameplate.

Technical Specifications

• Product Type: Evaporator Coil
• Tonnage: 5 Ton
• Configuration: Cased
• Airflow Direction: Downflow
• Coil Material: Aluminum Alloy Tube and Fin
• Color: Gray
• Net Weight: 57 pounds
• Approximate Shipping Weight: 71 pounds
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ncdc5060ct4
