General Electric nam60v2ta4 Variable Speed Ahu 5 Ton

Product Description

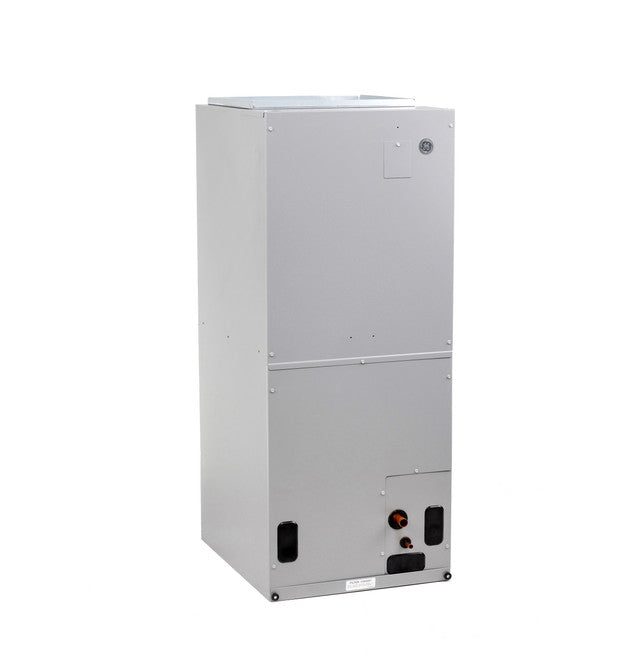

The GENERAL ELECTRIC nam60v2ta4 is a 5-ton, 2-piece variable speed air handling unit designed for residential forced-air HVAC systems. It ships with factory-installed aluminum alloy tube and fin evaporator coils and a factory-installed TXV, reducing field labor at startup. The variable speed ECM-style motor adjusts airflow to match system demand, improving comfort and efficiency across a wide range of operating conditions. Licensed HVAC technicians install this unit as part of a split-system or heat pump configuration where precise airflow control and coil performance are required.

The nam60v2ta4 is suited for residential installations requiring a high-capacity air handler in a 2-piece configuration. The 2-piece design eases maneuvering through tight mechanical room access points or narrow doorways during installation. At 5 tons, this unit serves larger single-family homes or light-duty applications where substantial airflow capacity is needed. The factory-installed TXV eliminates a common field-installation step and helps ensure proper refrigerant metering from commissioning.

Key Features

• Variable speed motor for precise, demand-matched airflow control
• Factory-installed TXV for accurate refrigerant metering out of the box
• Aluminum alloy tube and fin coils for corrosion resistance and efficient heat transfer
• 2-piece configuration simplifies handling and installation in confined spaces
• Gray cabinet finish with a compact footprint relative to capacity
• Limited 10-year parts warranty on entire appliance with registration

Compatibility

Designed as an OEM-style 5-ton variable speed air handling unit for use in residential split-system or heat pump configurations. Consult system design documentation to confirm refrigerant type, line sizing, and matched outdoor unit compatibility before installation.

Installation Notes

Installation of this air handling unit should be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer written instructions. De-energize all electrical circuits and recover refrigerant per EPA Section 608 guidelines before disconnecting or modifying any refrigerant lines. Verify that duct connections, drain line slope, and electrical supply match the unit requirements prior to startup. Register the unit with the manufacturer after installation to activate the 10-year limited warranty.

Technical Specifications

• Product Type: Air Handling Unit
• Tonnage: 5 tons
• Configuration: 2-Piece
• Motor Type: Variable Speed
• Coil Material: Aluminum Alloy Tube and Fin
• Color: Gray
• Overall Height: 63.125 inches
• Overall Width: 21.25 inches
• Overall Depth: 24.625 inches
• Net Weight: 191 pounds
• Shipping Weight: 201 pounds
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: nam60v2ta4
