General Electric nam48e1ta4 Ecm Air Handler 4 Ton

Product Description

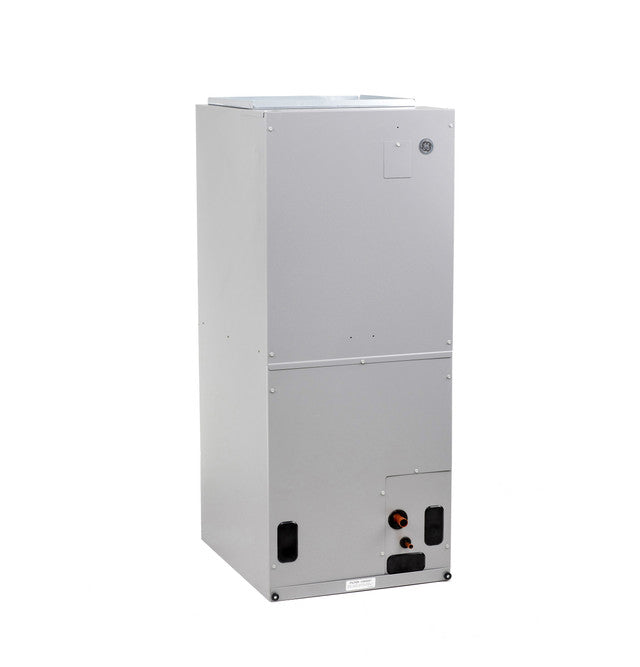

The GENERAL ELECTRIC nam48e1ta4 is a 4-ton, 1-piece air handling unit built for residential forced-air systems. It features an electronically commutated motor (ECM) for quieter, more energy-efficient operation compared to standard PSC motors. The coil assembly uses aluminum alloy tube and fin construction, and the unit ships with a factory-installed TXV for accurate refrigerant metering at the coil. At 176 pounds net weight and a gray cabinet finish, this AHU is sized for typical residential installations handled by licensed HVAC technicians. The factory-installed TXV eliminates a common field-installation step and helps ensure consistent system performance across a range of operating conditions.

The nam48e1ta4 is intended for residential split-system cooling and heat pump applications where a 4-ton indoor air handler is required. The 1-piece configuration simplifies placement in utility closets, attic platforms, garages, and mechanical rooms where clearance allows for the unit's overall dimensions of 55.75 inches tall, 21.5 inches wide, and 22 inches deep. Licensed HVAC contractors typically pair this unit with a matched outdoor condensing unit or heat pump to form a complete split system.

Key Features

• ECM motor for reduced operating noise and lower energy consumption versus standard PSC motors
• Factory-installed TXV eliminates field metering-device installation
• Aluminum alloy tube and fin coil construction for corrosion resistance and heat transfer efficiency
• 1-piece cabinet design for straightforward placement and reduced installation complexity
• Limited 10-year entire appliance warranty with registration; limited 5-year without registration
• Gray cabinet finish suited for utility and mechanical room environments

Compatibility

Designed as an OEM-style 4-ton ECM air handling unit for use in residential split-system cooling and heat pump configurations. Consult system design documentation and manufacturer specifications to confirm matched outdoor unit compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect and lock out all electrical power before servicing or connecting the unit. Refrigerant line connections require proper brazing, leak testing, and system evacuation per EPA Section 608 requirements. Verify that the installation site provides adequate clearances on all sides as specified in the product installation manual before setting the unit.

Technical Specifications

• Product Type: Air Handling Unit
• Tonnage: 4 Ton
• Configuration: 1-Piece
• Motor Type: ECM
• Overall Height: 55.75 inches
• Overall Width: 21.5 inches
• Overall Depth: 22 inches
• Net Weight: 176 pounds
• Shipping Weight: 186 pounds
• Color: Gray
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: nam48e1ta4
