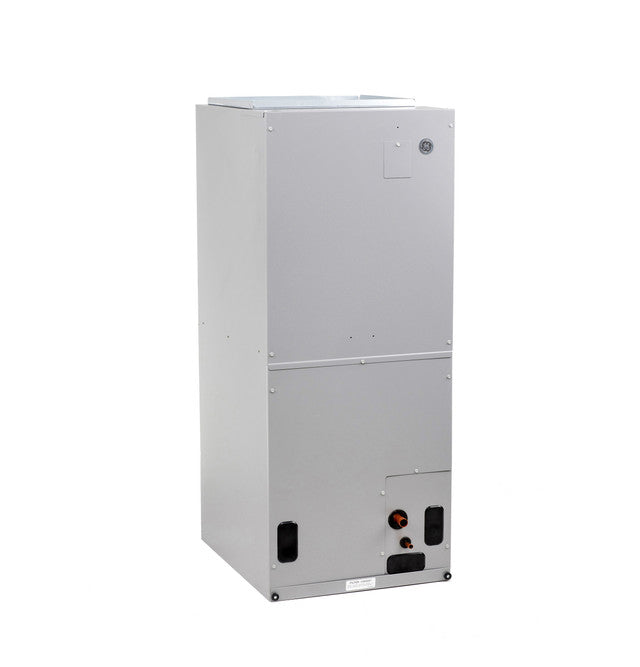

General Electric nam36v1ta4 Variable Speed Air Handler 3 Ton

Product Description

The GENERAL ELECTRIC nam36v1ta4 is a 3-ton, 1-piece variable speed air handling unit designed for residential and light commercial forced-air HVAC systems. It features aluminum alloy tube and fin coils for efficient heat transfer and long-term corrosion resistance. The unit ships with a factory-installed TXV, eliminating field refrigerant metering device installation and reducing setup time. The variable speed ECM motor allows precise airflow control, improving system efficiency and reducing operating noise compared to single-speed alternatives. Licensed HVAC technicians handle installation and commissioning of this equipment.

This air handler is suited for split-system cooling and heat pump applications in residential and light commercial installations. The 1-piece configuration simplifies placement in utility closets, mechanical rooms, and attic or basement installations where a compact footprint is required. The factory-installed TXV pairs directly with a matched outdoor condensing unit or heat pump, making it appropriate for new construction and retrofit projects.

Key Features

• Variable speed ECM motor for quiet, efficient airflow modulation
• Aluminum alloy tube and fin coil construction for durability and heat transfer efficiency
• Factory-installed TXV eliminates field metering device installation
• 1-piece configuration for straightforward placement in mechanical spaces
• 3-ton nominal capacity suitable for residential and light commercial loads
• Limited 10-year parts warranty on entire appliance with registration

Compatibility

Designed as an OEM-style variable speed air handling unit for use in split-system or heat pump configurations requiring a 3-ton nominal capacity indoor unit.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect and lock out all electrical power before handling the unit or connecting refrigerant lines. The factory-installed TXV must be matched to the outdoor unit refrigerant type and operating pressures. Verify condensate drain routing and clearances meet local code requirements before startup.

Technical Specifications

• Product Type: Air Handling Unit
• Configuration: 1-Piece
• Tonnage: 3 Ton
• Motor Type: Variable Speed
• Coil Material: Aluminum Alloy Tube and Fin
• Metering Device: Factory-Installed TXV
• Color: Gray
• Overall Height: 54.375 inches
• Overall Width: 21.5 inches
• Overall Depth: 22 inches
• Net Weight: 153 pounds
• Shipping Weight: 163 pounds
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: nam36v1ta4
