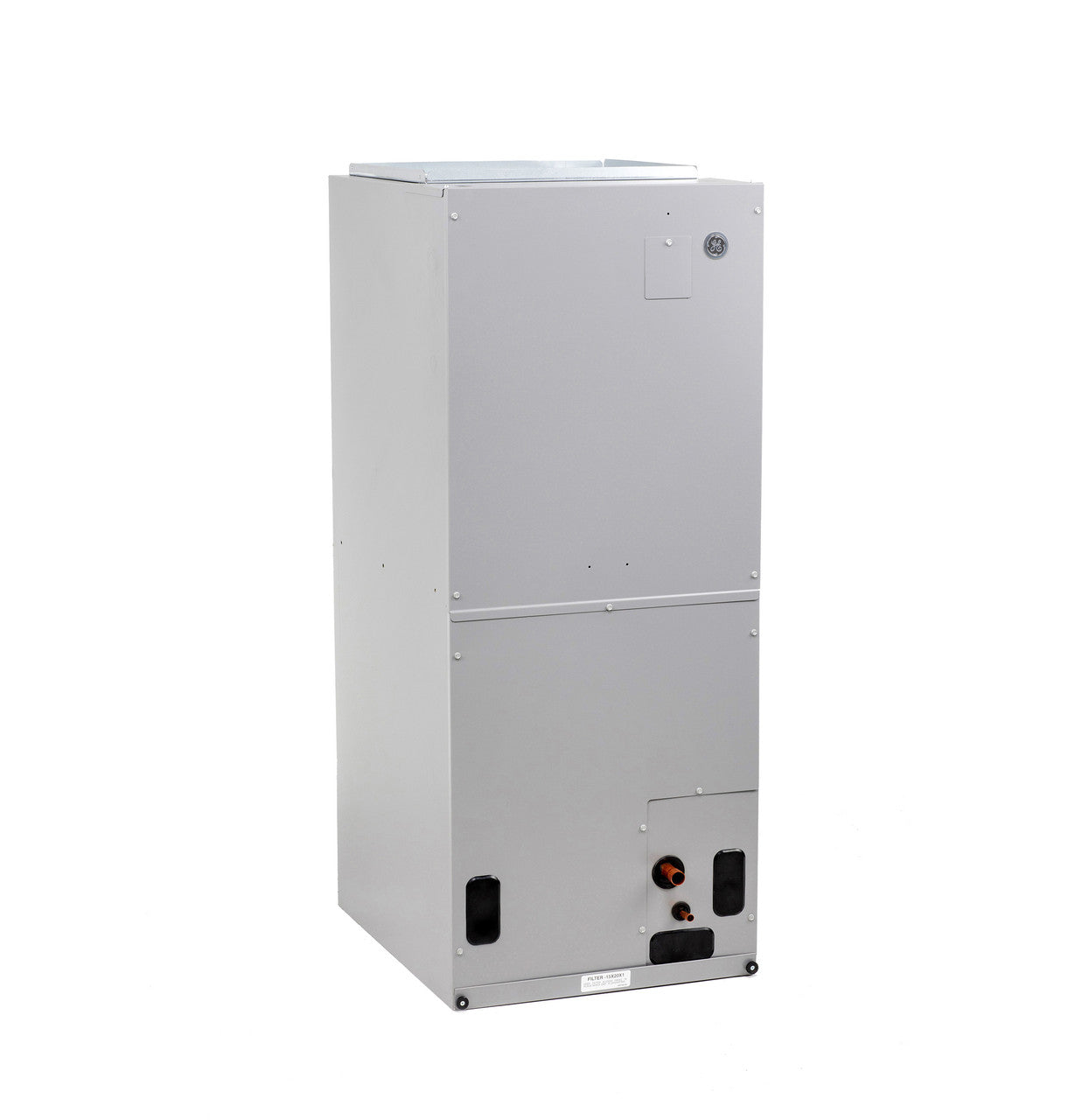

General Electric nam24e1ta4 Air Handling Unit 2 Ton Ecm

Product Description

The GENERAL ELECTRIC nam24e1ta4 is a 2-ton, 1-piece air handling unit built for residential split-system cooling and heat pump applications. It runs on an Electronically Commutated Motor (ECM), which delivers variable-speed airflow and lower operating noise compared to standard PSC motors. The unit ships with a factory-installed Thermostatic Expansion Valve (TXV) for precise refrigerant metering. Coil construction uses aluminum alloy tube and fin, offering solid heat transfer and corrosion resistance in typical indoor environments. At 117 pounds net weight, this is a full-size cabinet unit intended for professional installation.

This air handler is suited for residential installations where a compact 1-piece cabinet is required. The 1-piece configuration simplifies rough-in and reduces the number of field connections compared to modular or multi-piece designs. The ECM motor makes this unit compatible with variable-speed system controls and supports better dehumidification performance in humid climates. Licensed HVAC technicians handling split-system changeouts or new construction installs will find the factory-installed TXV eliminates one common field task.

Key Features

• ECM motor for variable-speed airflow and reduced operating noise
• Factory-installed TXV for precise, reliable refrigerant metering out of the box
• Aluminum alloy tube and fin coil construction for durable heat transfer performance
• 1-piece cabinet design simplifies installation and reduces field connections
• Limited 10-year parts warranty on entire appliance with registration; limited 5-year without
• Gray cabinet finish; compact footprint at 18.5 inches wide and 46.25 inches tall

Compatibility

Designed as an OEM-style 2-ton ECM air handling unit for use in residential split-system or heat pump configurations. No specific compatible outdoor unit model numbers were provided in the product data. Verify system match by tonnage, voltage, and refrigerant type before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer written warranty requirements. Disconnect and lock out all electrical power before handling or connecting any components. The factory-installed TXV is pre-set for the rated tonnage and should not be adjusted in the field without confirming system operating conditions. Verify refrigerant line sizing, drain line slope, and electrical supply specifications against the unit nameplate before startup.

Technical Specifications

• Product Type: Air Handling Unit
• Tonnage: 2 Ton
• Configuration: 1-Piece
• Motor Type: ECM
• Coil Construction: Aluminum Alloy Tube and Fin
• Overall Height: 46.25 inches
• Overall Width: 18.5 inches
• Overall Depth: 22 inches
• Net Weight: 117 pounds
• Approximate Shipping Weight: 127 pounds
• Color: Gray
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: nam24e1ta4
