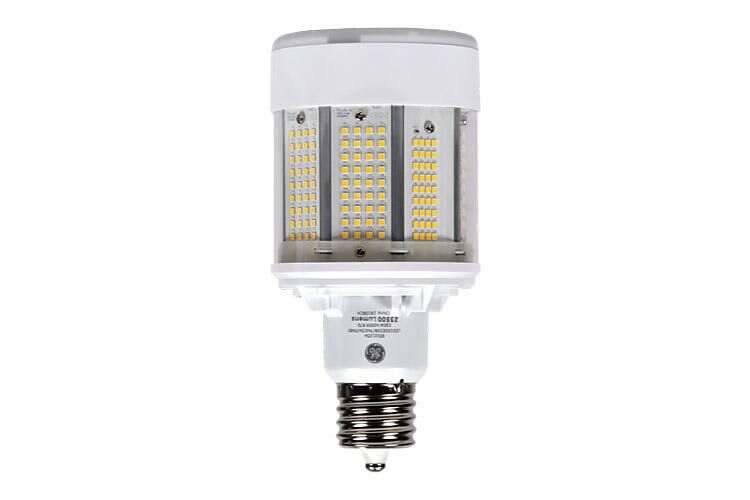

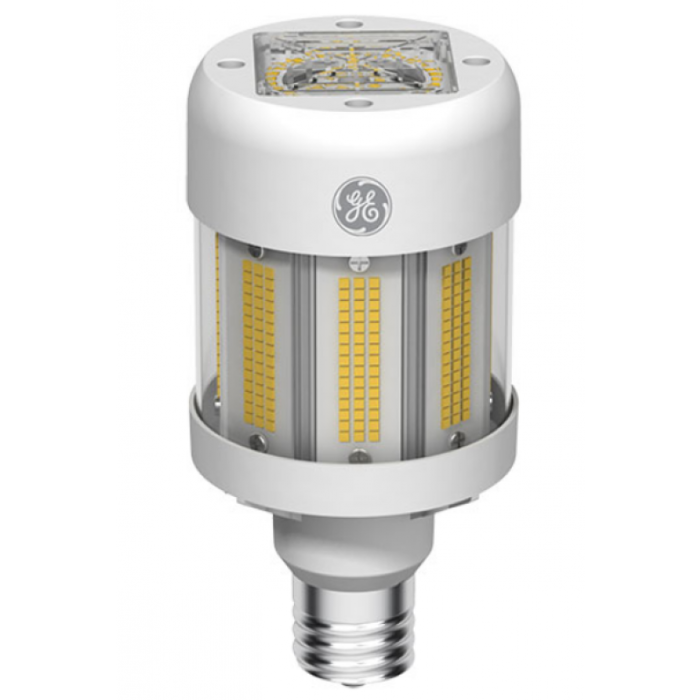

General Electric LED150ED28/750 LED HID Replacement Lamp

Product Description

The General Electric LED150ED28/750 is a 150W LED lamp that directly replaces 400W HID lamps. This Type B ballast bypass lamp is designed for direct wiring, which helps lower energy use and removes ballast compatibility issues.

• Type B ballast bypass design for easy direct wiring.
• Rated for up to fifty thousand hours of operation, backed by a five-year limited warranty.
• Includes tether kit and in-line fuse to provide surge protection.

Product Highlights

The lamp is suitable for damp locations and can be used in enclosed fixtures. Its EX39 mogul base and ED28 bulb shape align with ANSI standard dimensions, making it compatible with existing setups.

Product Information

Standard Information

• Brand: General Electric
• Manufacturer Part #: LED150ED28/750

Technical Specifications

• Bulb Shape: ED28
• Bulb Base Type: EX39
• Input Voltage: 120-277V
• Power Consumption: 150 W
• Wattage Replacement: 400W
• Operating Life: 50,000 hours
• Dimmable: No
• Operating Temp: -40 to 50 °C
• Warranty: 5 Year
• Luminous Efficacy: 157 LPW
• Lumens: 23,500 lm
• CCT: 5000 K
• CRI: 70
• Beam Angle: Omnidirectional
• MOL: 8.3 inches
• Diameter: 4.1 inches
• Safety Certifications: cULus
• Energy Certifications: Yes, DLC Listed
• Location Ratings: Damp Rated
• Standard Pack Quantity: 3
• Rated for Enclosed Fixtures: Yes
• Maximum Temp: 50°C
• Minimum Starting Temp: -40°C
• Case Quantity: 3
• UPC: 043168226134
