General Electric JP5030SJSS 30 inch Built-In Touch Control Electric Cooktop 3100W

Product Description

The General Electric JP5030SJSS electric cooktop features four radiant cooking elements on a sleek glass surface for quick and even cooking. Digital Touch Controls provide accurate heating and an easy-to-clean surface. It includes a 3,100-watt Power Boil Dual-Ring Element for rapid boiling and SyncBurners to evenly heat large cookware. A 6-inch element offers a Keep Warm setting, while a Melt setting handles delicate foods. Control lock capability and hot surface indicator lights enhance safety.

• Four radiant cooking elements on a sleek glass surface
• Digital Touch Controls for accurate heating and easy cleaning
• Power Boil Dual-Ring Element (3,100-watt) for rapid boiling

Product Highlights

Built-in Wifi, Powered by SmartHQ™ for real-time feedback and optimized performance.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: JP5030SJSS
• Country of Origin: USA

Technical Specifications

• Color Appearance: Stainless Steel on Black
• Frame Color / Material: Stainless Steel
• Frameless: Yes
• Control Location: Front Center
• Control Type: Electronic Touch
• Cooktop Burner Type: 4 Ribbon Smoothtop

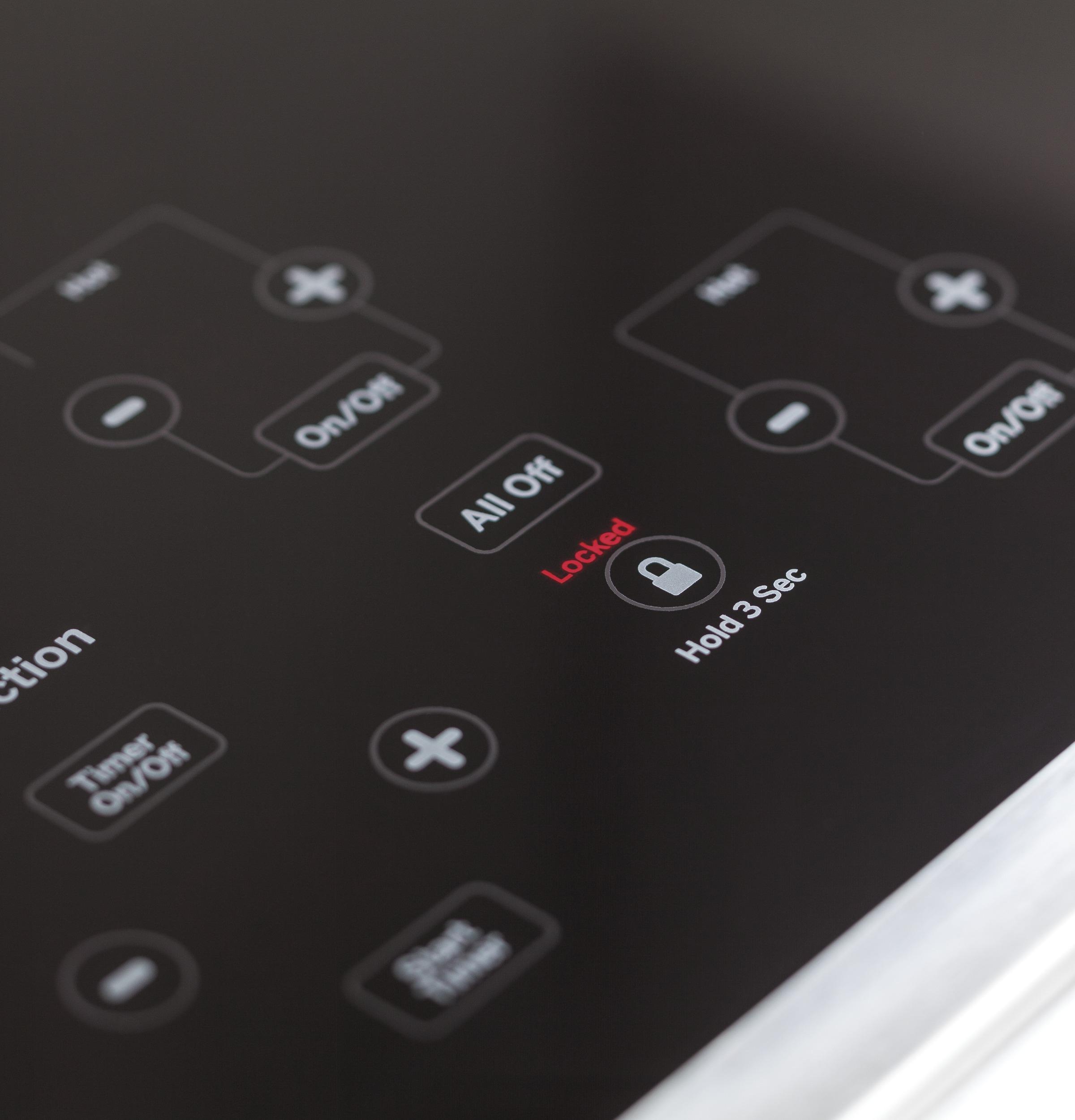

• Cooktop Control Features: All-Off Control, Control Lock Capability, Keep-Warm Setting, Kitchen timer, Melt Setting, Sync-Burners Capability
• Cooktop Surface: Black Ceramic Glass with Stainless Steel Trim
• Cooktop Type: Radiant Smoothtop
• Element - Left Front: 7" 1500W
• Element - Left Rear: 7" 1500W
• Element - Right Front: 9"/6" 3100W Power Boil
• Element - Right Rear: 6" 1200W
• Fuel Type: Electric
• Indicator Lights: 4 Hot Surface, Surface Element "ON", Setting Level Indicators (Red)
• Product Type: Cooktop
• Max. Connected Load at 208V: 5.5 kW
• Max. Connected Load at 240V: 7.3 kW
• Max. Current Draw at 208V: 26.4 Amps
• Max. Current Draw at 240V: 30.4 Amps
• Recommended Circuit Breaker at 208V: 30 Amps
• Recommended Circuit Breaker at 240V: 40 Amps
• Cutout Depth: 19.625 in
• Cutout Width: 28.5 in
• Cabinet Width: 30 in
• Cooktop Size: 30 in
• Filler Trim Kit: JXTR32B (not included)
• Star-K Certified: No
• Input Voltage: 240/208 Volts
• ADA Compliant: Yes
• Modules Required: No
• Type: Drop-In
• Fingerprint Resistant: No
• Griddle Accessory: JXGRIDL1
• WiFi Connectivity: Yes
• Downdraft Venting: No
• Sabbath Mode: No
• Induction Technology: No
• Grill Function: No
