Product Description

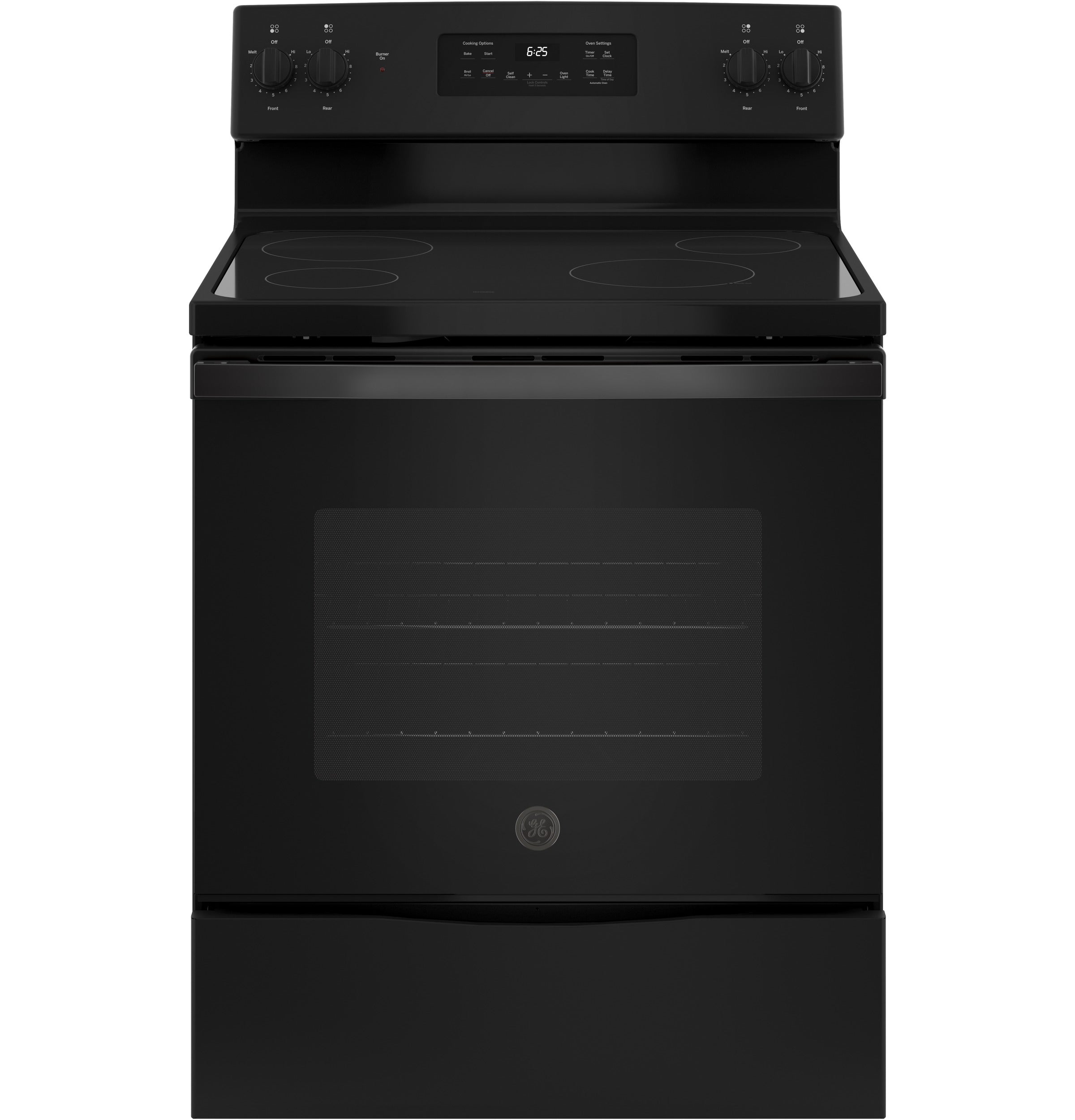

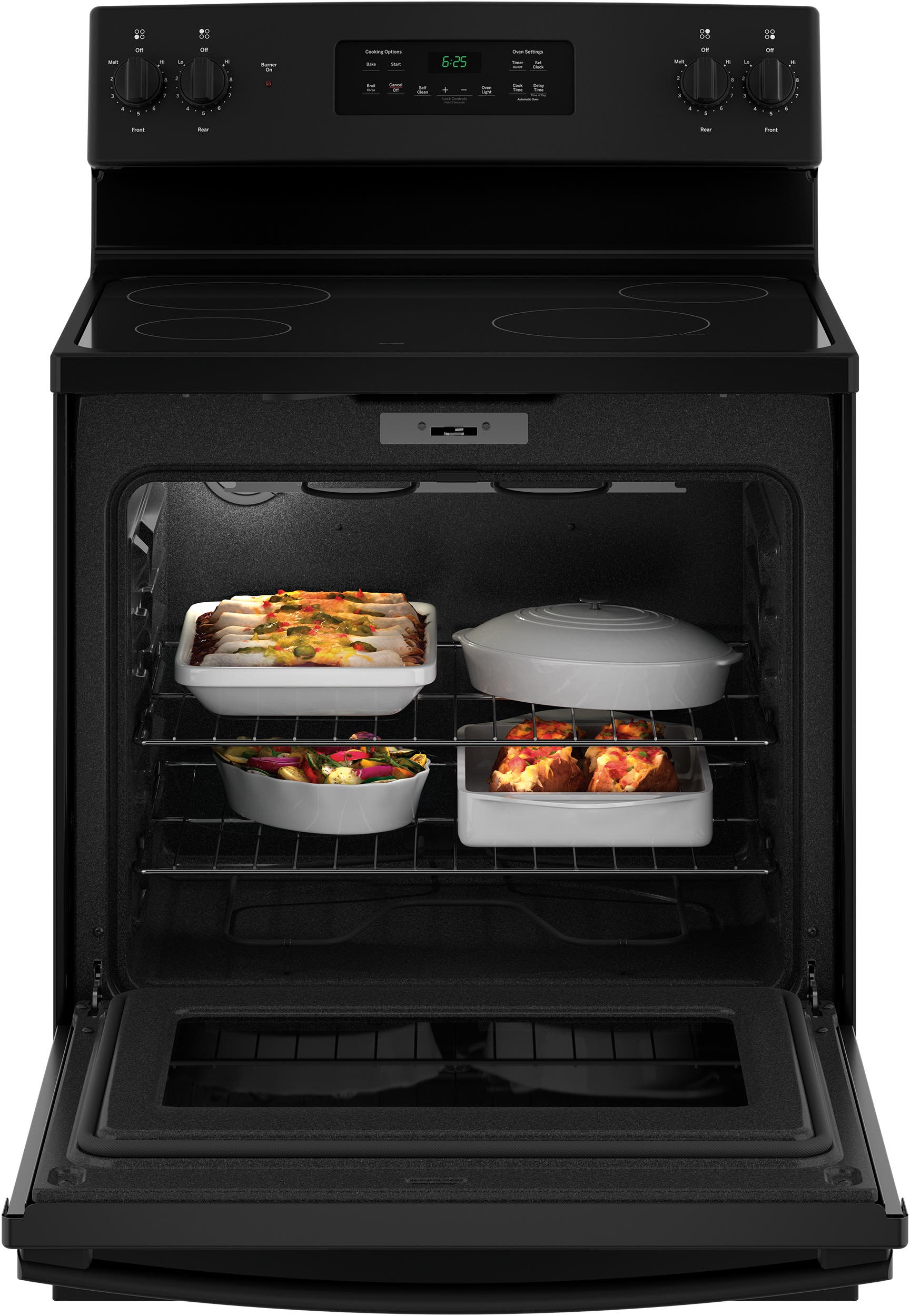

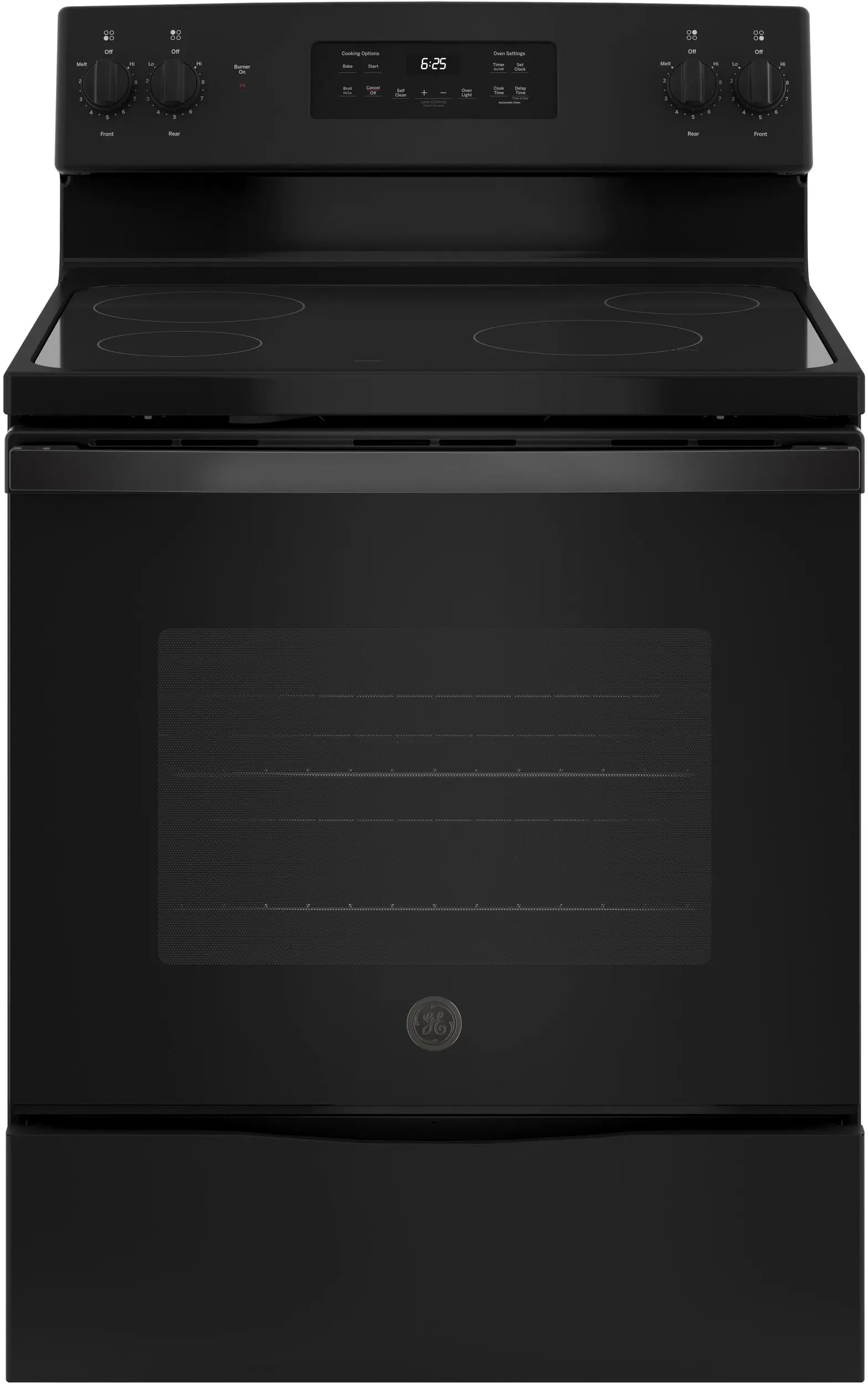

The General Electric JB625DKBB electric range features a 5.3 cu. ft. oven capacity and a radiant smoothtop cooktop. It operates at 240V with a 10.4KW rating, offering a powerful 2,500-watt 8-inch Power Boil element for rapid heating. The self-clean oven simplifies maintenance, while the dual-element bake system ensures even heat distribution for consistent cooking results. This free-standing unit includes a removable full-width storage drawer.
- Equipped with an 8-inch 2,500-watt Power Boil element for rapid heating.
- Features a self-clean oven, eliminating the need for manual scrubbing.
- Utilizes a dual-element bake system for uniform heat distribution and consistent cooking.
Product Highlights
5.3 cu. ft. oven capacity, ceramic glass cooktop, 2,500W Power Boil element, self-clean oven, and storage drawer.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: JB625DKBB
Technical Specifications
-
Model: JB625DKBB
-
Manufactured Date Range: April, 2016 - October, 2023
-
Capacity: 5.3 Cu. Ft.
-
Cleaning Type: Self-Clean
-
Control Type: Electronic touchpad
-
Drawer Type: Storage
-

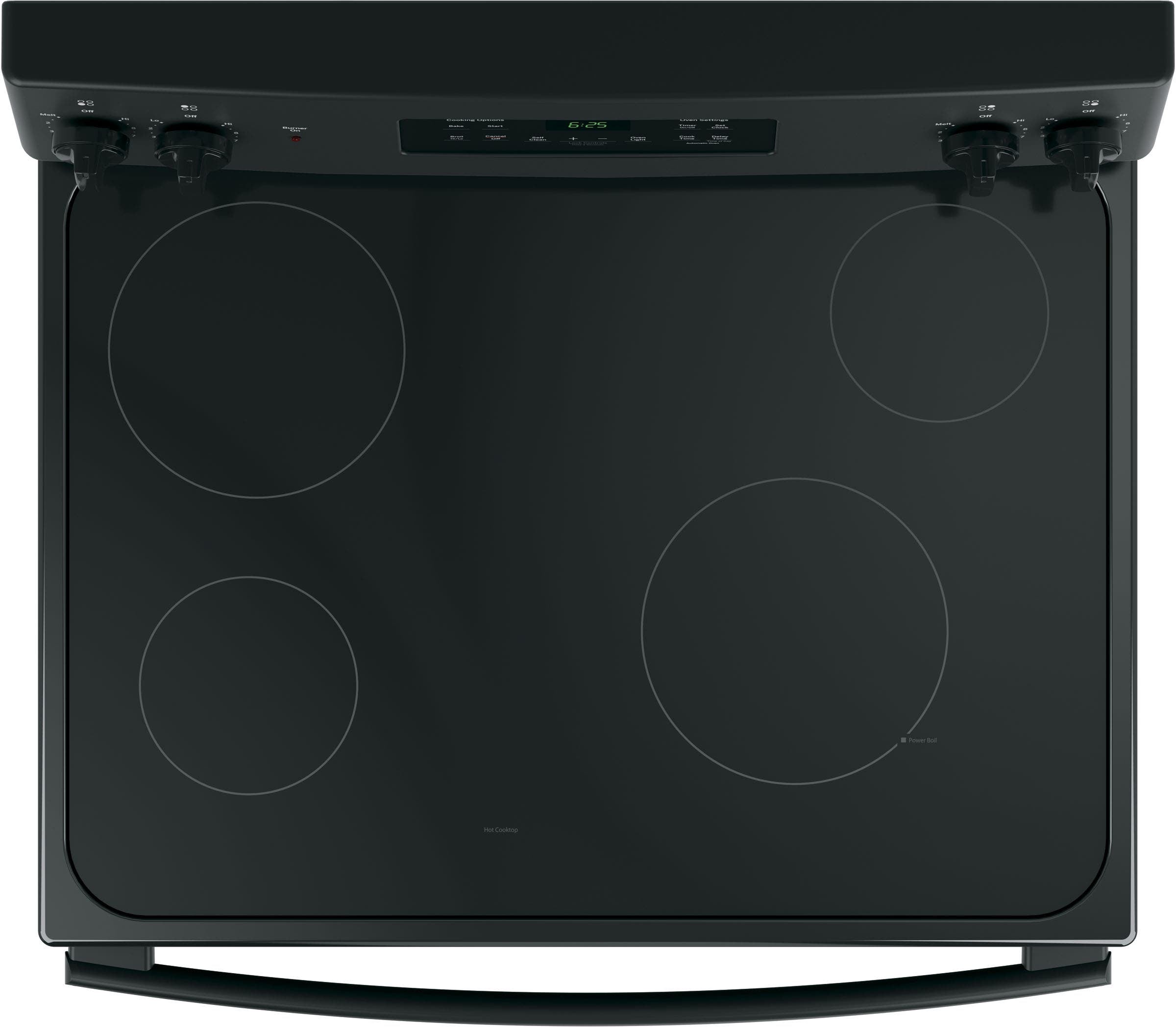

Cooktop Type: Radiant Smoothtop
-
Voltage: 240V
-
Cooking Technology: Traditional
-
Cabinet Width: 30 inches
-
Product Type: Free-Standing Single Oven Range
-
Convection: No
-
Fuel Type: Electric
-
Control Knobs: Gloss Black
-
Handle: Color-Matched
-
Side Panels: Textured Steel
-
Oven Door Features: Big View Oven Window, Glass Door
-
KW Rating at 208V: 7.8kW
-
Bake Wattage: 2585W
-
KW Rating at 240V: 10.4kW
-
Broiler Wattage: 3410W
-
Amp Rating at 208V: 40A
-
Amp Rating at 240V: 40A
-
Height to Cooking Surface: 35.75 - 36.5 inches
-
Depth Without Handle: 25.5 inches
-
Overall Depth: 28.0 inches
-
Depth with Door Open: 47.875 inches
-
Oven Interior Dimensions (W x H x D): 24.125 x 19.5 x 19.375 inches
-
Overall Width: 29.875 inches
-
Overall Height: 47.0 inches
-
Hot Surface Indicator Lights: 1
-
Element - Left Front: 6 inch 1200W
-

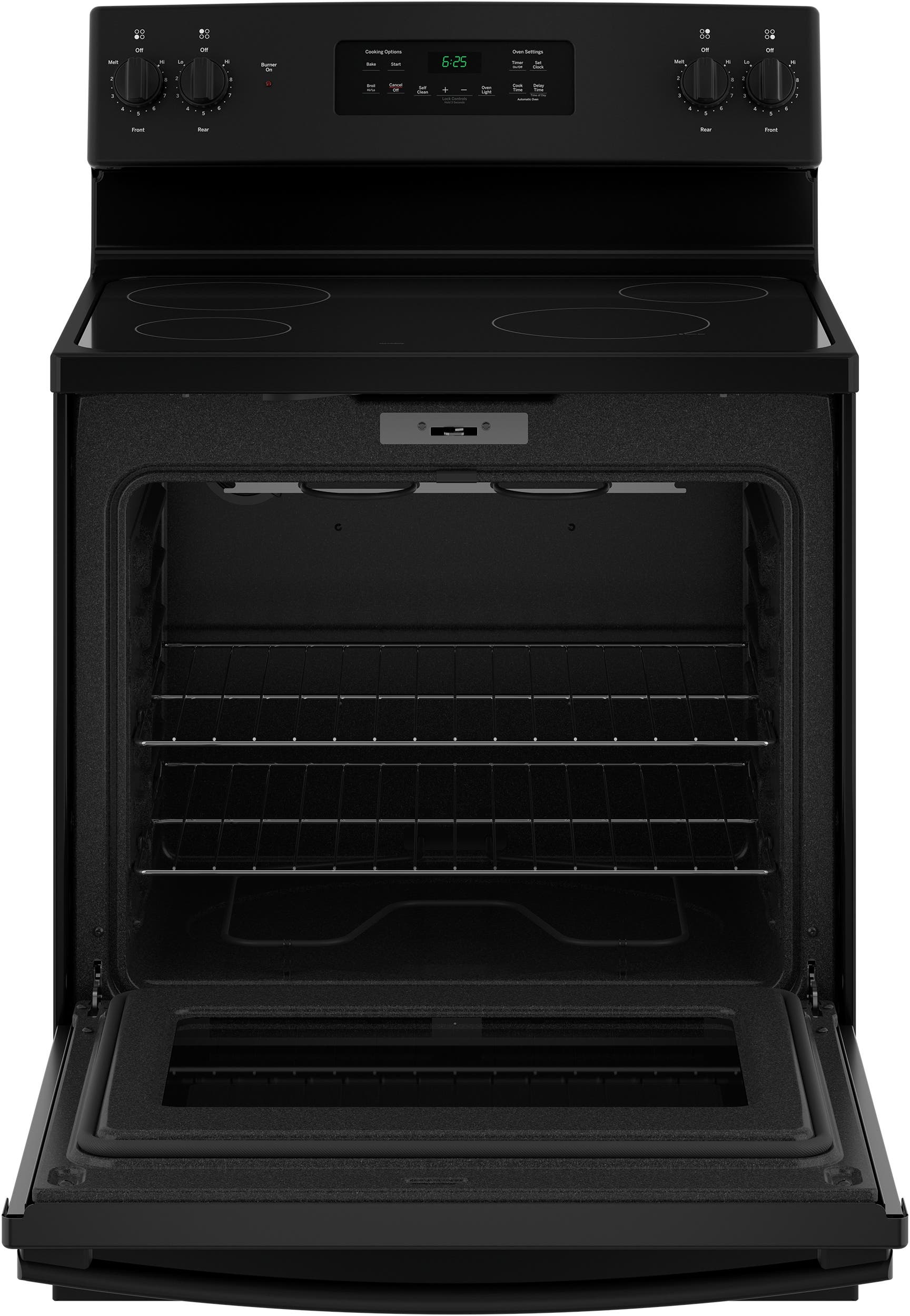

Oven Rack Features: 2 Oven Racks, 6 Rack Positions
-
Melt Setting: Yes
-
Oven Elements: 4-Pass Bake Element, 4-Pass Broil Element
-
Cooktop Surface Material: Black Ceramic Glass, One-Piece Upswept
-
Configuration: Range with Storage Drawer
-
Control Type Details: Digital Temperature Display, Electronic Touchpads
-
Element - Right Front: 8 inch 2500W Power Boil
-
Oven Control Features: Audible Preheat Signal, Auto Oven Shut-Off with Override, Auto Self Clean, Certified Sabbath Mode, Control Lock Capability, Delay Bake Option (Time Bake), Delay Clean Option, Electronic Clock & Kitchen Timer, Hi / Low Broil, Oven ON Light, Self-Clean Cool Down Time Display, Self-Cleaning Cycling Light
-
Interior Oven Light: 1 Incandescent
-
Control Location: Backsplash
-
Element - Right Rear: 6 inch 1200W
-
Storage Drawer Features: Removable Full-Width
-
Heating Element ON Indicator Light: 1
-
Element - Left Rear: 8 inch 2000W
-
Style: Freestanding
-
Number of Burners: 4
-
Griddle: No
-
Grill: No
-
ADA Compliant: No
-
Star-K Certified: No
-
Broiler Element Location: Top
-
Broiler Pan Included: No
-
Removable Door: Yes
-
Temperature Probe: No
-
Power Burner: Yes
-
Simmer Burner: No
-
Cooktop Control Type: Knobs
-
Downdraft Ventilation: No
-
French Top: No
-
Induction: No
-
Modules Required: No
-
Double Oven: No
-
Fingerprint Resistant: No
-
Power Type: Corded Electric
