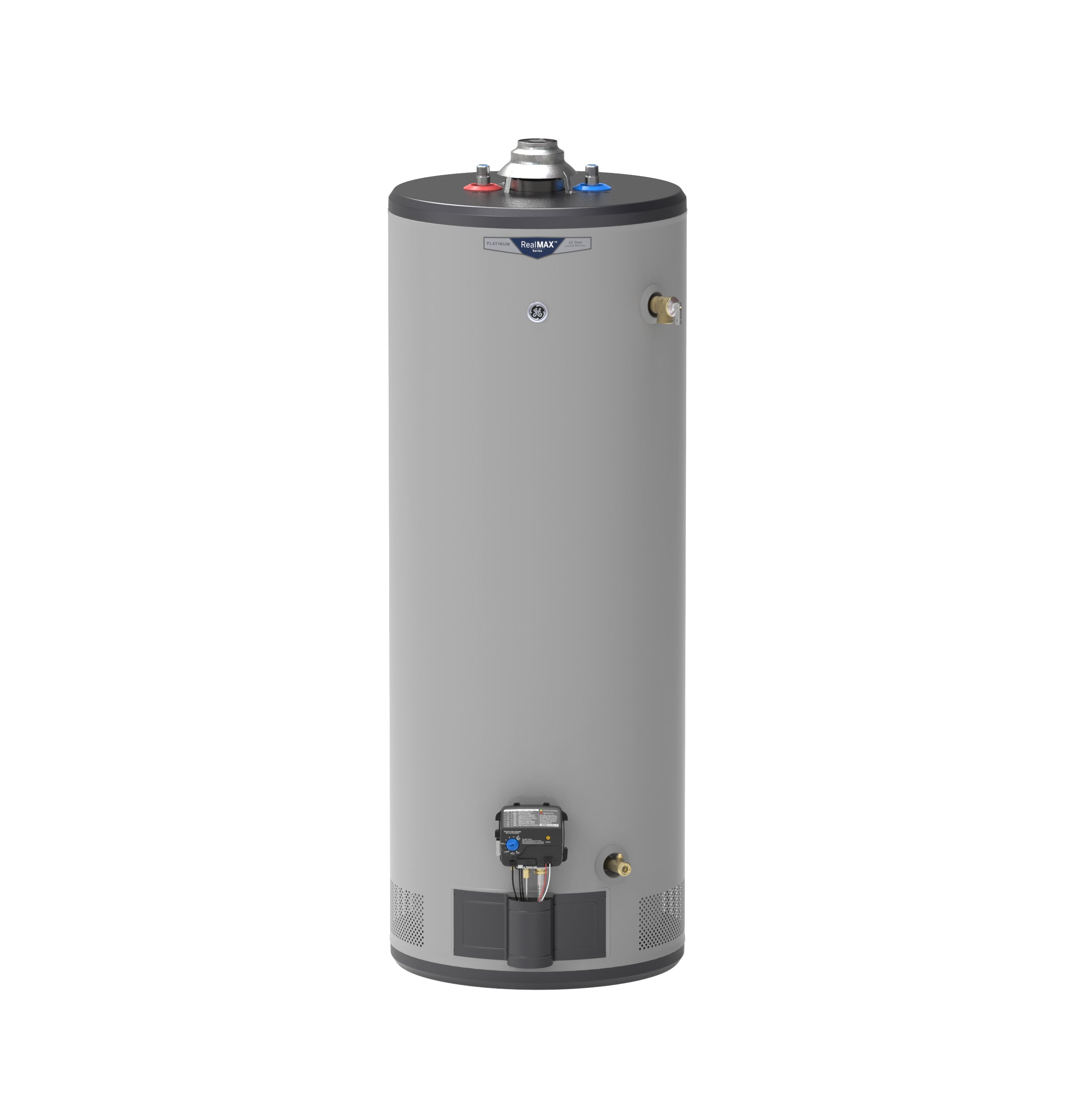

General Electric GP50T12BXR RealMAX Platinum 50-Gallon Tall Liquid Propane Atmospheric Water Heater

Product Description

The GENERAL ELECTRIC GP50T12BXR RealMAX Platinum water heater provides hot water for households of 3 to 5+ people. Replenish hot water quickly with a max-performance 36K BTU burner. The durable design offers long-lasting protection against corrosion, extending the life of the water heater tank. It monitors the surrounding air and automatically shuts off if abnormal temperatures are detected.

• Provides hot water for the whole family of 3 to 5+ persons.
• Quickly replenish hot water with a max-performance 40K burner.
• Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank.

Product Highlights

This 50-gallon water heater features a self-diagnostic LED indicator, brass drain valve, and easy standard water and gas connections for straightforward replacement.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GP50T12BXR

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 50 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• Fuel Type: Propane (LP)
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .64
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 36
• First Hour Delivery GPH: 82 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Overall Depth: 22 in
• Overall Height: 61.375 in
• Overall Width: 22 in
• Product Diameter: 22 in
• Product Height (to top of unit): 58 in
• Product Height (to top of water inlet/outlet connections): 59.5 in
• Vent Size: 2" or 3" Type B Vent
• Altitude: 10,100 '
• BTU Rating: 36,000 BTU/hr
• Capacity: 50 gallons
• Color: Gray
• Connection Type: 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection)
• Dimensions: 61-3/8" H x 22" W x 22" D
• Domestic/Import: Domestic
• Efficiency: 64% (UEF), 78% (Recovery Efficiency)
• Energy Factor: 0.64 UEF
• Energy Star Compliant: No
• First Hour Delivery: 82 GPH
• Ignition System: Standing Pilot
• Ignition Type: Standing Pilot
• Lead-Free/Contains Lead: Lead-Free
• Material: Steel (Tank), Magnesium (Anode Rod)
• Model: GP50T12BXR
• Mounting Type: Floor Mount
• Recovery Efficiency: 78 %
• Recovery Rate: 37.4 GPH (At 90°F Rise)
• Series: RealMAX Platinum
• Temperature Rating: 45-160 °F (Adjustable Setting)
• Vent Diameter: 3 "
• Vent Type: Atmospheric
• Heating Capacity: 36000 BTU/h
• Product Dimensions: 61.38-in X 22-in X 22-in
