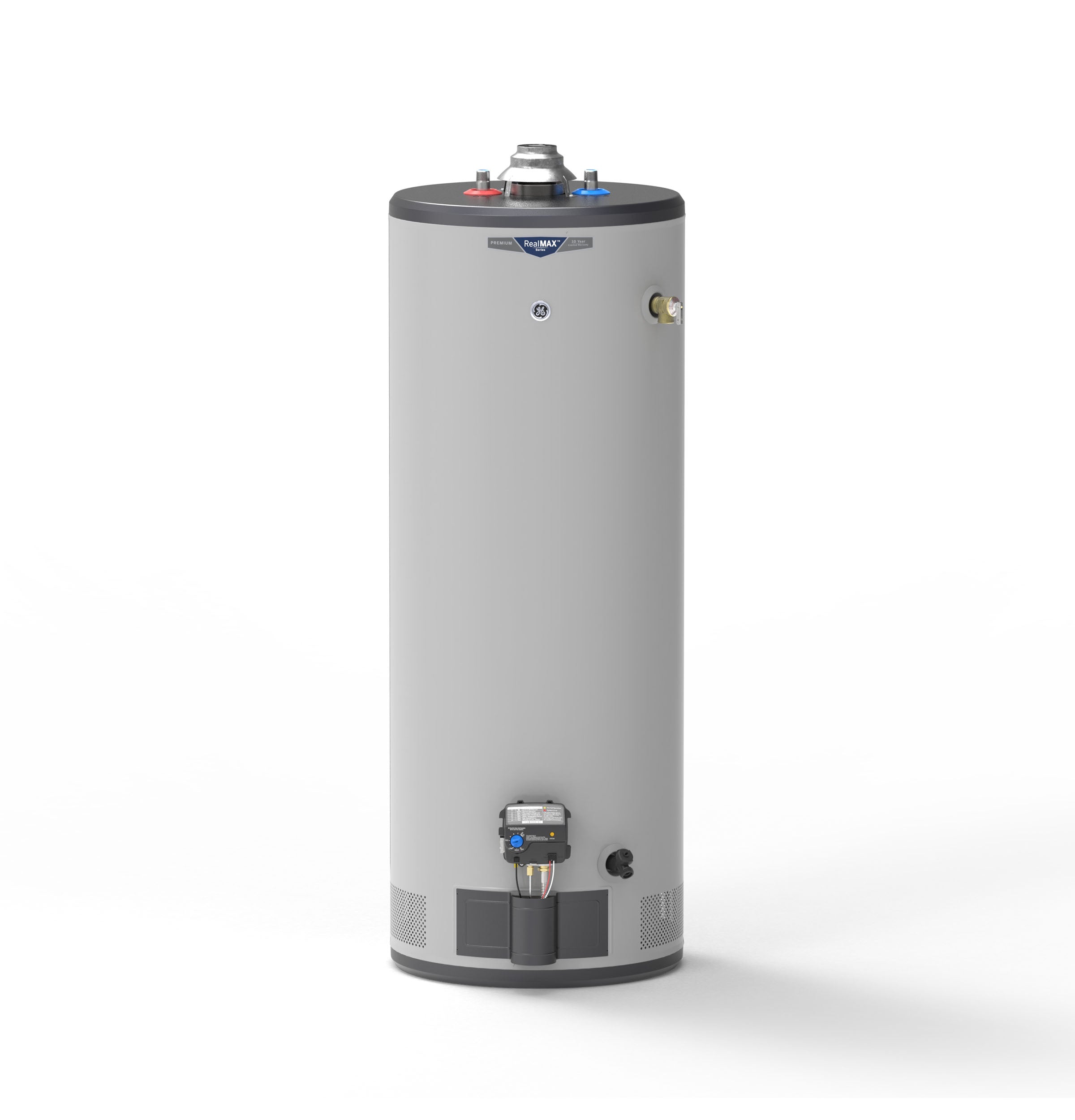

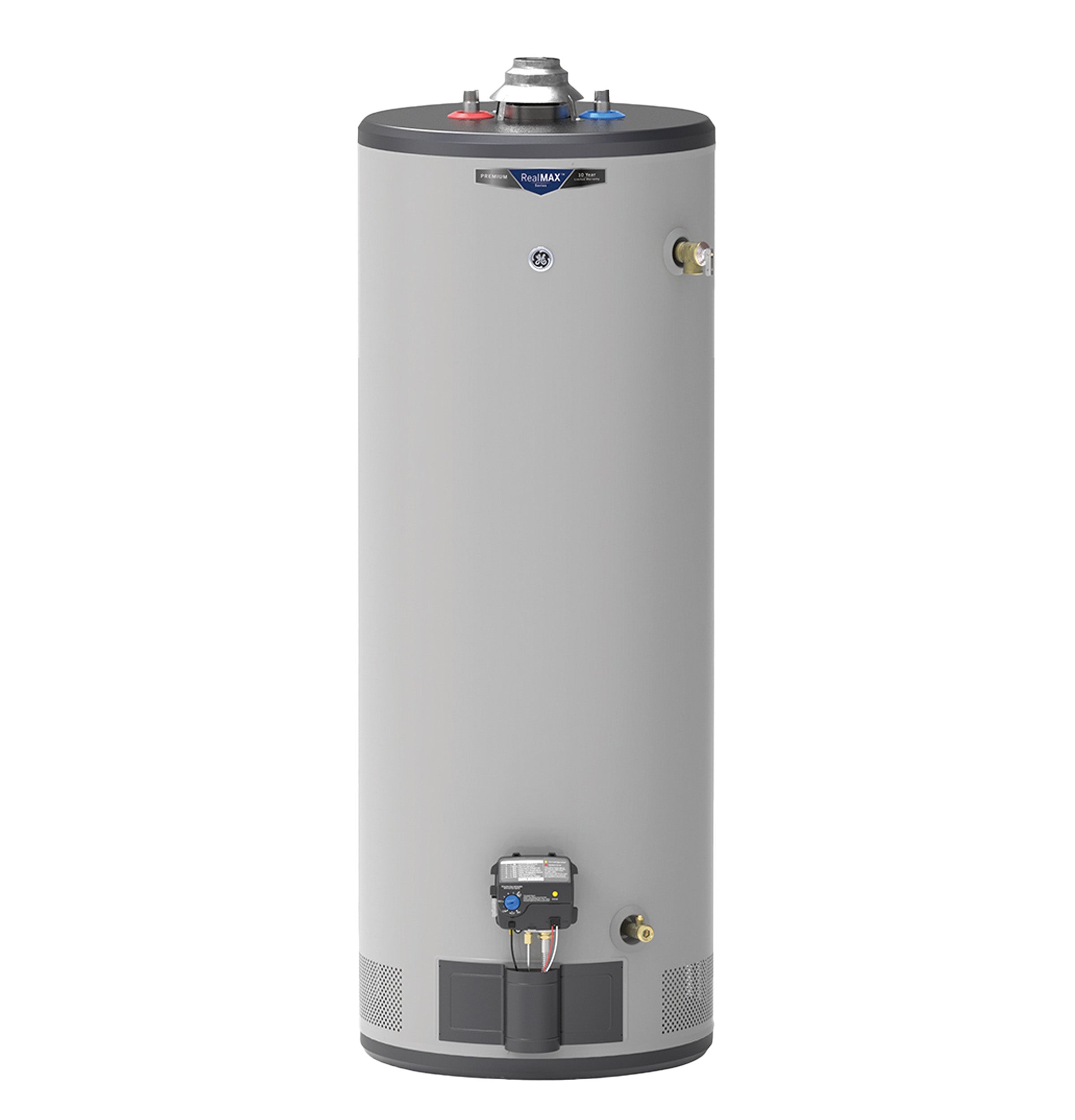

General Electric GP50T10BXR RealMAX Premium 50-Gallon Tall Liquid Propane Atmospheric Water Heater

Product Description

The GENERAL ELECTRIC GP50T10BXR RealMAX Premium 50-Gallon Tall Liquid Propane Atmospheric Water Heater provides hot water for a family of 3 to 5+ people. It features a 36K BTU burner for quickly replenishing hot water and a durable design with an anode rod for corrosion protection. The SmartShield Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected.

• Provides hot water for households of 3 to 5+ persons.
• Offers long-lasting protection against corrosion with an anode rod.
• Monitors gas system status via LED status indicator.

Product Highlights

This water heater is easy to install using standard water and gas connections

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GP50T10BXR
• Country of Origin: US

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 50 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• Fuel Type: Liquid Propane (LP)
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .64
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 36
• First Hour Delivery GPH: 82 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Overall Depth: 22 in
• Overall Height: 61.375 in
• Overall Width: 22 in
• Product Diameter: 22 in
• Product Height (to top of unit): 58 in
• Product Height (to top of water inlet/outlet connections): 59.5 in
• Vent Size: 2" or 3" Type B Vent
• Heating Capacity: 36000 BTU/h
• Rated Nominal Volume (Gallons): 50
• DOE Rated Storage Volume (Gallons): 50
• Energy Star: No
• Connectivity: Not WiFi Compatible
• Jacket Diameter (in.): 22
• BTU Input: 36000
• First Hour Delivery Rating (Gal.): 82
• Uniform Energy Factor (UEF): 0.64
• Recovery at 90°F Rise (GPH): 37.4
• Recovery Efficiency: 78%
• Vent Size (in.): 3"
• Water Connection Size (in.): 3/4" NPT
• Gas Connection Size (in.): 1/2"
• Tank Diameter (in.): 22 Inches
• Height Top of Connectors (in.): 59.5 Inches
• Height Top of Tank (in.): 58 Inches
• Height to top of vent cap (in.): 61.38 Inches
• Type: Tank
• Gas Type: LP Gas
• Gallon Size (Rated): 50
• Number of People per Household: 3-5 People
• Water Connection Size: 3/4 in. MNPT
• Tank Valve Size (T & P): 3/4 in. FNPT
• Minimum Temperature (F): 45
• Maximum Temperature (F): 160
• Temperature Pressure Relief Valve: Yes
• Control Type: Thermostat
• LED Status Indicator: Yes
