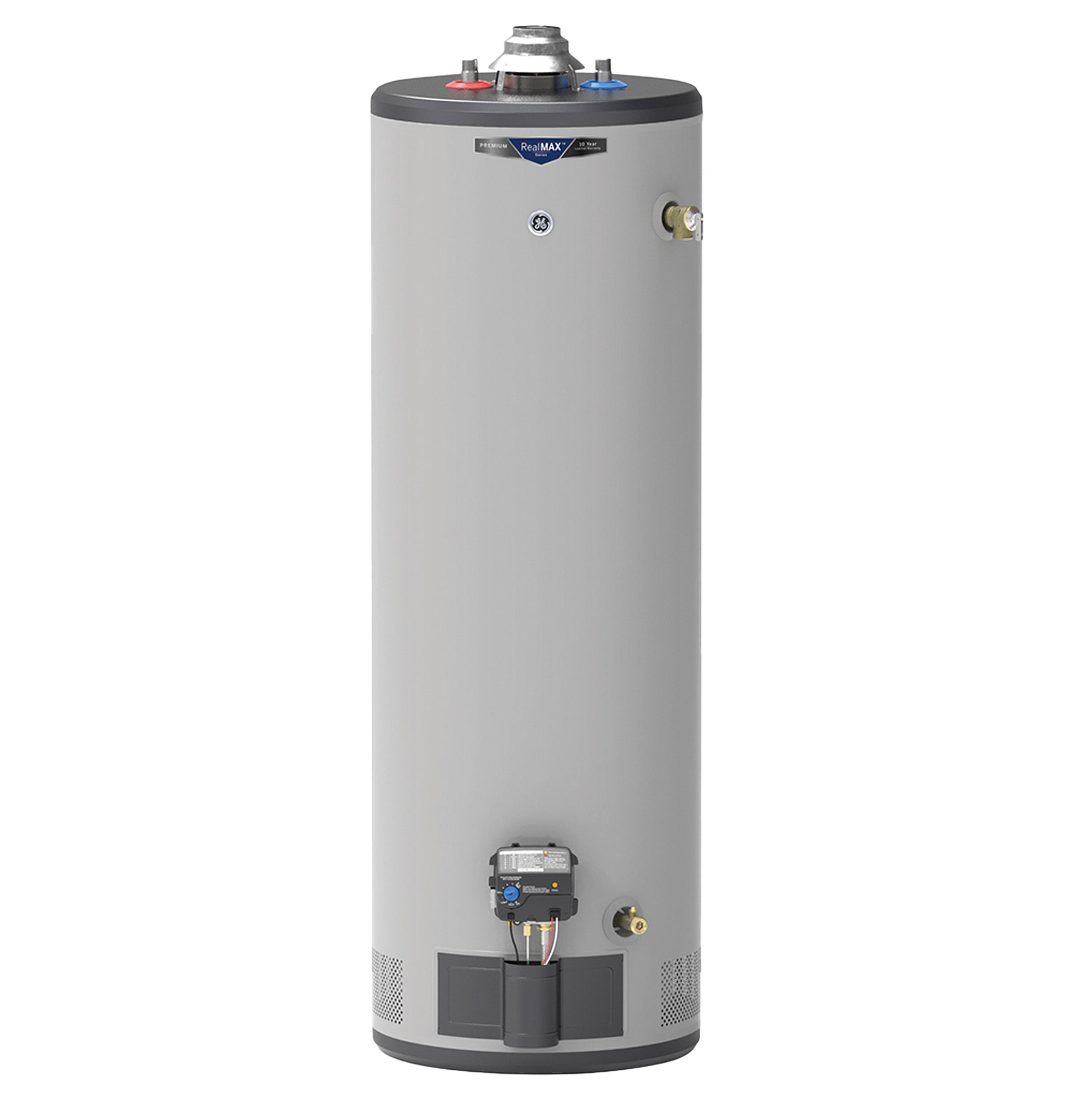

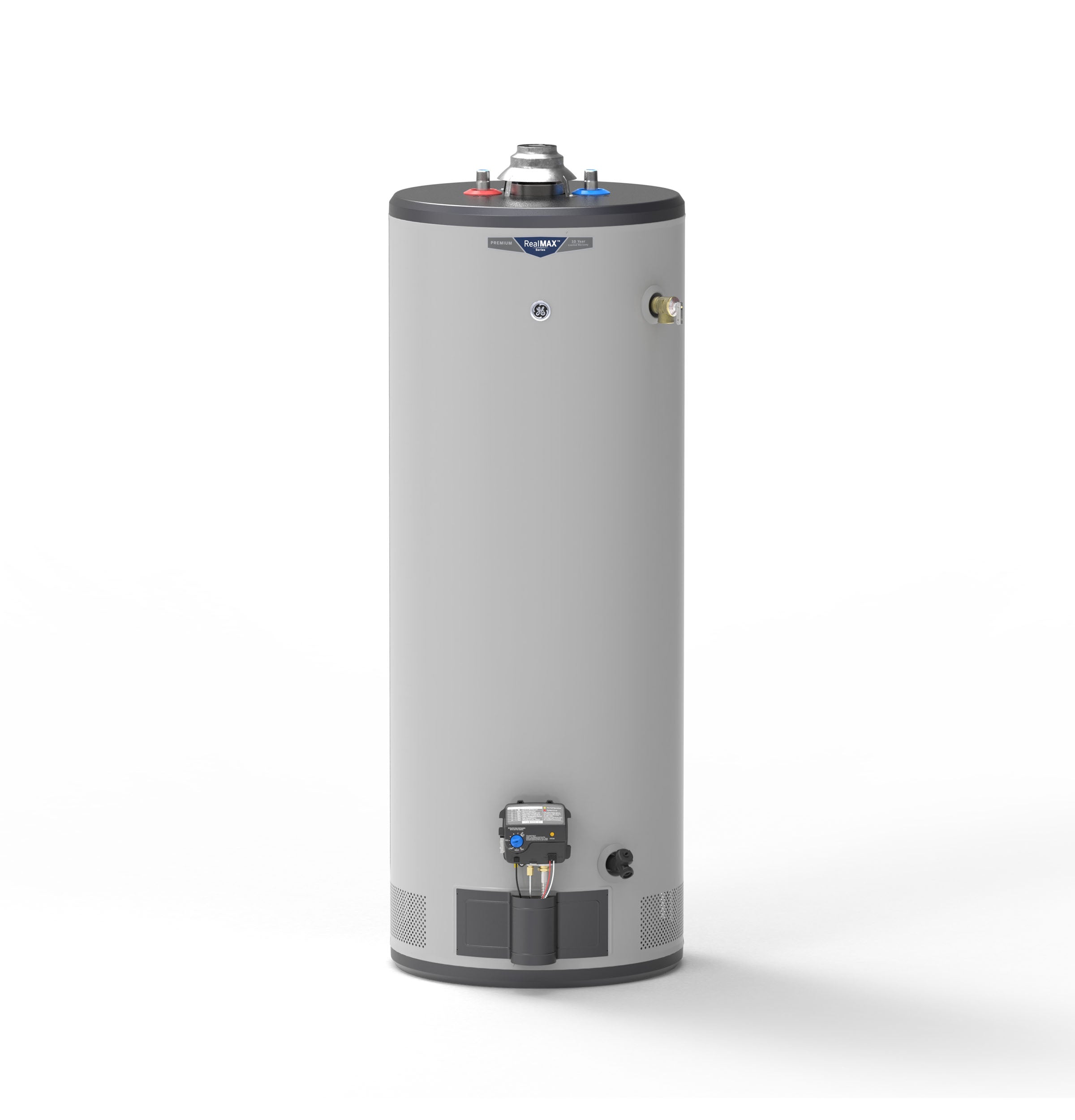

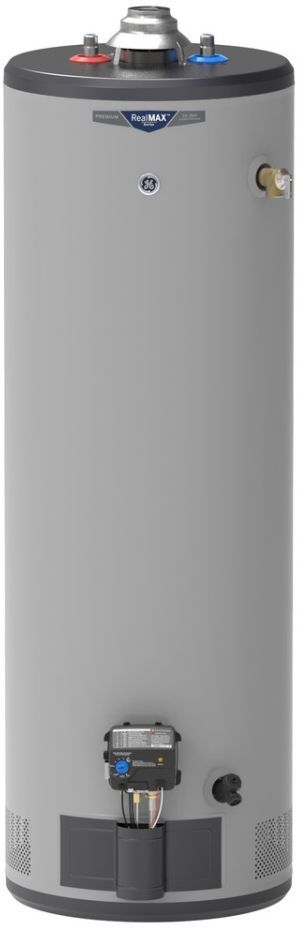

General Electric GP40T10BXR RealMAX Premium 40-Gallon Tall Liquid Propane Atmospheric Water Heater

Product Description

The GENERAL ELECTRIC GP40T10BXR RealMAX Premium water heater provides hot water for households of 2 to 4 persons. It features a max-performance 36K burner for quick hot water replenishment and a durable anode rod design for corrosion protection. The SmartShield Safety System monitors air temperature and automatically shuts off the unit if abnormal temperatures are detected. It also monitors gas system status via LED indicator.

• Provides hot water for 2 to 4 person households.
• Features a 36K BTU burner for quick hot water replenishment.
• Offers long-lasting protection against corrosion with an anode rod.

Product Highlights

This RealMAX Premium water heater has a SmartShield Safety System, self-diagnostic monitoring, and a brass drain valve for rust-proof construction. Easy to install with standard connections

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GP40T10BXR
• Country of Origin: America

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 40 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 2-5 People
• Fuel Type: Liquid Propane Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .64
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 36
• First Hour Delivery GPH: 83 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Net Weight: 140 lb
• Overall Depth: 20 in
• Overall Height: 61.875 in
• Overall Width: 20 in
• Product Diameter: 20 in
• Product Height (to top of unit): 58.5 in
• Product Height (to top of water inlet/outlet connections): 60 in
• Vent Size: 2" or 3" Type B Vent
• Rated Nominal Volume (Gallons): 40
• DOE Rated Storage Volume (Gallons): 40
• Energy Star: No
• Connectivity: Not WiFi Compatible
• BTU Input: 36000
• First Hour Delivery Rating (Gal.): 83
• Recovery at 90°F Rise (GPH): 37.4
• Recovery Efficiency: 78%
• Vent Size (in.): 3"
• Water Connection Size (in.): 3/4" NPT
• Gas Connection Size (in.): 1/2"
• Width (in.): 20
• Depth (in.): 20
• Height (in.): 61.88
• Outdoor Approved: No
• ADA Compliant: No
• Smart Compatible: No
• Wifi Capable: No
• Collection: RealMAX® Premium
• Product Weight (lbs.): 140
• Heating Capacity: 36000 BTU/h
• Product Dimensions: 61.88-in X 20-in X 20-in
• Capacity (gal.): 40
