General Electric GP40S08AYV RealMAX Choice 40-Gallon Short Liquid Propane Power Vent Water Heater

Product Description

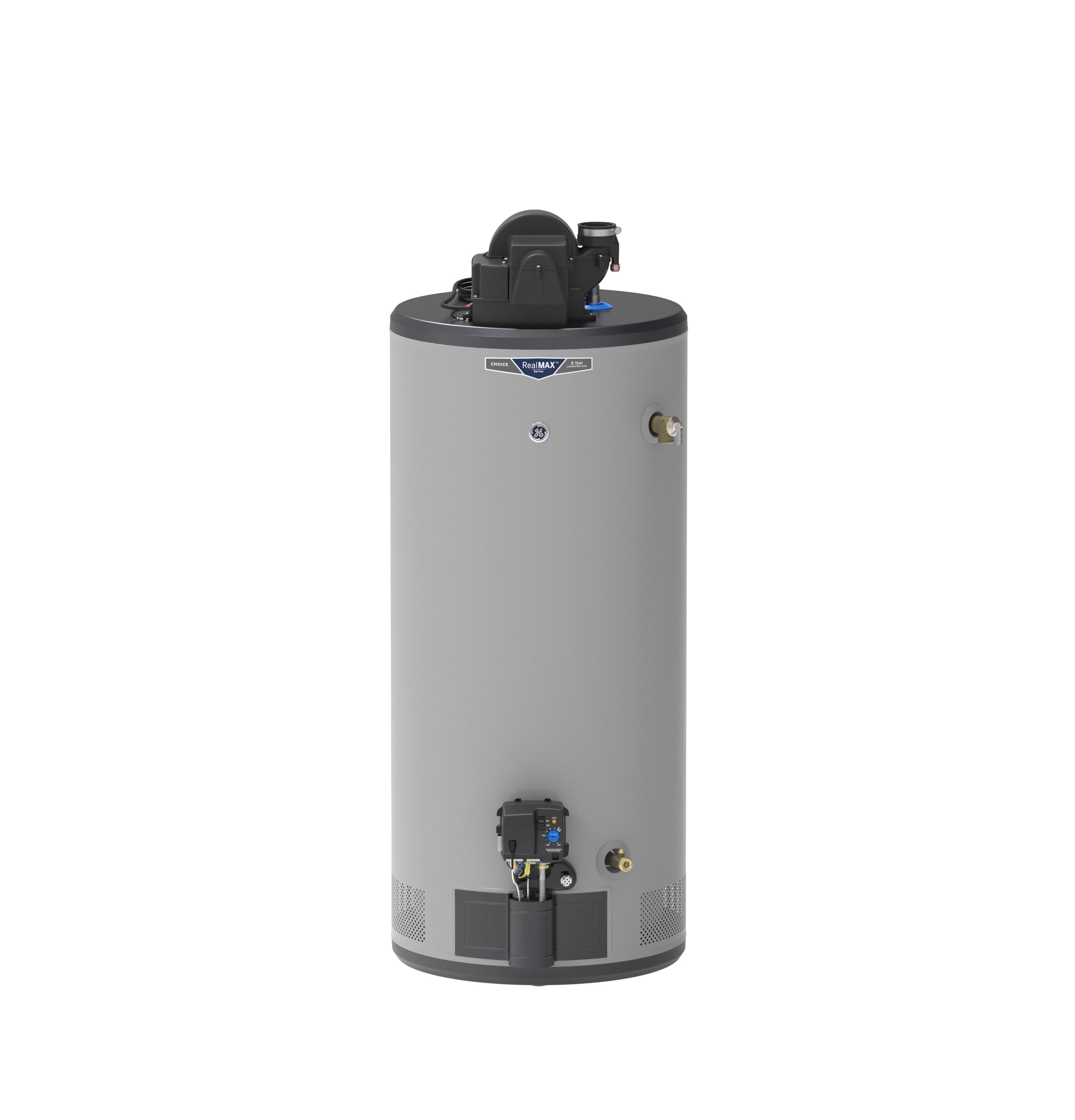

The GENERAL ELECTRIC GP40S08AYV RealMAX Choice is a gas power vent water heater with a 40-gallon tank, providing ample hot water for families. It offers flexible venting options up to 150 feet with horizontal or vertical termination. The 36,000 BTU burner ensures maximum performance and quick hot water replenishment. Temperature settings range from 45° to 160°F.

• Features a SmartShield Safety System that monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or flammable vapors are detected.

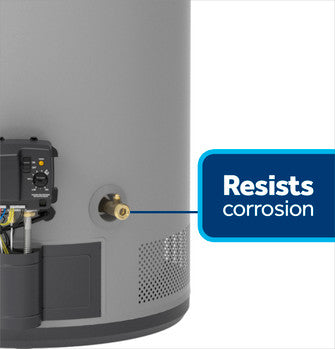

• Equipped with a corrosion-resistant, rust-proof full port brass drain valve for lasting durability.
• Includes an LED status indicator for monitoring and reporting on gas system status.

Product Highlights

This American-made water heater has an 8-year tank and parts limited warranty and provides a first-hour delivery of 60 gallons of hot water.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GP40S08AYV
• Country of Origin: America

Technical Specifications

• Unit Capacity: 40 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Short
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 2-5 People
• Fuel Type: Liquid Propane Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Short
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Power Vent Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: 0.63
• Vent: Power Vent
• Water Connection Location: Top
• Burner BTU Size (k): 36
• First Hour Delivery GPH: 60 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.5 in
• Overall Depth: 22 in
• Overall Height: 56.667 in
• Overall Width: 22 in
• Product Diameter: 22 in
• Product Height (to top of unit): 49.125 in
• Product Height (to top of water inlet/outlet connections): 50.625 in
• Vent Size: 2" or 3" PVC, CPVC, ABS or PP
• Rated Nominal Volume (Gallons): 40
• DOE Rated Storage Volume (Gallons): 40
• Energy Star: No
• Connectivity: Not WiFi Compatible
• Height (Floor To Top of Heater - in.): 49.125
• Jacket Diameter (in.): 22
• BTU Input: 36000
• First Hour Delivery Rating (Gal.): 60
• Uniform Energy Factor (UEF): 0.63
• Water Connection Size (in.): 3/4" NPT
• Gas Connection Size (in.): 1/2"
• Heating Capacity: 36000 BTU/h
• Ignition Type: Pilot
• Tank Capacity: 40 Gal
• Type: Power Vent
