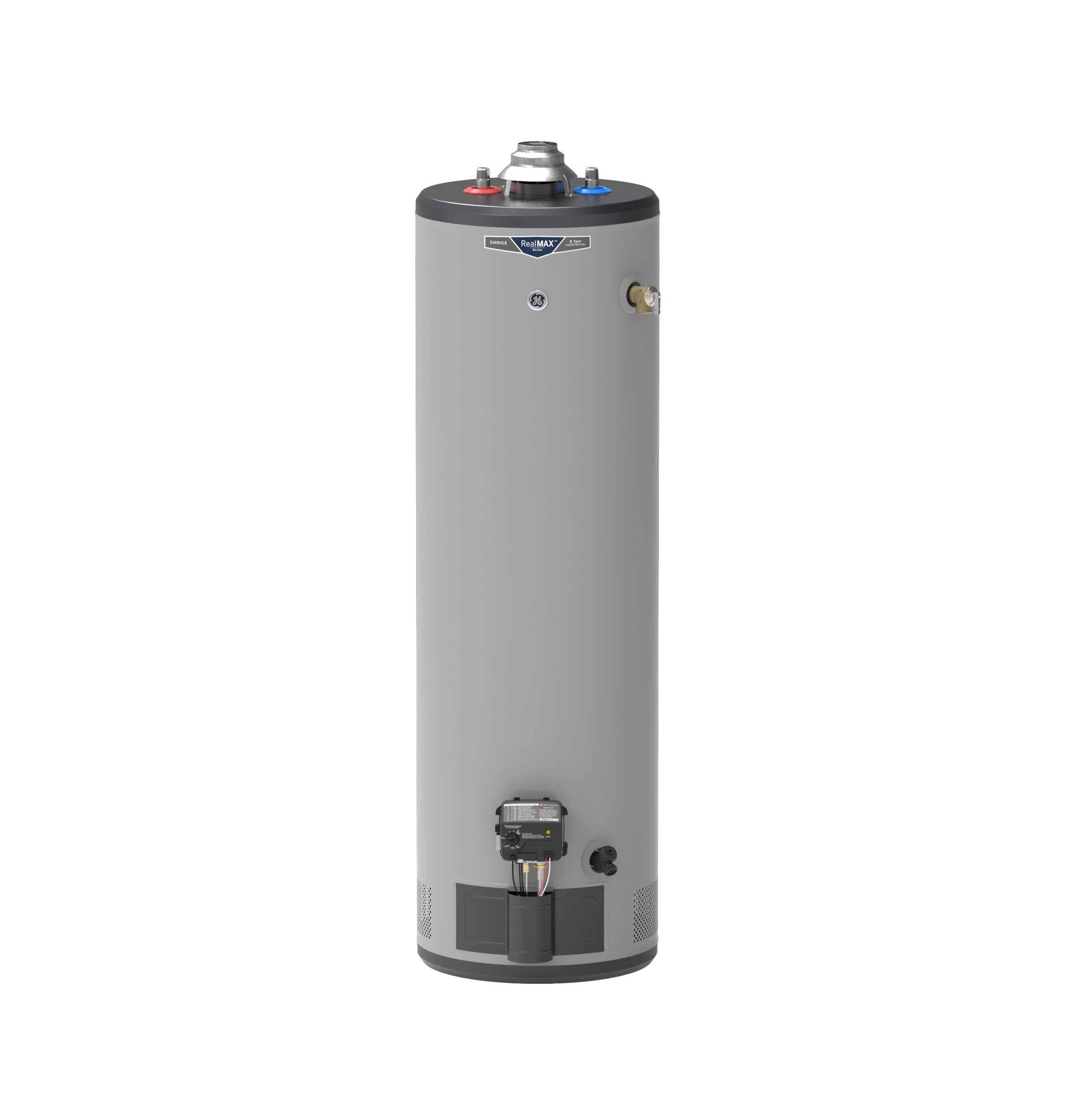

General Electric GP30T08BXR RealMAX Choice 30-Gallon Tall Liquid Propane Atmospheric Water Heater

Product Description

The GENERAL ELECTRIC GP30T08BXR RealMAX Choice 30-Gallon Tall Liquid Propane Atmospheric Water Heater provides hot water for a family of 1 to 3 persons. This water heater quickly replenishes hot water with a 28K BTU burner. It features durable design offers long-lasting protection against corrosion to extend the life of your water heater tank.

• Household Size: Provide hot water for the whole family of 1 to 3 persons
• Quick Recovery: Quickly replenish hot water with a max-performance 38K burner
• Anode Rod: Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

Product Highlights

This 30-gallon water heater has a SmartShield Safety System that monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected. It monitors and reports on gas system status via LED status indicator with Self-Diagnostic.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GP30T08BXR
• Country of Origin: America

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 30 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Plastic
• Family Size: 1-3 People
• Fuel Type: Liquid Propane Gas
• FVIR Safety System: Prevents accidental ignition of flammable vapors
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Dry Burning Protection
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .6
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 28
• First Hour Delivery GPH: 52 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Overall Depth: 18 in
• Overall Height: 61.25 in
• Overall Width: 18 in
• Product Diameter: 18 in
• Product Height (to top of unit): 57.75 in
• Product Height (to top of water inlet/outlet connections): 59.25 in
• Vent Size: 2" or 3" Type B Vent
• Rated Nominal Volume (Gallons): 30
• DOE Rated Storage Volume (Gallons): 30
• Energy Star: No
• Connectivity: Not WiFi Compatible
• First Hour Delivery Rating (Gal.): 52
• Uniform Energy Factor (UEF): 0.6
• Recovery at 90°F Rise (GPH): 29.1
• Recovery Efficiency: 78%
• Venting: Atmospheric
• Vent Size (in.): 3"
• Water Connection Size (in.): 3/4" NPT
• Gas Connection Size (in.): 1/2"
• Series: Gas Water Heaters-Chimney Vented-LP
• Brand: General Electric
• BTU Input: 28000
