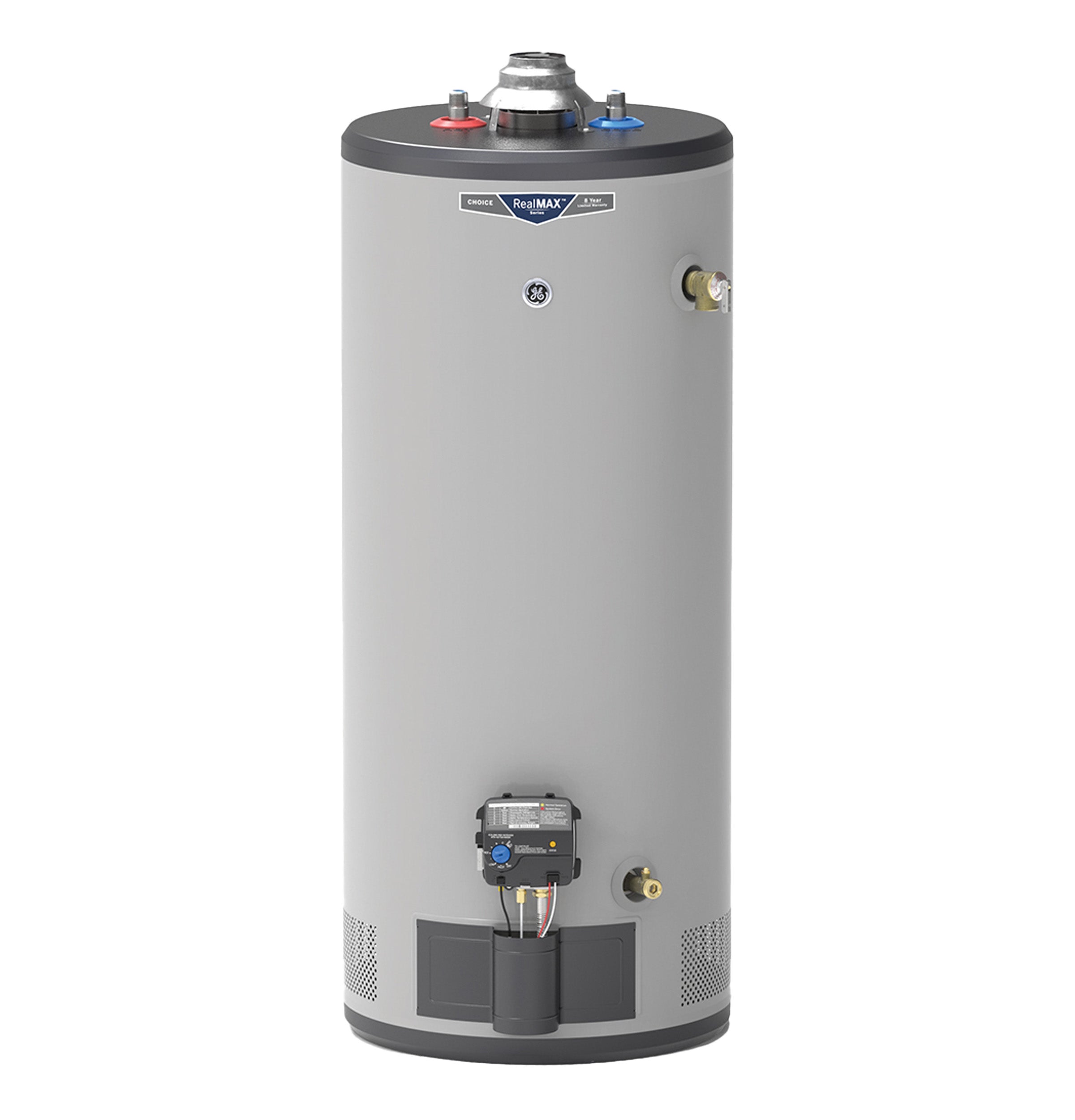

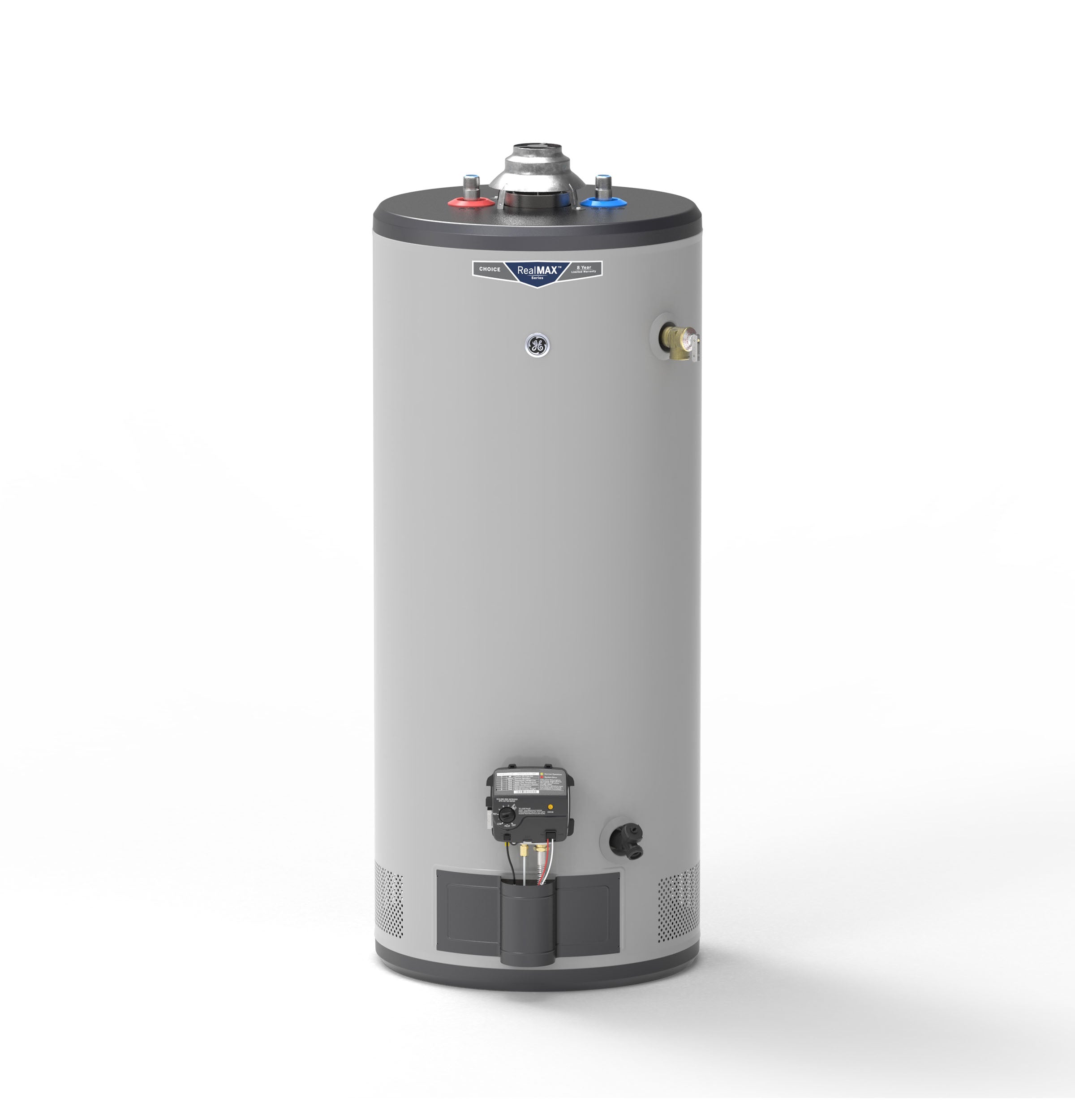

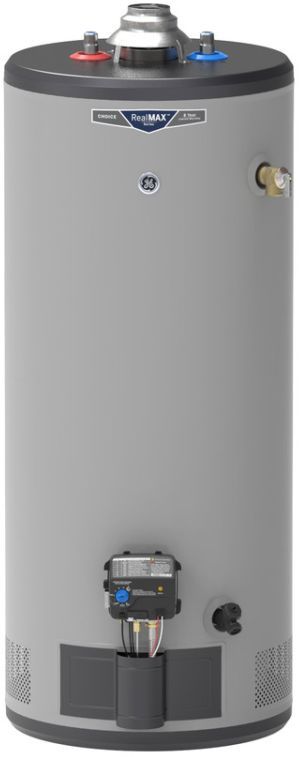

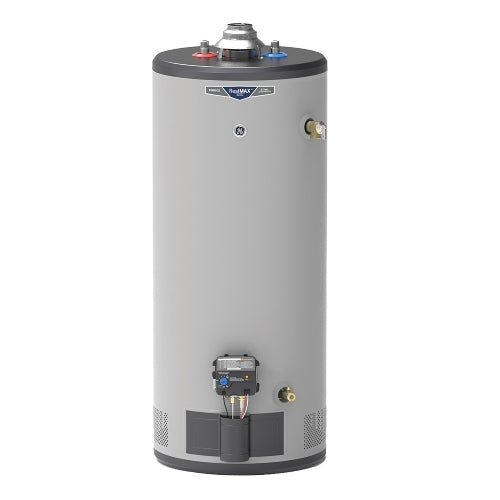

General Electric GP30S08BXR RealMAX Choice 30-Gallon Short Liquid Propane Atmospheric Water Heater

Product Description

The GENERAL ELECTRIC GP30S08BXR RealMAX Choice 30-Gallon Short Liquid Propane Atmospheric Water Heater provides hot water for households of 1 to 3 people. It features a 31.5K BTU burner for quick hot water replenishment and an anode rod for corrosion protection. The SmartShield Safety System monitors air temperature and automatically shuts off the unit if abnormal temperatures are detected.

• Provides hot water for 1 to 3 person households.
• Features a 31.5K BTU burner for quick hot water replenishment.
• Monitors gas system status via LED status indicator.

Product Highlights

This water heater offers durable design, easy installation, and a built-to-last warranty for long-lasting service.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GP30S08BXR
• Country of Origin: America

Technical Specifications

• Unit Capacity: 30 Gallons
• Altitude Rating: 10100 ft
• Anode Rod: Magnesium
• Configuration: Short
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 1-3 People
• Fuel Type: Liquid Propane Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Short
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160(degree) F Range
• UEF: 0.6
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 31.5
• First Hour Delivery GPH: 64 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Overall Depth: 20 in
• Overall Height: 50.25 in
• Overall Width: 20 in
• Product Diameter: 20 in
• Product Height (to top of unit): 46.875 in
• Product Height (to top of water inlet/outlet connections): 48.75 in
• Vent Size: 2" or 3" Type B Vent
• Rated Nominal Volume (Gallons): 30
• DOE Rated Storage Volume (Gallons): 30
• Energy Star: No
• Connectivity: Not WiFi Compatible
• Jacket Diameter (in.): 20
• BTU Input: 31500
• First Hour Delivery Rating (Gal.): 64
• Recovery at 90°F Rise (GPH): 32.7
• Recovery Efficiency: 78%
• Gas Connection Size (in.): 1/2"
• Water Connection Size (in.): 3/4" NPT
• Uniform Energy Factor (UEF): 0.6
• Width (in.): 20
• Depth (in.): 20
• Height (in.): 50.25
• Capacity (gal.): 30
• Outdoor Approved: No
• ADA Compliant: No
• Smart Compatible: No
• Wifi Capable: No
• Collection: RealMAX® Choice
• Part Number: GP30S08BXR
