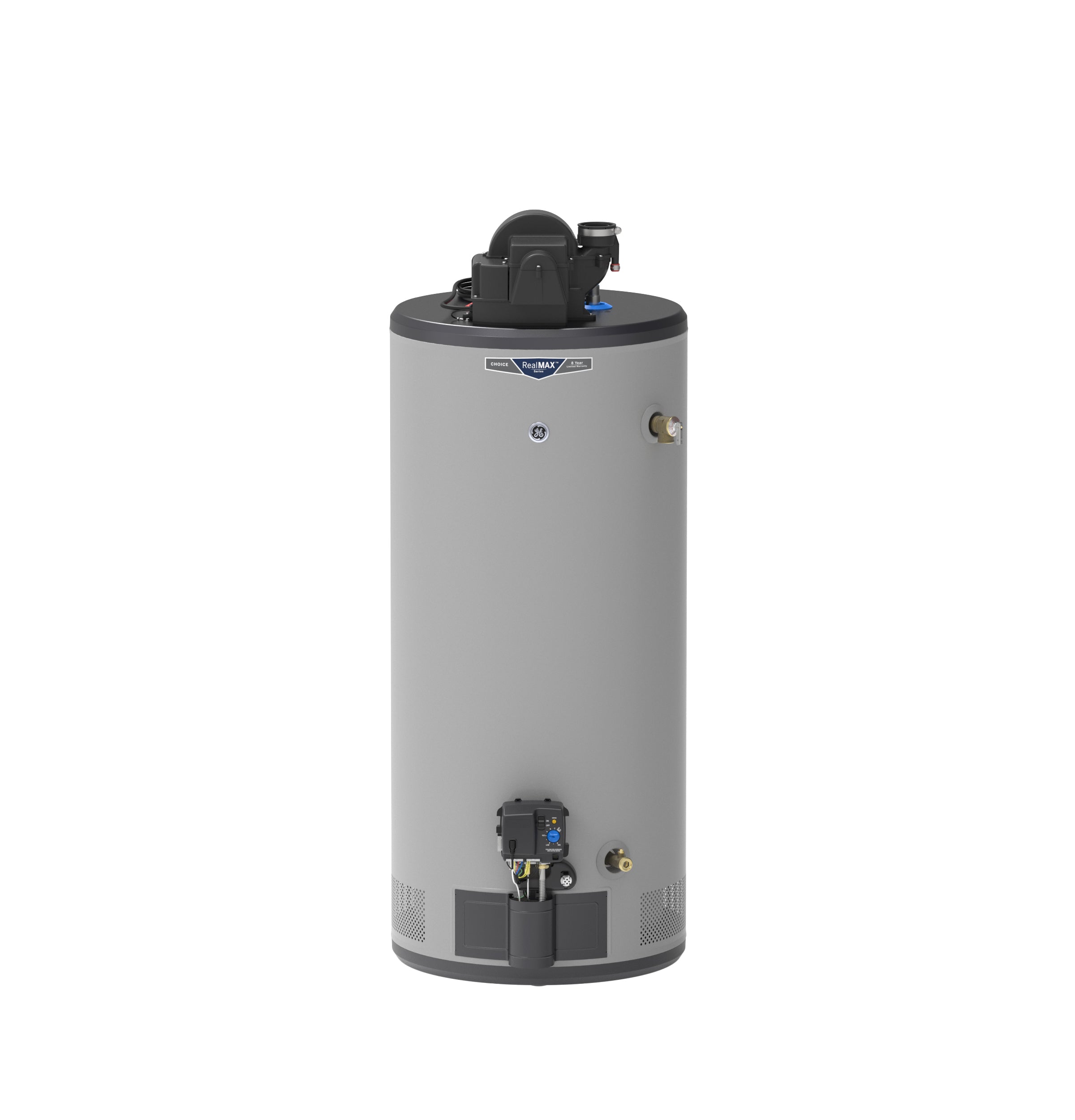

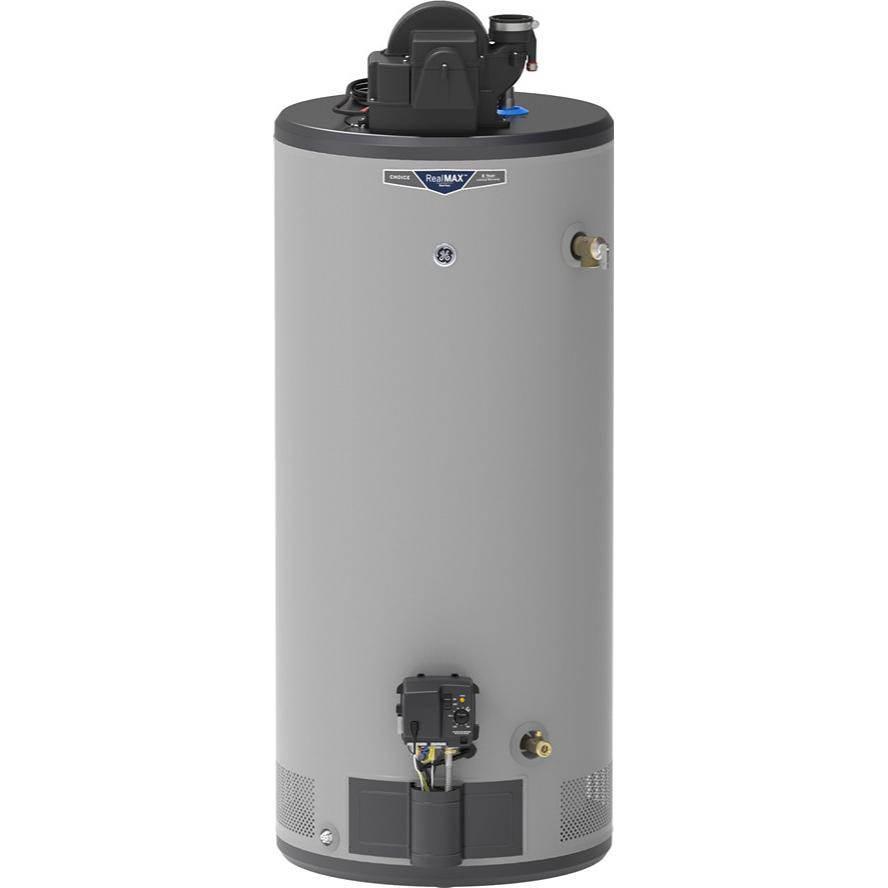

General Electric GG40S08AYV RealMAX Choice 40-Gallon Short Natural Gas Power Vent Water Heater

Product Description

The GENERAL ELECTRIC GG40S08AYV RealMAX Choice 40-Gallon Short Natural Gas Power Vent Water Heater offers flexible venting options with lengths up to 150 feet and either vertical or horizontal termination. It provides ample hot water for a family of up to four people. The unit features a SmartShield Safety System that monitors the surrounding air and automatically shuts off if abnormal temperatures or flammable vapors are detected.

• Power Vent: Offers flexible venting options with lengths up to 150 feet.
• Household Size: Provides plenty of hot water for a family of up to four people.
• SmartShield Safety System: Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or the presence of flammable vapors are detected.

Product Highlights

This 40-gallon natural gas water heater is ideal for households of 2-5 people, featuring a brass drain valve, self-diagnostics, and an 8-year limited warranty.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG40S08AYV
• Country of Origin: America

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 40 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Bin Testing: High
• Configuration: Short
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 2-5 People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Short
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Power Vent Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: 0.63
• Vent: Power Vent
• Water Connection Location: Top
• Burner BTU Size (k): 40
• First Hour Delivery GPH: 72 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.5 in
• Net Weight: 143 lb
• Overall Depth: 22 in
• Overall Height: 56.667 in
• Overall Width: 22 in
• Product Diameter: 22 in
• Product Height (to top of unit): 49.125 in
• Product Height (to top of water inlet/outlet connections): 50.625 in
• Vent Size: 2" or 3" PVC, CPVC, ABS or PP
• Product Dimensions: 56.67-in X 22-in X 22-in
• Weight: 155.00-lb
• Rated Nominal Volume (Gallons): 40
• DOE Rated Storage Volume (Gallons): 40
• Energy Star: No
• Connectivity: Not WiFi Compatible
• BTU Input: 38000
• First Hour Delivery Rating (Gal.): 78
• Uniform Energy Factor (UEF): 0.68
• Vent Size (in.): 3"
• Water Connection Size (in.): 3/4" NPT
• Gas Connection Size (in.): 1/2"
• Width: 22 inch(es) / 55.88 cm
• Height: 56.67 inch(es) / 143.93 cm
• Depth: 22 inch(es) / 55.88 cm
