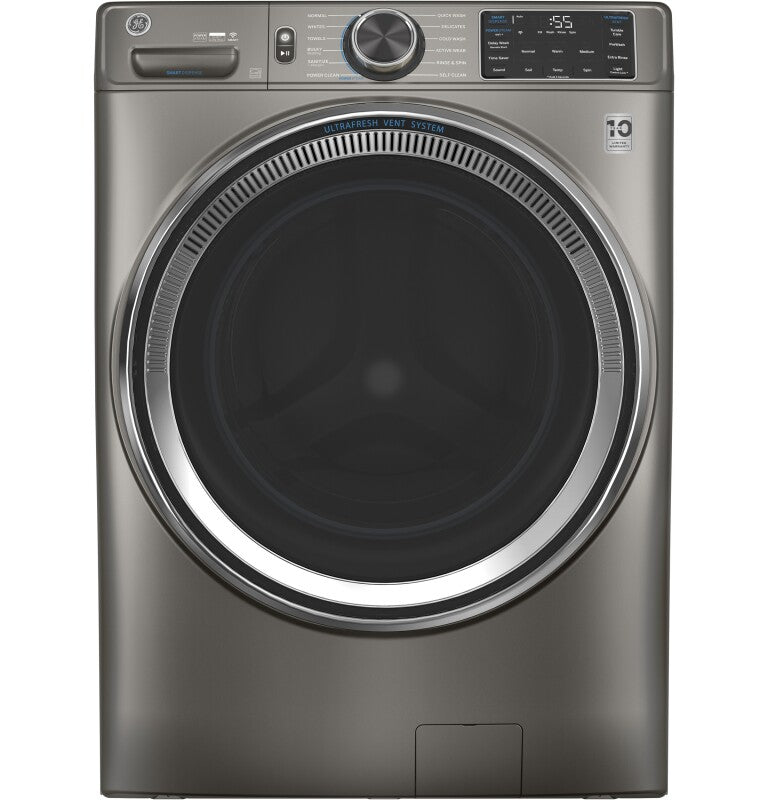

General Electric gfw650spnsn 4.8 Cu Ft Front Load Steam Washer

Product Description

The GENERAL ELECTRIC gfw650spnsn is a 4.8 cubic foot capacity smart front-load washing machine designed for residential installation. It operates on 120 volts at 60 Hz and reaches a maximum spin speed of 1,300 RPM across 12 wash cycles. The unit features a stainless steel tilted wash basket, an integrated SmartDispense bulk detergent system that holds up to 32 loads of detergent and automatically meters the correct amount per cycle, and a steam function for enhanced soil and allergen removal. The UltraFresh Vent System with OdorBlock addresses moisture retention in the gasket, dispenser, and draining system to reduce odor buildup between cycles. Built-in Wi-Fi enables remote monitoring and control through compatible smart home platforms.

The gfw650spnsn is suited for residential laundry installations including undercounter, stacked, side-by-side, built-in, and pedestal configurations. Its True32 Closet Depth design accommodates installations in tight closet spaces. The unit is stackable with an optional stacking kit (GFA28KITN) and is compatible with an optional pedestal riser (GFR0728PNSN, sold separately) and optional pedestal accessory (GFP1528PNSN, sold separately). Installation and servicing are front-accessible, which simplifies service calls in confined spaces. The reversible door adds flexibility for different laundry room layouts.

Key Features

• SmartDispense bulk detergent reservoir holds up to 32 loads and auto-doses each cycle
• Steam function supports sanitize, allergen, and power clean cycles
• UltraFresh Vent System with OdorBlock targets odor at the gasket, dispenser, and drain
• Built-in Wi-Fi with compatibility for Amazon Alexa, Google Home, Google Assistant, IFTTT, and Sonos
• dBT Quiet Control patented vibration technology for reduced operating noise
• Load-sensing adaptive fill and PerfecTemp Deluxe water temperature system
• 12 wash cycles including Sanitize plus Allergen, Bulky/Bedding, Cold Wash, and Self Clean

Compatibility

Compatible with optional stacking kit GFA28KITN, optional riser GFR0728PNSN (sold separately), optional pedestal GFP1528PNSN (sold separately), and fill hose WH41X10207 (sold separately). Supports installation configurations including undercounter, stacked, side-by-side, built-in, and pedestal.

Installation Notes

Installation should be performed by a qualified appliance technician in accordance with local codes and the manufacturer written warranty requirements. Shut off water supply valves and disconnect electrical power before servicing or connecting supply hoses. The unit requires a dedicated 120-volt, 60 Hz circuit with a 15 or 20 amp circuit breaker or time-delay fuse and a 3-prong grounding receptacle. Adjustable leveling legs are included to ensure proper balance on uneven flooring, which is critical for safe high-spin-speed operation.

Technical Specifications

• Total Capacity: 4.8 cubic feet
• Voltage: 120 volts, 60 Hz
• Circuit Breaker: 15 or 20 amp
• Maximum Spin Speed: 1,300 RPM
• Number of Cycles: 12
• Spin Speeds: 5
• Wash/Rinse Temperature Settings: 5
• Wash Basket Material: Stainless Steel (Tilted)
• Receptacle Type: 3-Prong Grounding
• Overall Width: 28 inches
• Overall Height: 39.75 inches
• Overall Depth: 32 inches
• Depth with Door Open 90 degrees: 54.5 inches
• Net Weight: 246 pounds
• Shipping Weight: 286 pounds
• Motor Speeds: Variable
• Product Type: Front Load, Stackable
• Installation Options: Undercounter, Stacked, Side-by-Side, Built-In, Pedestal
• Parts Warranty: Limited 1-year entire appliance; limited 10-year motor
• Labor Warranty: Limited 1-year entire appliance

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: gfw650spnsn
