Product Description

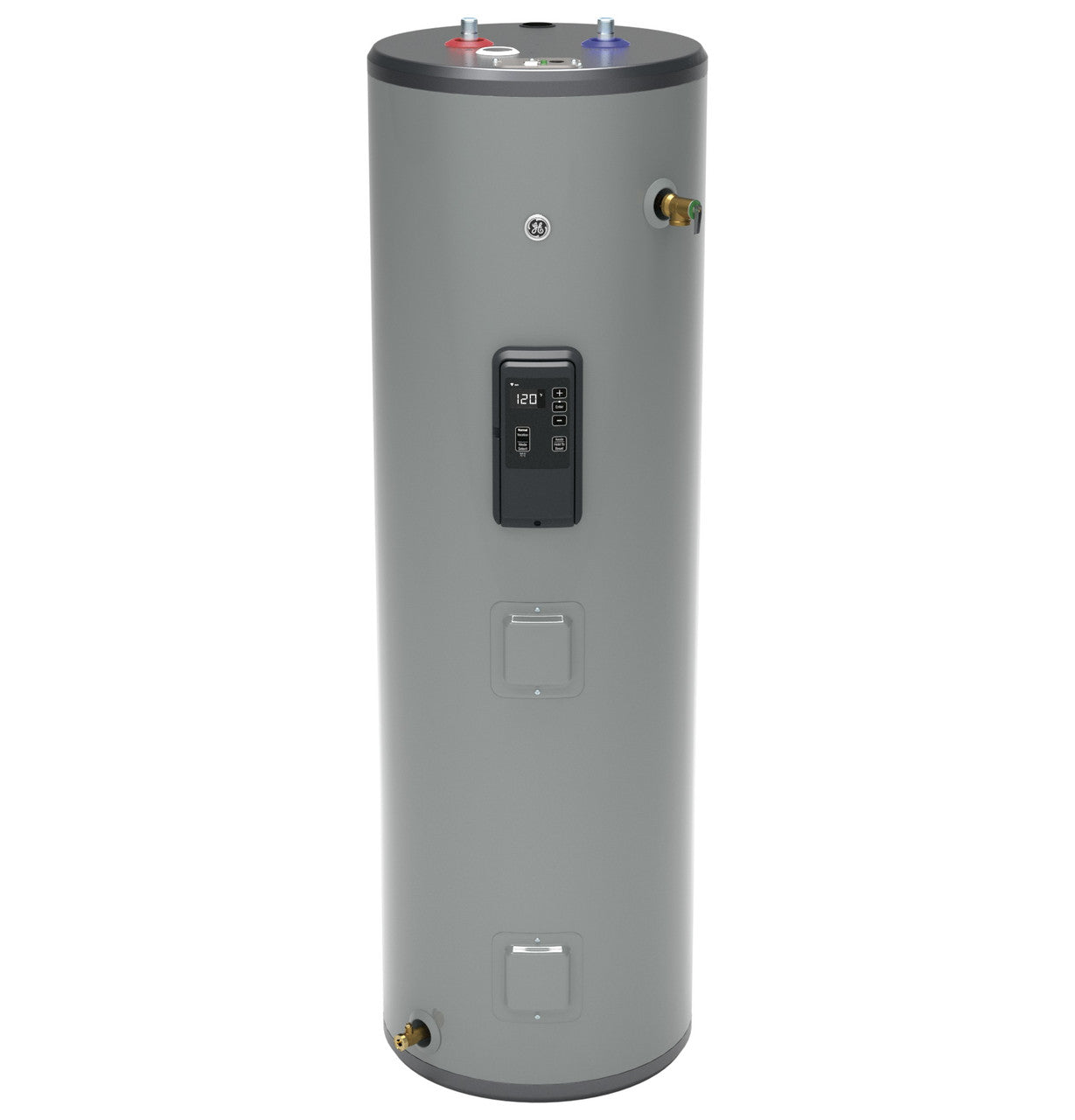

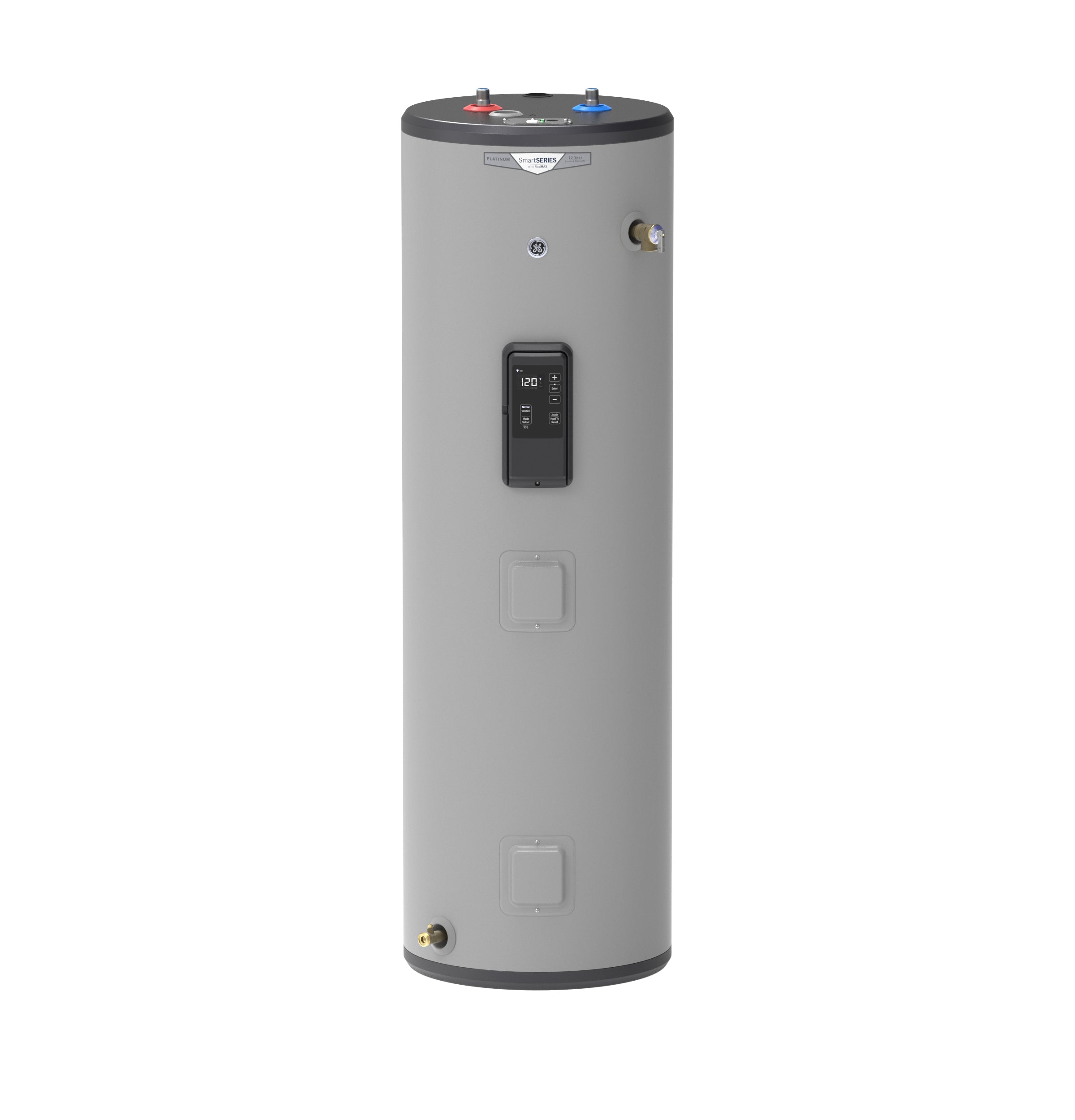

The GENERAL ELECTRIC GE40T12BLM smart electric water heater holds a true 40 gallons of water. Built-in WiFi powered by SmartHQ allows for easy temperature adjustments and vacation mode scheduling. It delivers 66 gallons of hot water in the first hour. Two 5500W heating elements quickly increase water temperature. Designed for households of 2 to 4 people.
- Real Capacity
- Built-in WiFi
- Leading Performance
Product Highlights
Features include stainless steel heating elements, a brass drain valve, and a digital display for easy setup and adjustments.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: GE40T12BLM
Technical Specifications
-
Color Appearance: Gray
-
Unit Capacity: 40 Gallons
-
Configuration: Tall
-
Connected Capabilities: Amazon Alexa, Google Home
-
Control Type: Electronic with Digital Display
-
Diagnostic Feedback: Yes
-
Drain Valve Type: Brass
-
Family Size: 2-4 People
-
Fuel Type: Electric
-
Height Description: Tall
-
Operating Modes: Normal, Vacation
-
Overheat Protection: Yes
-
Product Type: Electric Electronic
-
Sensing Anode: Yes
-
Temperature Setting: 100-140° F Range
-
Temperature Setting Factory Default: 120° F
-
Vacation Setting: Yes
-

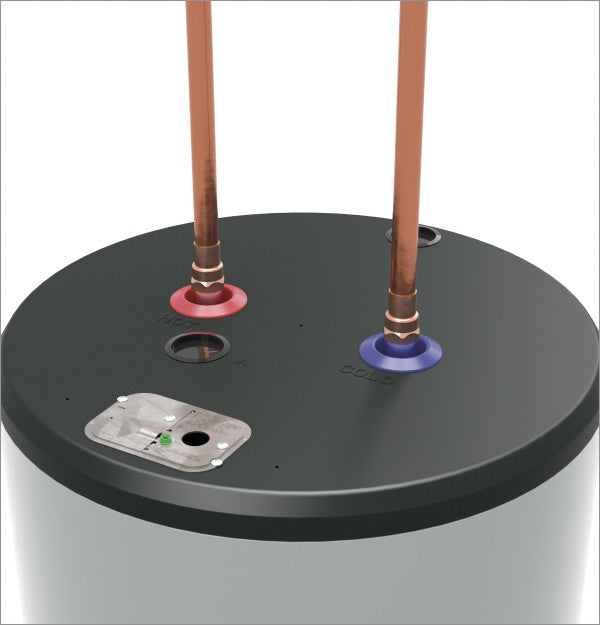

Water Connection Location: Top
-
WiFi Connect: Built-In
-
Electrical Circuit Required: Dedicated 30 Amp Min.
-
Electrical Connection: Direct-Wire
-
Energy Consumption (kWh/year): 3531
-
First Hour Rate (FHR): 66 Gallons
-
Heating - Electric - Heater Watts: 5500/5500
-
Integrated Energy Factor: 0.92
-
Operating Water Pressure: 20-125 PSI
-
Voltage (MAX): 240 V
-
Volts/Hertz: 240V; 60Hz
-
Connection Sizes - Hot Water Outlet (MNPT): 3/4"
-
Connection Sizes - Water Inlet (MNPT): 3/4"
-
Overall Depth: 20 in
-
Overall Height: 65.5 in
-
Overall Width: 20 in
-
Product Diameter: 20 in
-
Product Height (to top of unit): 64 in
-
Product Height (to top of water inlet/outlet connections): 65.5 in
-
Rated Nominal Volume (Gallons): 40
-
DOE Rated Storage Volume (Gallons): 40
-
Energy Star: No
-
Connectivity: Not WiFi Compatible
-
Jacket Diameter (in.): 20
-
Element Watts: 5500 (x2)
-
First Hour Delivery Rating (Gal.): 66
-
Uniform Energy Factor (UEF): 0.92
-
Recovery at 90°F Rise (GPH): 25.1
-
Venting: Non-Vented
-
Water Connection Size (in.): 3/4" NPT
-
Voltage: 208-230V
-
Amps: 30
-
Circuit Breaker Size (Amps): 30
-
Amperage Rating: 30 A (MCA)
-
Capacity: 40 gallons
-
Connection Size: 3/4" MNPT (Water Inlet/Outlet)
-
Connection Type: MNPT
-
Dimensions: 20" Diam x 65-1/2" H
-
Efficiency: 92% (UEF)
-
Element Material: Stainless Steel (Heating Elements), Brass (Drain Valve)
-
Element Type: Low Density Stainless Steel
-
Element Wattage: 5.5 kW (Upper), 5.5 kW (Lower)
-
Energy Factor: 0.92 UEF
-
Frequency Rating: 60 Hz
-
Fuse Size: 30 A (MCA)
-
Fuse Type: Circuit Breaker
-
Lead-Free/Contains Lead: Lead-Free
-
Material: Stainless Steel (Heating Elements), Brass (Drain Valve)
-
Model: GE40T12BLM
-
Mounting Type: Floor Mount
-
Number of Elements: 2
-
Phase: 1
-
Power Rating: 5,500 W (Upper), 5,500 W (Lower)
-
Pressure Rating: 20-125 PSI (Operating)
-
Recovery Rate: 25.1 GPH (At 90°F Rise)
-
Temperature Rating: 100-140 °F
-
Thermostat Type: Electronic With Digital Display and App
-
Wiring Type: Direct Wire
