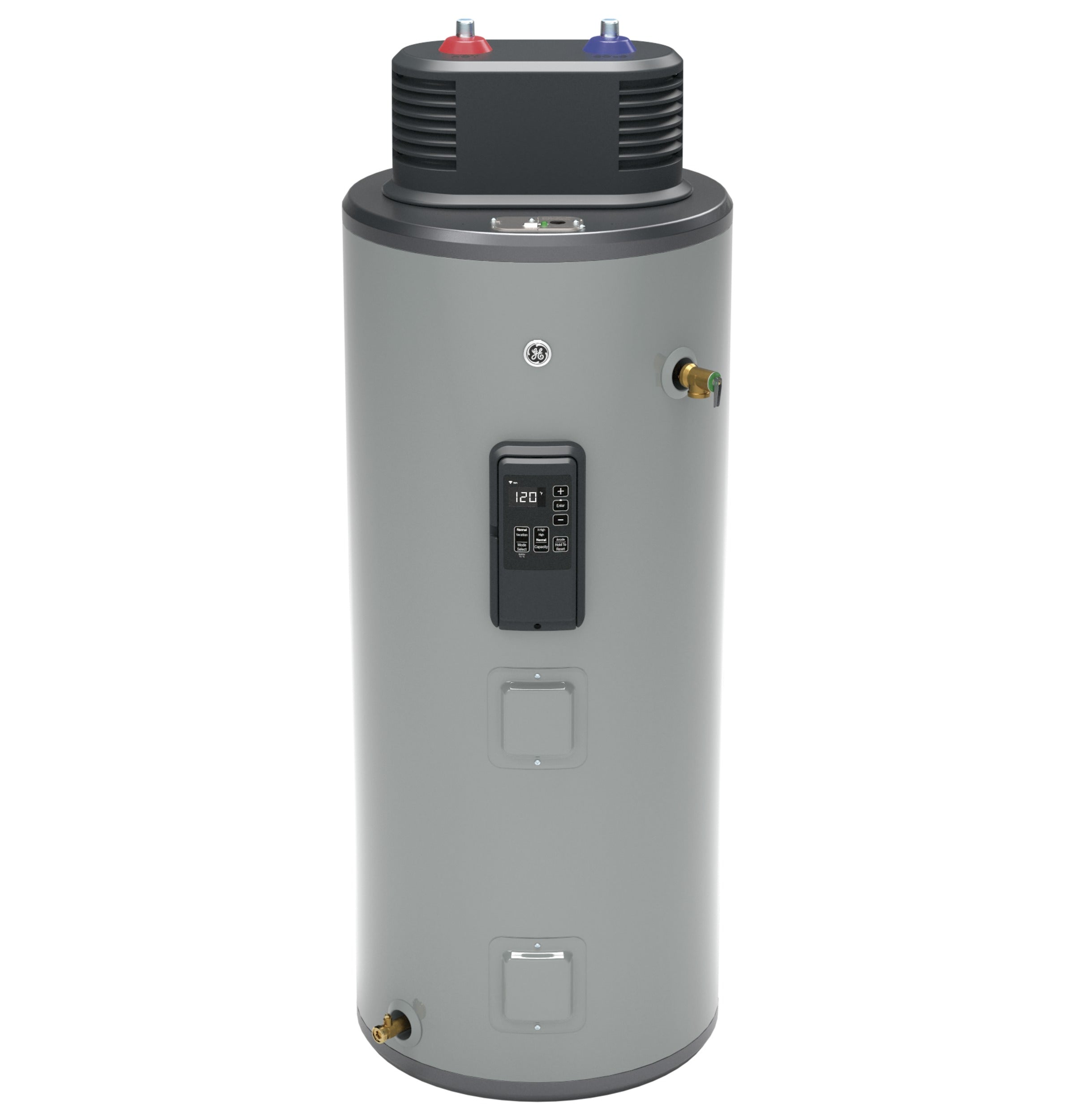

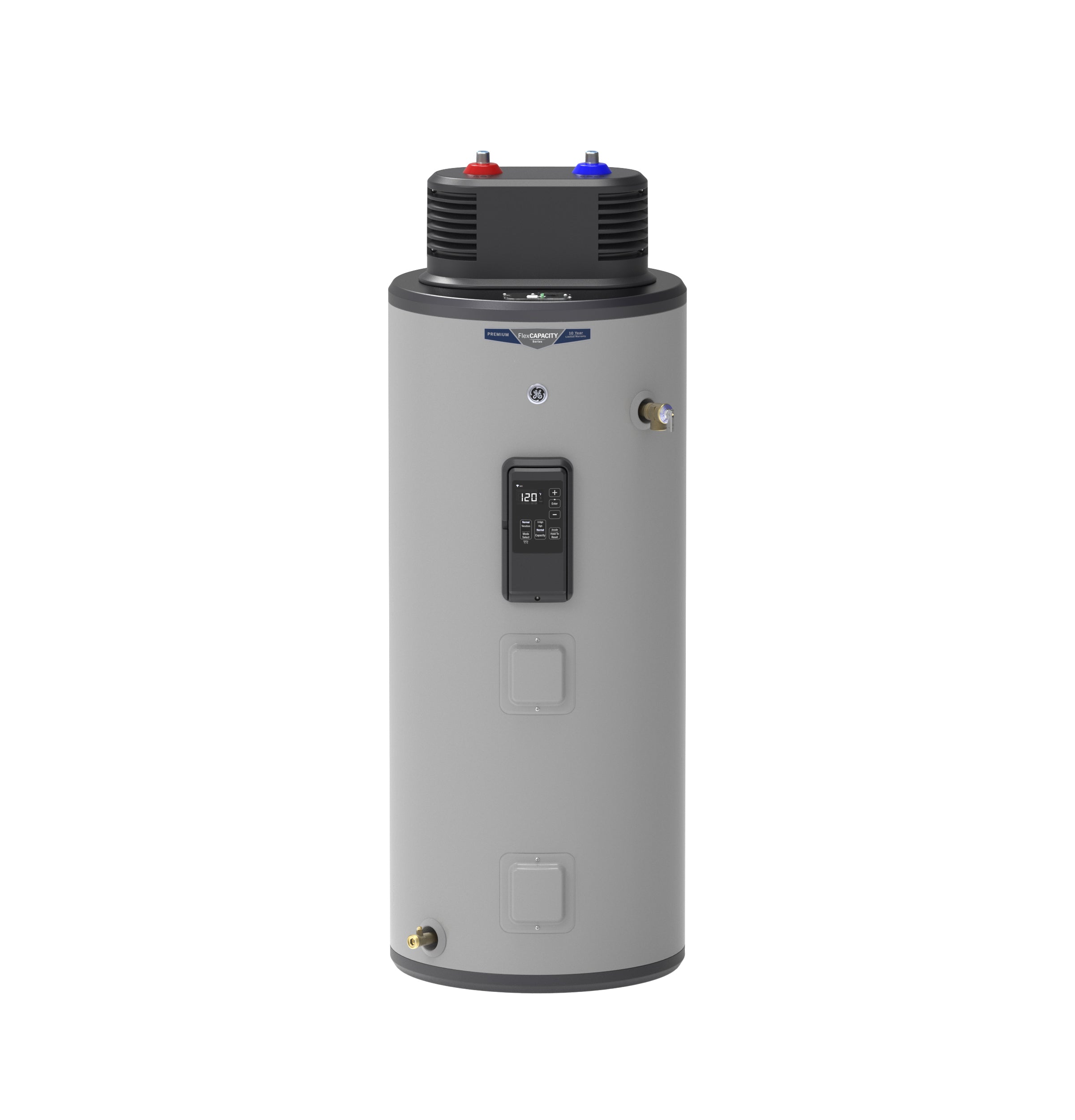

General Electric GE40S10BMM Electric Water Heater Short 40 Gallon W/Mixing Valve

Product Description

The GENERAL ELECTRIC GE40S10BMM is a 40-gallon electric water heater with flexible capacity. Owners can select from three capacity settings: normal, high, and extra-high, to store water at higher temperatures. The integrated electronic mixing valve mixes in cold water to accurately produce the exact temperature required, making more usable hot water available. It features built-in WiFi and two 5500W heating elements.

• Flexible capacity electronic water heaters

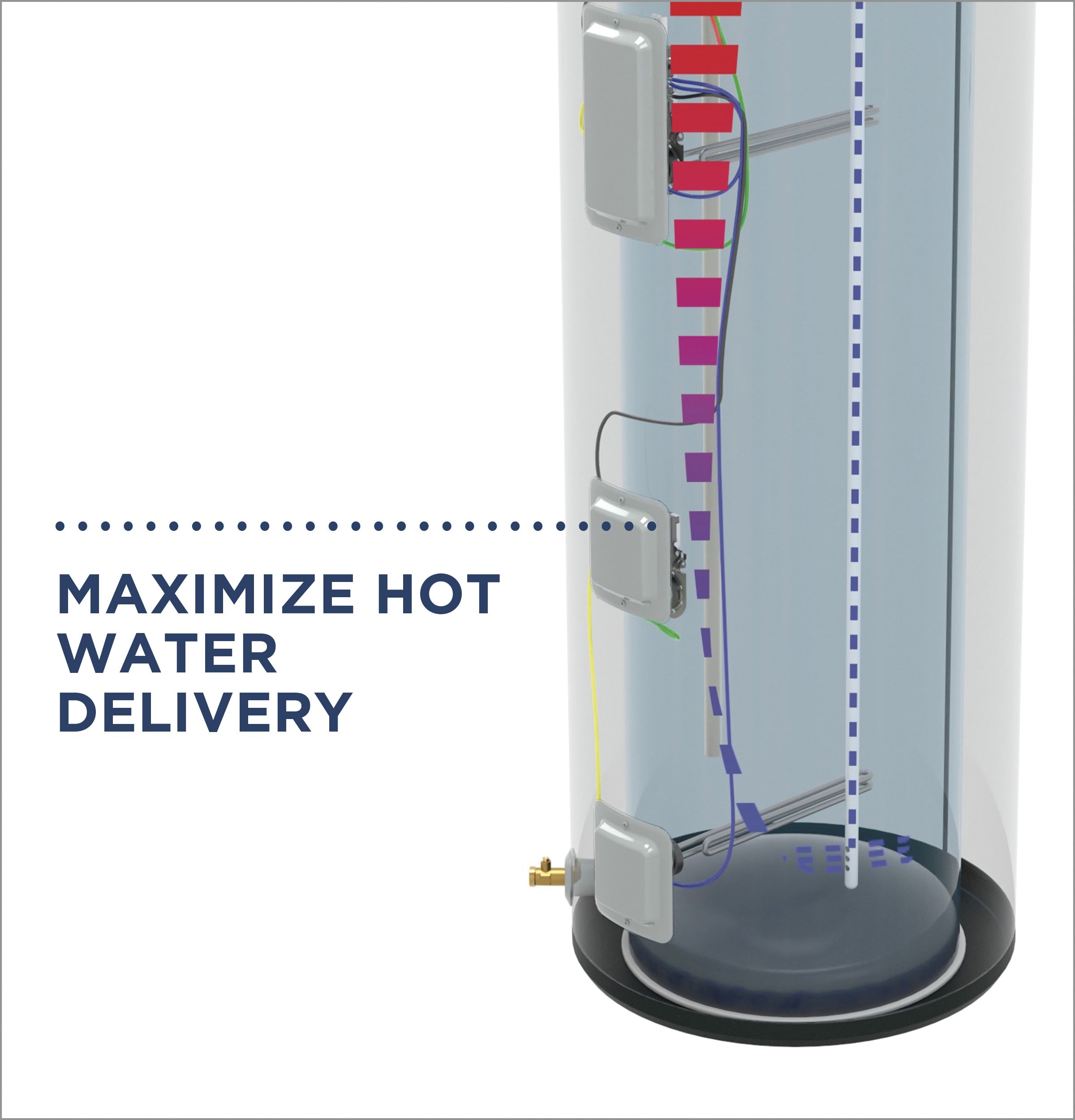

• Up to 60% more hot water with high or extra-high settings

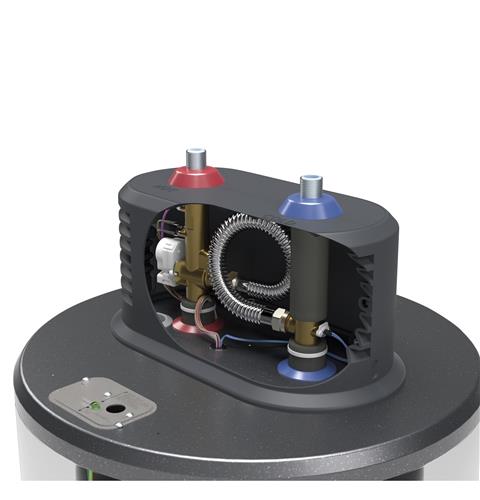

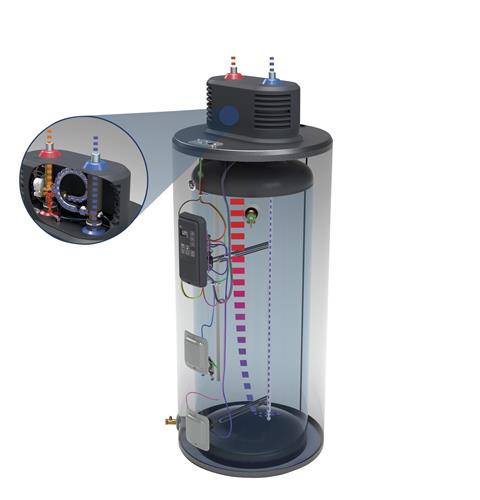

• Integrated electronic mixing valve

Product Highlights

This GE smart electric water heater provides flexible capacity, real capacity, and quick recovery with stainless steel heating elements.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GE40S10BMM

Technical Specifications

• Effective Capacity at X-High Setting (gallons): 64
• Unit Capacity: 40 Gallons
• Configuration: Short
• Connected Capabilities: Amazon Alexa, Google Home
• Control Type: Electronic with Digital Display
• Diagnostic Feedback: Yes
• Drain Valve Type: Brass
• EcoBalance Compatible: Yes
• Effective Capacity Settings: Normal/High/X-High¶Flexible Capacity
• Electronic, Integrated Mixing Valve: Yes
• Family Size: 2-4 People, 3-5 People
• Fuel Type: Electric
• Operating Modes: Normal, Vacation
• Overheat Protection: Yes
• Product Type: Electric Flexible Capacity
• Sensing Anode: Yes
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Vacation Setting: Yes
• Water Connection Location: Top
• WiFi Connect: Built-In
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Element Type: Stainless Steel
• Energy Consumption (kWh/year): 3531
• First Hour Rate (FHR): 65 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Integrated Energy Factor: 0.92
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Overall Depth: 22 in
• Overall Height: 60.875 in
• Overall Width: 22 in
• Product Diameter: 22 in
• Product Height (to top of unit): 59.375 in
• Product Height (to top of water inlet/outlet connections): 60.875 in
• Rated Nominal Volume (Gallons): 40
• DOE Rated Storage Volume (Gallons): 40
• Energy Star: No
• Connectivity: Built-In WiFi
• Element Watts: 5500 (x2)
• Uniform Energy Factor (UEF): 0.92
• Recovery at 90°F Rise (GPH): 25.1
• Venting: Non-Vented
• Water Connection Size (in.): 3/4" NPT
• Voltage: 208-230V
• Amps: 30
• Circuit Breaker Size (Amps): 30
