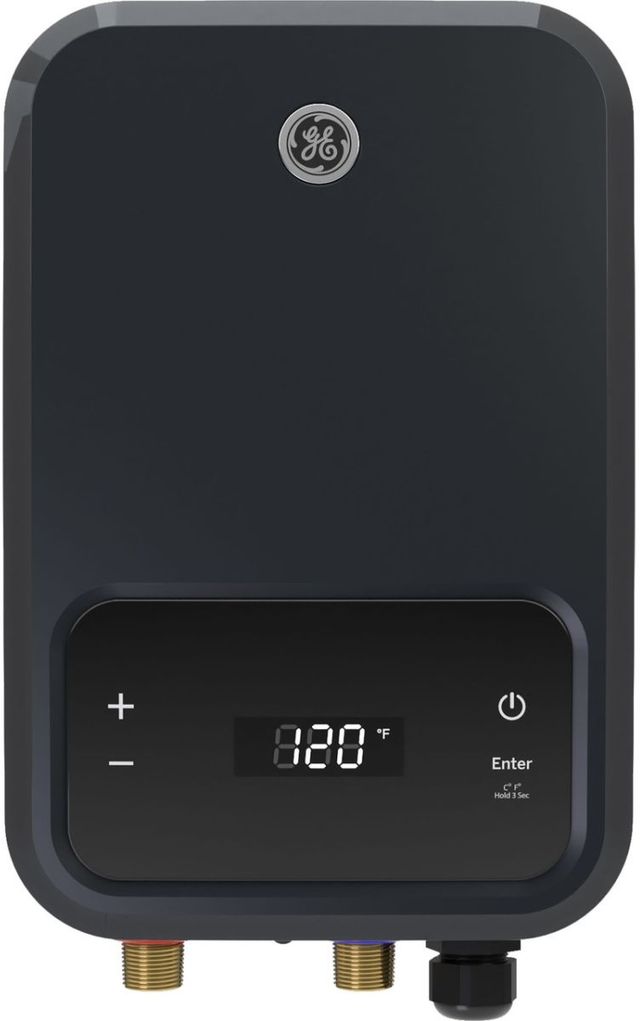

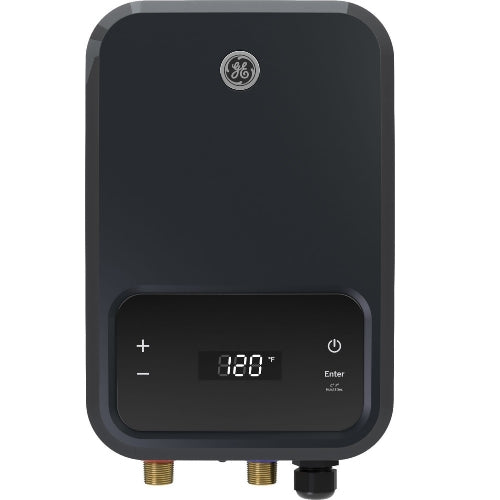

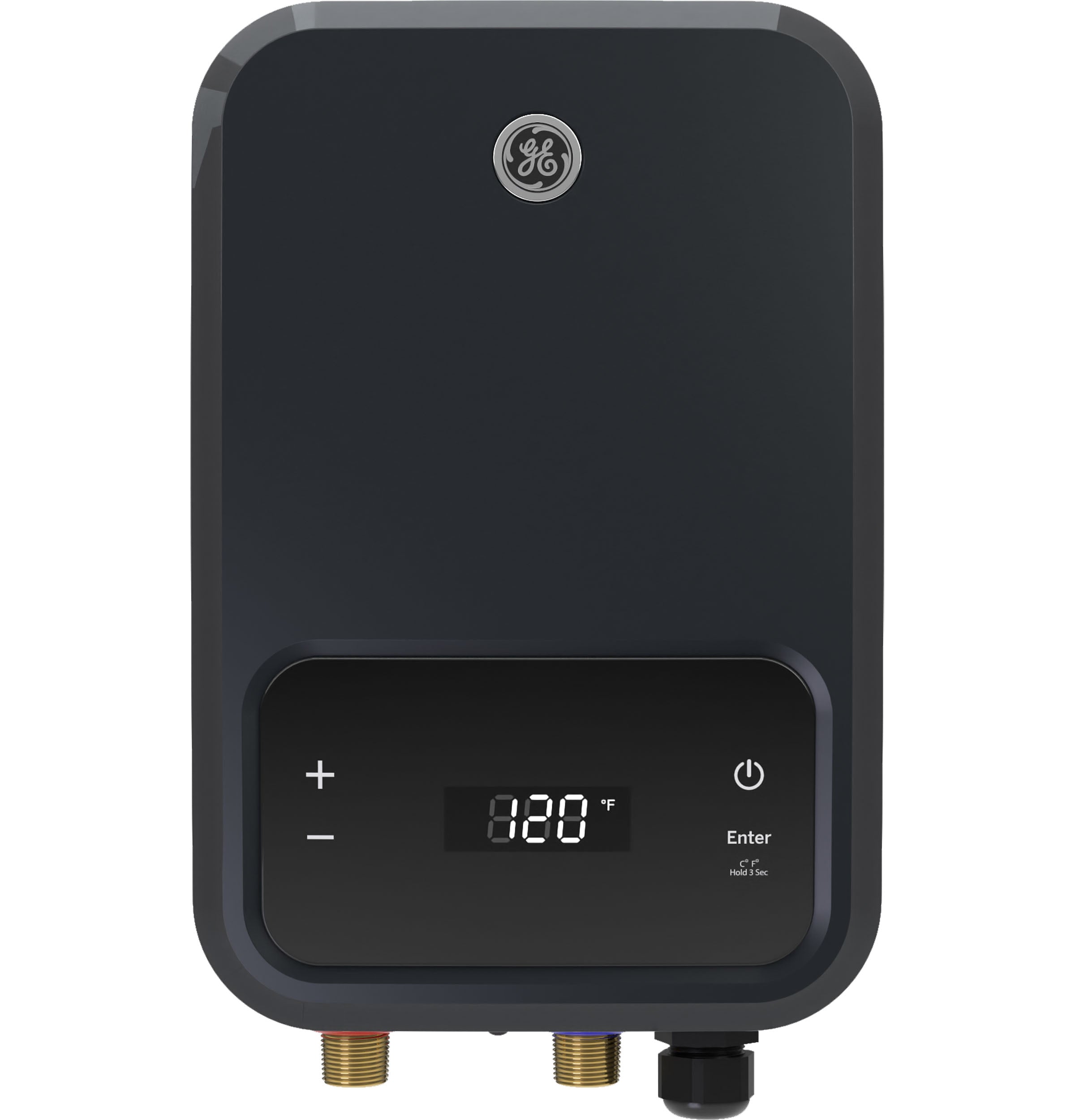

General Electric GE27DNHPDG Tankless Electric Water Heater 5.4 Gallons Per Minute (GPM)

Product Description

The GENERAL ELECTRIC GE27DNHPDG Tankless Electric Water Heater provides unlimited hot water on demand, making it a whole-home solution suitable for houses or apartments. It delivers performance up to 5.4 gallons per minute (GPM). The intuitive design includes an easy-to-use touch screen for adjusting temperature settings. This energy-efficient water heater conserves energy and water.

• Unlimited Hot Water on Demand
• Whole Home Solution
• Performance Up to 5.4 Gallons Per Minute (GPM)
• Intuitive Design

Product Highlights

This tankless electric water heater is energy efficient, a space saver, and features scale reduction technology. It has easy installation and digital temperature control.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GE27DNHPDG

Technical Specifications

• Color Appearance: Diamond Gray
• Installation: Wall Mounted
• Capacity: 5.4 Gallons Per Minute (GPM)
• Activation Flowrate (GPM): ≤ 0.5
• Cold/hot water connections (inches): 3/4" Cold Water Inlet; 3/4" Hot Water Outlet
• Configuration: Space Saver
• Controls: Adjust degree Fahrenheit/Celsius
• Adjustable Temperature: Digital Electronic Control
• Flowrate (GPM) @ 37 F inlet: 3
• Flowrate (GPM) @ 42 F inlet: 3.29
• Flowrate (GPM) @ 47 F inlet: 3.4
• Flowrate (GPM) @ 52 F inlet: 3.79
• Flowrate (GPM) @ 57 F inlet: 4.19
• Flowrate (GPM) @ 62 F inlet: 4.4
• Flowrate (GPM) @ 67 F inlet: 5.09
• Flowrate (GPM) @ 72 F inlet: 5.4
• Flowrate (GPM) @ 77 F inlet: 6.19
• Fuel Type: Electric
• Installation Location: Indoor
• Integrated Safety Devices: Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
• Max. operating pressure (psi): 150
• Maximum Outlet Temperature (F): 140
• Min. operating pressure (psi): 25
• Point of Use: Whole Home
• Product Type: Electric Tankless
• Temperature adjustment amount (degree): 1
• Temperature Setting: 86-140° F Range
• Temperature Setting Factory Default: 105° F
• Uniform Energy Factor (UEF): >0.91
• Water Connection Location: Bottom
• Amps: 112.5
• Electrical Circuit Required: 40 Amp (x3)
• Electrical Requirements: 240V ; 120A
• First Hour Delivery GPH: 180
• Hertz: 60
• Power Rating-kW: 27
• Voltage (MAX): 240 V
• Overall Depth: 3.70 in
• Overall Height: 15.2 in
• Overall Width: 10.2 in
• Product Diameter: 10.200 in
• Product Height (to top of unit): 15.2 in
• Product Use: Residential Only
• Energy Star: No
• Built-In Recirculation Pump: No
• Connectivity: Not WiFi Compatible
• Mobile Home Certified: No
• Temperature Setting Range: 86°F - 140°F
• Venting: Non-Vented
• Water Connection Size (in.): 1/2" NPT
• Overall Depth (in.): 3.875
• Overall Height (in.): 15.2
• Overall Width (in.): 10.2
• Weight (lbs.): 14
• Voltage: 240
• Circuit Breaker Amps: 40 (x3)
• Width (in.): 10.2
• Depth (in.): 3.70
• Height (in.): 15.2
• Outdoor Approved: No
• ADA Compliant: Yes
• Smart Compatible: No
• Wifi Capable: No
• Amp: 112.5
• Product Weight (lbs.): 14.09
• Maximum Amperage: 120 Amp
• Maximum Voltage: 240V
• Product Dimensions: 15.20- X 10.20-in X 3.70-in
