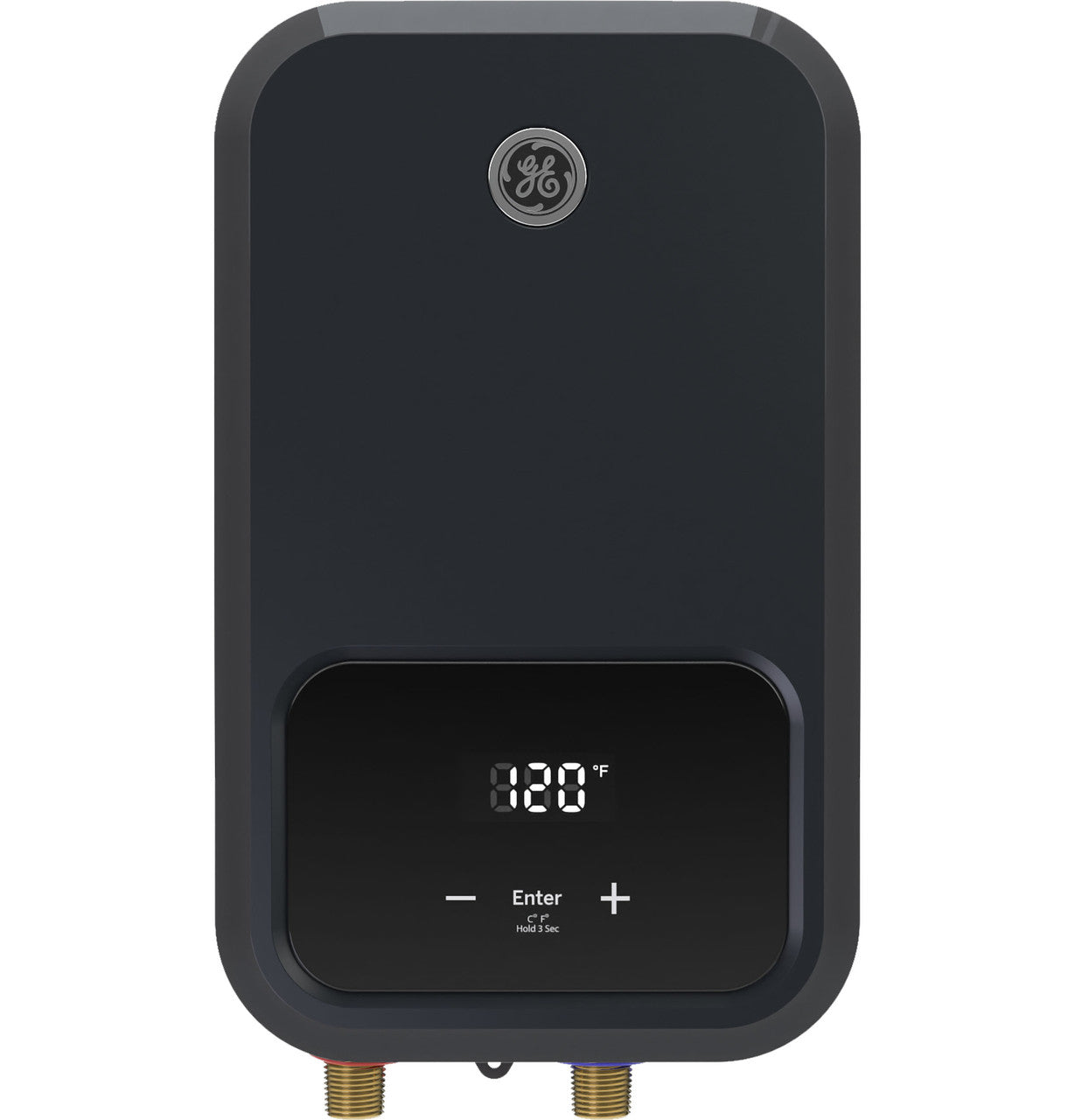

General Electric GE15SNHPDG Tankless Electric Water Heater 14.6 kW 2.9 GPM

Product Description

The GENERAL ELECTRIC GE15SNHPDG Tankless Electric Water Heater provides unlimited hot water on demand. This tankless electric water heater offers instant, continuous water flow and installs at the point of use, delivering hot water where you need it. It can supply up to 2.9 gallons per minute. The unit features a remote control for convenient temperature adjustments and an intuitive touch screen design.

• Unlimited Hot Water on Demand
• Point of Use
• Performance Up to 2.9 Gallons Per Minute (GPM)

Product Highlights

Energy efficient, the GE tankless water heater conserves energy and water by only using energy when hot water is in use. Its compact design saves space, and scale reduction technology extends the unit's life.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GE15SNHPDG

Technical Specifications

• Color Appearance: Diamond Gray
• Installation: Wall Mounted
• Capacity: 2.9 Gallons Per Minute (GPM)
• Activation Flowrate (GPM): ≤ 0.4
• Cold/hot water connections (inches): 1/2" Cold Water Inlet; 1/2" Hot Water Outlet
• Configuration: Space Saver
• Controls: Adjust degree Fahrenheit/Celsius
• Adjustable Temperature: Digital Electronic Control
• Flowrate (GPM) @ 37 F inlet: 1.5
• Flowrate (GPM) @ 42 F inlet: 1.7
• Flowrate (GPM) @ 47 F inlet: 1.79
• Flowrate (GPM) @ 52 F inlet: 2
• Flowrate (GPM) @ 57 F inlet: 2.09
• Flowrate (GPM) @ 62 F inlet: 2.29
• Flowrate (GPM) @ 67 F inlet: 2.59
• Flowrate (GPM) @ 72 F inlet: 2.9
• Flowrate (GPM) @ 77 F inlet: 3.4
• Fuel Type: Electric
• Installation Location: Indoor
• Integrated Safety Devices: Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
• Max. operating pressure (psi): 150
• Maximum Outlet Temperature (F): 140
• Min. operating pressure (psi): 25
• Point of Use: Yes
• Product Type: Electric Tankless
• Remote Control: Yes
• Temperature adjustment amount (degree): 1
• Temperature Setting: 86-140° F Range
• Temperature Setting Factory Default: 105° F
• Uniform Energy Factor (UEF): >0.91
• Water Connection Location: Bottom
• Amps: 60.8
• Electrical Circuit Required: 70 Amp
• Electrical Requirements: 240V ; 70A
• Hertz: 60
• Power Rating-kW: 14.6
• Voltage (MAX): 240 V
• Part Number: GE15SNHPDG
• UPC: 084691857204
• Voltage: 240 volt
• Wattage: 14.6 kW
• Installation Type: Indoor
• Product Use: Point of Use / Tankless
• Energy Star: No
• Built-In Recirculation Pump: No
• Connectivity: Not WiFi Compatible
• Mobile Home Certified: No
• Gallons Per Minute (GPM): 2.9 GPM
• Temperature Setting Range: 86°F - 125°F
• Venting: Non-Vented
• Water Connection Size (in.): 1/2" NPT
• Overall Depth (in.): 2.4
• Overall Height (in.): 14.2
• Overall Width (in.): 8.5
• Weight (lbs.): 10
• Circuit Breaker Amps: 70
