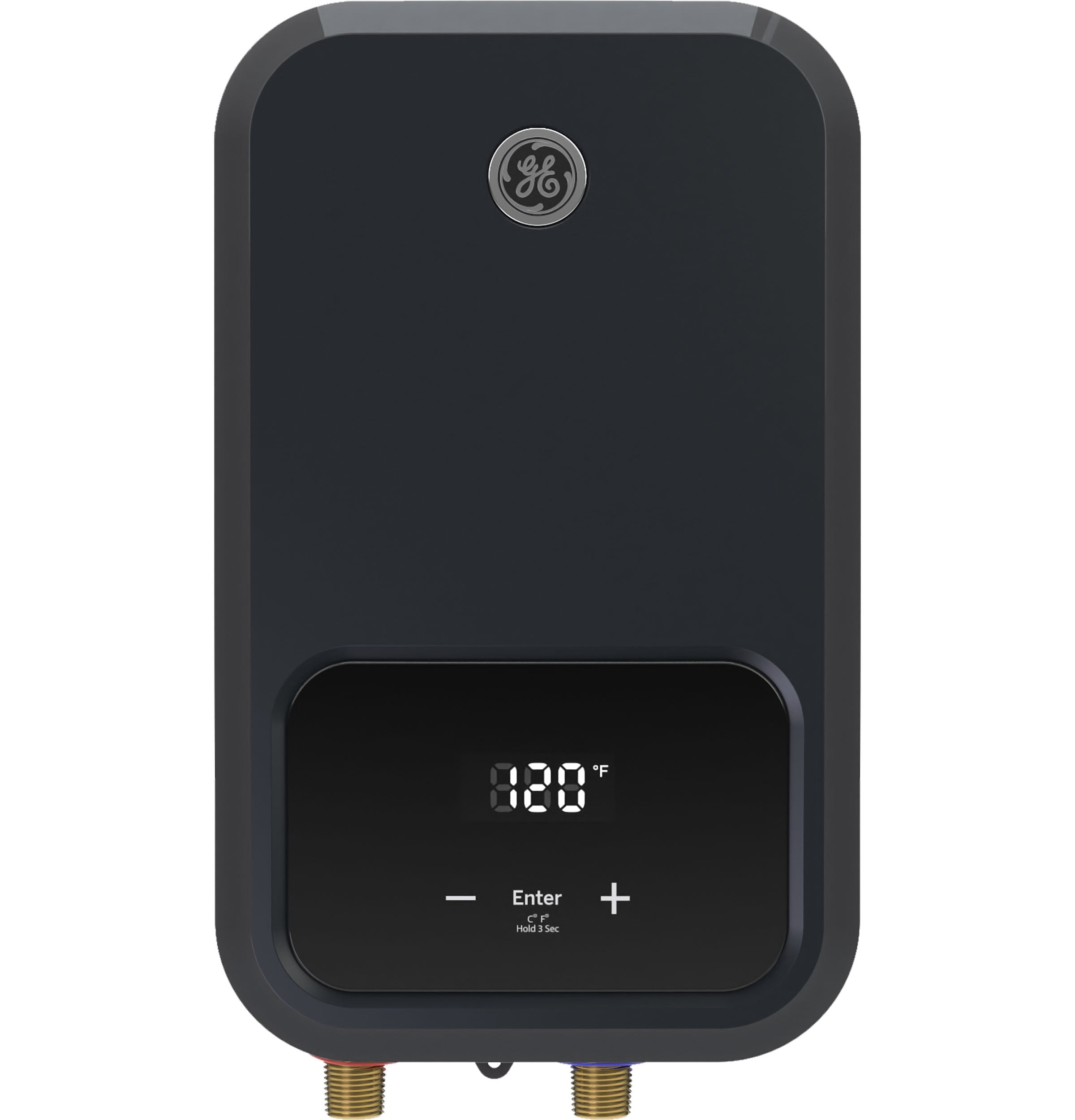

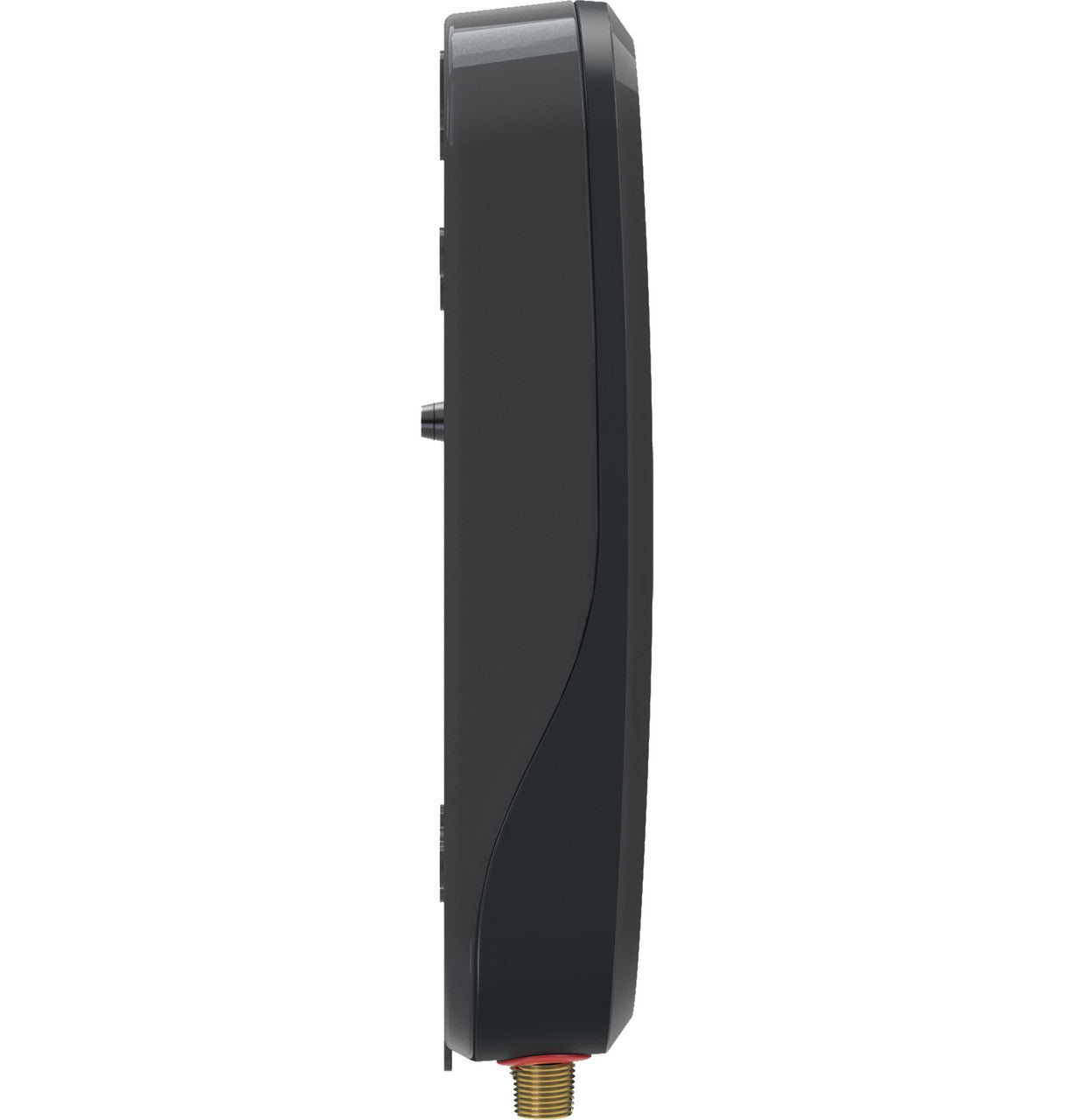

General Electric GE08SNHPDG Tankless Electric Water Heater 8 kW 1.7 GPM

Product Description

The GENERAL ELECTRIC GE08SNHPDG Tankless Electric Water Heater provides instant, continuous water flow. It installs at the point of use, for hot water where you need it. It can run multiple faucets simultaneously or a single shower in warm climates. Change temperature settings and control your unit with the remote control. It conserves energy and water by only using energy when hot water is in use.

• Provides up to 1.7 Gallons Per Minute (GPM)
• Features Scale Reduction Technology to extend the life of the unit.
• Offers easy installation with standard 1/2-in NPT water connections and no venting required.

Product Highlights

This tankless electric water heater features digital temperature control, remote, and self modulating technology.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GE08SNHPDG

Technical Specifications

• Color Appearance: Diamond Gray
• Installation: Wall Mounted
• Capacity: 1.7 Gallons Per Minute (GPM)
• Activation Flowrate (GPM): ≤ 0.4
• Cold/hot water connections (inches): 1/2" Cold Water Inlet; 1/2" Hot Water Outlet
• Configuration: Space Saver
• Controls: Adjust degree Fahrenheit/Celsius
• Adjustable Temperature: Digital Electronic Control
• Flowrate (GPM) @ 37 F inlet: 0.69
• Flowrate (GPM) @ 42 F inlet: 0.8
• Flowrate (GPM) @ 47 F inlet: 0.8
• Flowrate (GPM) @ 52 F inlet: 0.89
• Flowrate (GPM) @ 57 F inlet: 1.1
• Flowrate (GPM) @ 62 F inlet: 1.29
• Flowrate (GPM) @ 67 F inlet: 1.6
• Flowrate (GPM) @ 72 F inlet: 1.7
• Flowrate (GPM) @ 77 F inlet: 2
• Fuel Type: Electric
• Installation Location: Indoor
• Integrated Safety Devices: Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
• Max. operating pressure (psi): 150
• Maximum Outlet Temperature (F): 140
• Min. operating pressure (psi): 25
• Point of Use: Yes
• Product Type: Electric Tankless
• Remote Control: Yes
• Temperature adjustment amount (degree): 1
• Temperature Setting: 86-140° F Range
• Temperature Setting Factory Default: 105° F
• Uniform Energy Factor (UEF): >0.91
• Water Connection Location: Bottom
• Amps: 33.3
• Electrical Circuit Required: 40 Amp
• Electrical Requirements: 240V ; 40A
• Energy Consumption (kWh/year): 649
• Hertz: 60
• Power Rating-kW: 8
• Voltage (MAX): 240 V
• Voltage: 240
• Circuit Breaker Amps: 40
• Temperature setting: 86-140° F Range
• Voltage (min.): 208.0
• Voltage (max.): 240.0
