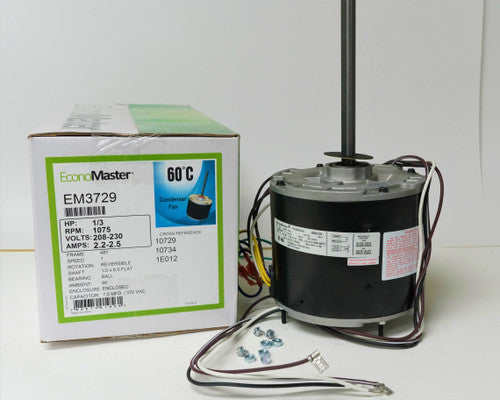

General Electric EM3729 Century Economaster® Condenser Fan Motor 1/3 HP

Product Description

The GENERAL ELECTRIC EM3729 Century Economaster® Condenser Fan Motor is a 1/3 HP motor designed for air-over applications. Operating at 208-230V and 60 Hz, it features a single speed of 1075 RPM. This motor is thermally protected and suitable for use in ambient temperatures up to 60°C. It is designed with extended studs for mounting and has a reversible rotation.

• Permanent Split Capacitor (PSC) design
• Thermally protected with Class B insulation
• Ball bearing construction for durability

Product Highlights

Durable condenser fan motor with PSC design, thermal protection, and ball bearing construction, suitable for air conditioning applications.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: EM3729
• Country of Origin: India

Technical Specifications

• Phase: 1
• Output HP: 1/3 Hp
• Output KW: 0.25 kW
• Voltage: 208-230 V
• Speed: 1075 rpm
• Service Factor: 1
• Frame: 48Y
• Enclosure: Totally Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 2.2-2.5 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 11.17 in
• Frame Length: 4.00 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.0 in
• Diameter: 5-5/8"
• Shaft Dimensions: .5" x 5.5"
• Body Length: 4-3/4"
• Capacitor: 7.5mfd x 370 vac (not included)
