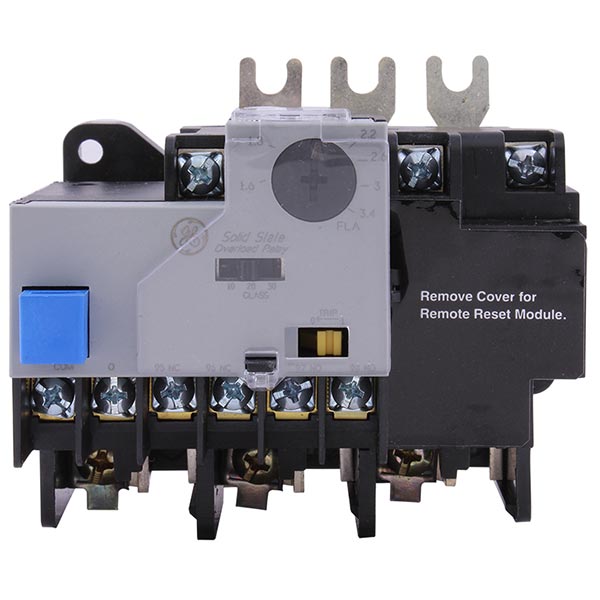

General Electric CR324CXES CR324X Solid State Overload Relay, 1.6 to 3.4 A, 600 VAC Coil

Product Description

The General Electric CR324CXES is a solid-state overload relay designed for electrical control systems. This relay operates within a range of one point six to three point four amperes and is suitable for a coil voltage of six hundred volts alternating current (VAC).

• Adjustable full load amps with tactile feedback
• Built-in thermal memory to prevent motor restarts
• Protection against phase current loss

Product Highlights

Reliable performance in industrial applications with advanced features for motor protection and control.

Product Information

Standard Information

• Brand: General Electric
• Part Number: N1740

Technical Specifications

• Amperage Rating: 1.6 to 3.4 A
• Application: Electrical Distribution and Control Applications
• Coil Voltage: 600 VAC
• Country of Origin: UU
• Dimensions: 4.11 inches L x 3.7 inches W x 3.6 inches H
• Enclosure Type: NEMA 1
• Mfg Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
• Mounting Type: Panel
• Number of Poles: 3
• Temperature Rating: -20 to 70 degrees Celsius
• Type: Solid State
