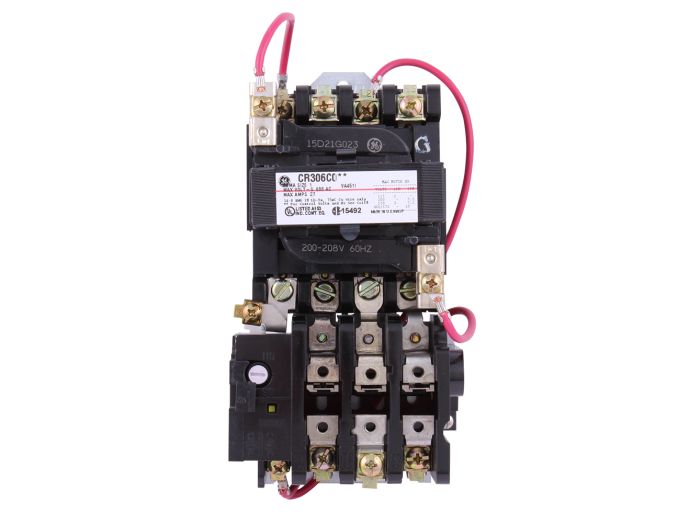

General Electric CR306C023 Mag Start FVNR Size 1

Product Description

The GENERAL ELECTRIC CR306C023 is a magnetic starter with a full voltage, non-combination, and non-reversing design. It has a power rating of 7-1/2 HP at 200/208 VAC and a current rating of 27 Ampere. The starter features a 3-phase configuration and a coil voltage of 200 to 208 VAC at 60 Hz. It includes a holding interlock and pressure terminals for line and load connection.

• Encapsulated coil
• 3-leg overload relay to protect against overloads in all phases
• On standard specifications of major manufacturers

Product Highlights

This magnetic starter is designed to protect against overloads in all phases and is available in reversing and nonreversing forms.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: CR306C023
• Country of Origin: United States

Technical Specifications

• Current Rating: 27 A
• Phase: 3 Phase
• Coil Voltage: 200 To 208 V At 60 Hz
• Size: Nema 1
• Enclosure Type: Open
• Overloads: Solid State 3 Leg Block 1no-1nc (2) Thermal Bimetallic Overload Relay Manual Reset Class 10/20/30
• Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Coil Type: Magnetic
• Overload Type: Thermal
• Termination: Screw
• NEMA Frame Size: 1
• Mounting: Surface
• Brand: GE Industrial
• MPN: CR306C023
• Type: Full Voltage, Non Combination, Non Reversing, Open Starter
• Horsepower: 7 1/2 Hp At 200 To 208 V 50/60 Hz
• Amperage: 27 Ampere
• Series: Cr306 Series
• Industry Standard: NEMA
• Poles: 3
