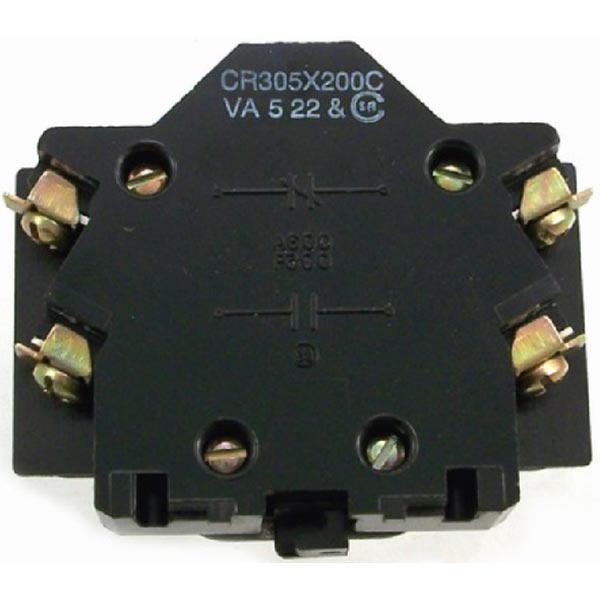

General Electric CR305X200C Auxiliary Contactor, 120 VAC/30 VDC, 0.15 A, NEMA 2

Product Description

The General Electric CR305X200C is an auxiliary contactor designed for electrical distribution and control applications. This product operates at a voltage rating of 120 VAC and 30 VDC with an amperage rating of 0.15 A, allowing it to effectively manage various electrical loads.

• Two contact configuration: one normally open and one normally closed.
• Standard NEMA 2 size for versatility in mounting.
• Compatible with 300 Line magnetic contactors and starters.

Product Highlights

The CR305X200C provides reliable performance in controlling circuits, making it suitable for use in many industrial applications.

Product Information

Standard Information

• Brand: General Electric
• Part Number: CR305X200C

Technical Specifications

• Amperage Rating: 0.15 A
• Voltage Rating: 120 VAC/30 VDC
• Number of Contacts: 2
• Dimensions: 4-1/2 inches L x 2-3/4 inches W x 2-1/2 inches H
• Package Height: 2.5 inches
• Package Length: 4.5 inches
• Package Width: 2.75 inches
• Suitable for Use With: 300 Line Magnetic Contactor/Starter
• Country of Origin: UU
• Mfg Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
