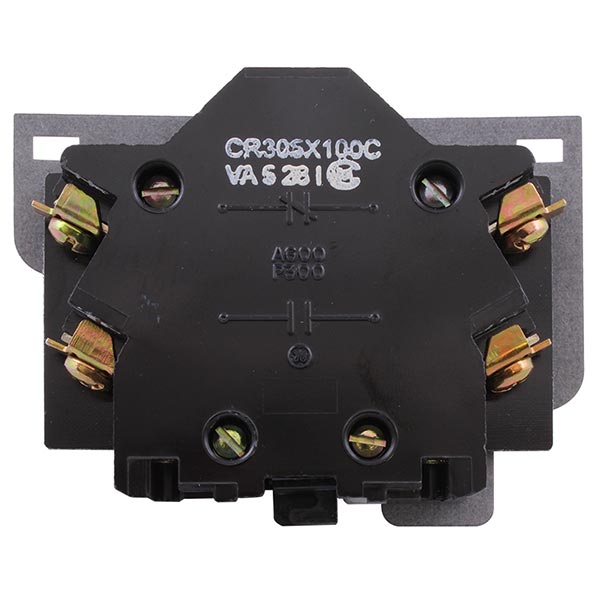

General Electric CR305X100C Auxiliary Contactor, 120 VAC/30 VDC, 0.15 A, 2 Contacts

Product Description

The General Electric CR305X100C Auxiliary Contactor is designed for electrical distribution and control applications. It operates at a voltage rating of 120 VAC and 30 VDC with an amperage rating of 0.15 A. This contractor features a basic block design with a modification kit for field installation. The device includes two contacts, with one normally open and one normally closed configuration.

• Voltage rating: 120 VAC/30 VDC
• Number of contacts: 2
• Application for electrical distribution and control

Product Highlights

This contactor supports various electrical applications, providing reliable performance.

Product Information

Standard Information

• Brand: General Electric
• Part Number: N1722

Technical Specifications

• Amperage Rating: 0.15 A
• Voltage Rating: 120 VAC/30 VDC
• Dimensions: 2 inches L x 4 inches W x 2.75 inches H
• Number of Contacts: 2
• Size: NEMA 0/1
• Suitable For Use With: 300 Line Magnetic Contactor/Starter
• Country of Origin: UU
• Mfg Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
