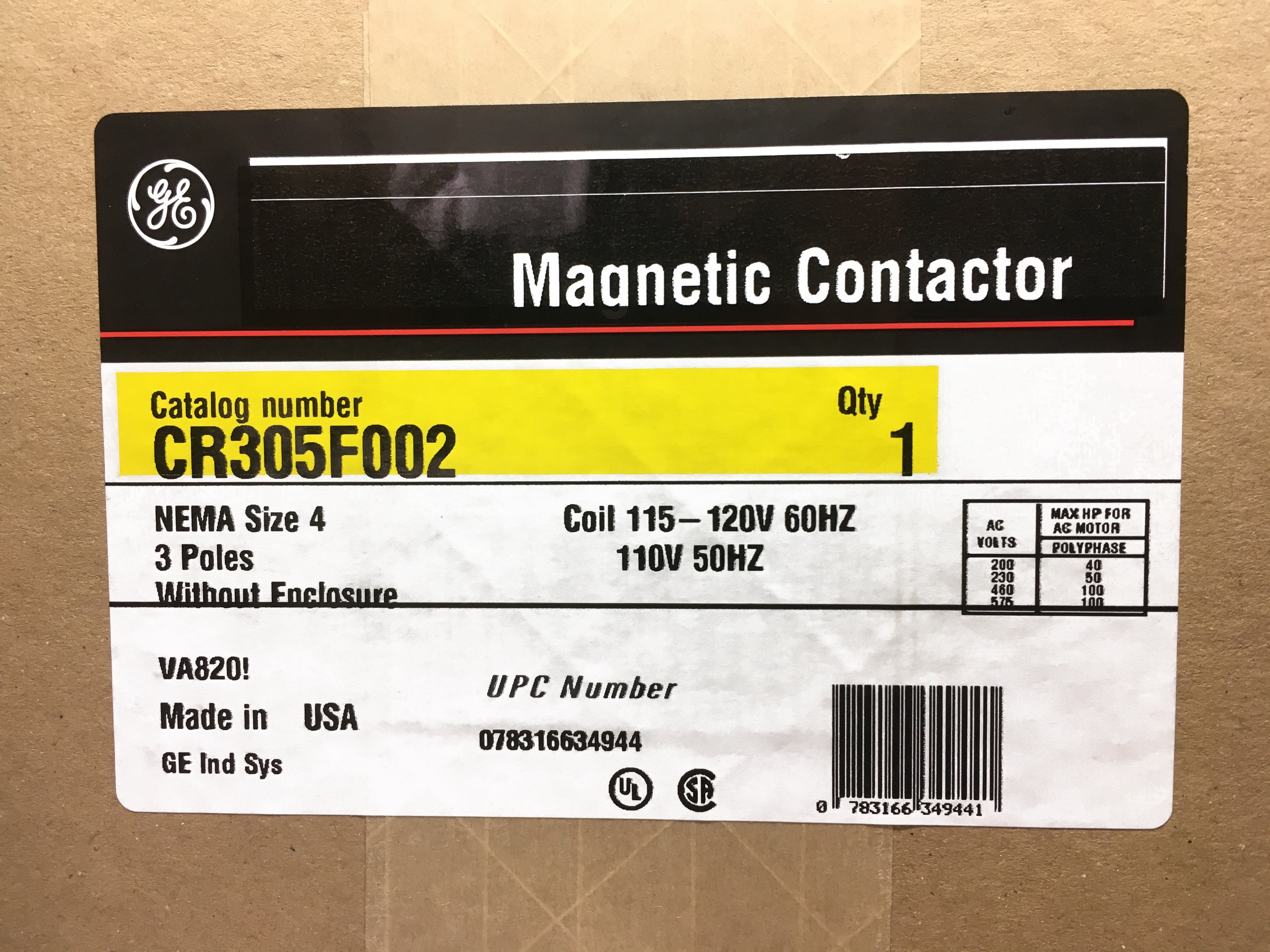

GENERAL ELECTRIC CR305F002 GED CONTACTOR 135 AMP (EA) REPLACEMENT MPN

Product Description

The GENERAL ELECTRIC CR305F002 is a magnetic contactor designed for panel building and controlling AC motor applications. This non-reversing contactor has a current rating of 135 amperes when enclosed and 150 amperes when open. It runs on a coil voltage of one hundred ten volts AC at fifty hertz or one hundred fifteen to one hundred twenty volts AC at sixty hertz.

• Three poles for robust switching capabilities.
• Open enclosure and vertical mounting for easy installation.
• Rated for a maximum power of sixteen hundred horsepower and maximum voltage of six hundred volts at fifty or sixty hertz.

Product Highlights

The CR305F002 contactor supports applications in motor control, resistance heating, and capacitor circuit load switching.

Product Information

Standard Information

• Manufacturer: GENERAL ELECTRIC
• UPC: 78316634944

Technical Specifications

• Number of Poles: 3
• Current Rating: 135 Ampere (Enclosed), 150 Ampere (Open)
• Coil Voltage: 110 VAC at 50 Hz, 115 to 120 VAC at 60 Hz
• Auxiliary Contact: 1NO
• Mounting: Vertical
• Enclosure: Open
• Size: NEMA 4
• Construction Standard: NEMA
• Maximum Power: 1600 HP
• Maximum Voltage: 600 VAC at 50/60 Hz
• Maximum Current: 2500 Ampere
