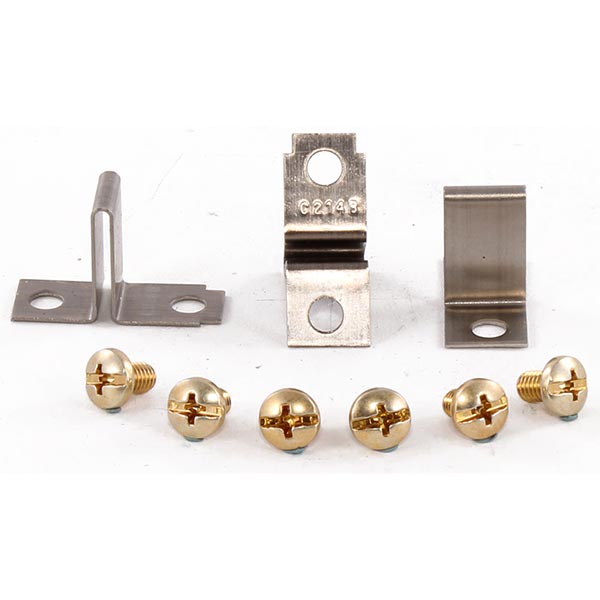

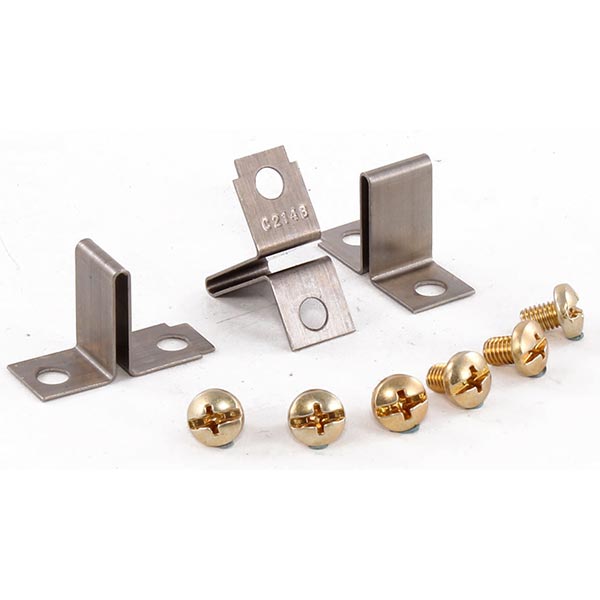

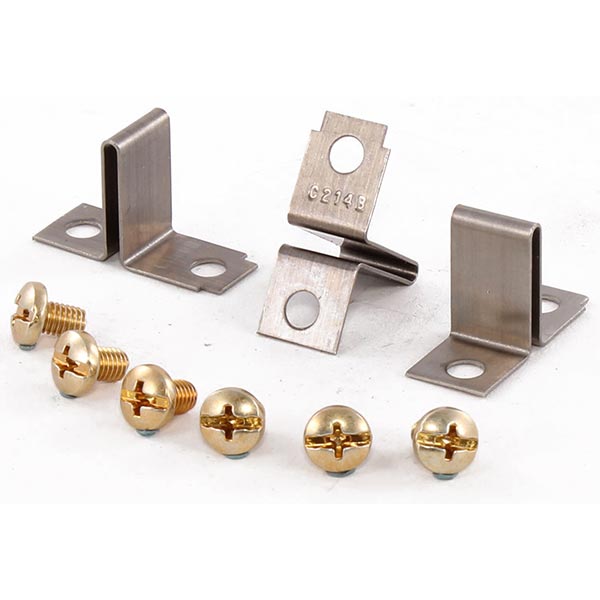

General Electric CR123C214B 3-Phase Overload Relay Heater 20.6 A

Product Description

The General Electric CR123C214B is a 3-phase overload relay heater designed for use in various electrical distribution and control applications. This relay heater has an amperage rating of twenty point six amps and is suitable for use with full voltage starters including the CR1062R, CR1062S, CR123C, CR123F, CR340, and CR341.

• Compatible with several full voltage starters.
• Amperage rating of twenty point six amps.
• Meets ARRA, Buy American Act, and RoHS compliance standards.

Product Highlights

This overload relay heater enhances electrical safety in control panels and other electrical equipment by preventing motor damage due to excessive current.

Product Information

Standard Information

• Country of Origin: UU
• Enclosure Type: NEMA M-0/M-1

Technical Specifications

• Amperage Rating: 20.6 A
• Application: Electrical Distribution and Control Applications
• Package Height: 1.25 in
• Package Length: 1.5 in
• Package Width: 0.75 in
• Package Weight: 0.01 lb
• Size: 1-1/2 in L x 3/4 in W x 1-1/4 in H
• Series: CR123C
• Trip Type: Class 20/Standard
• Type: 3-Phase
