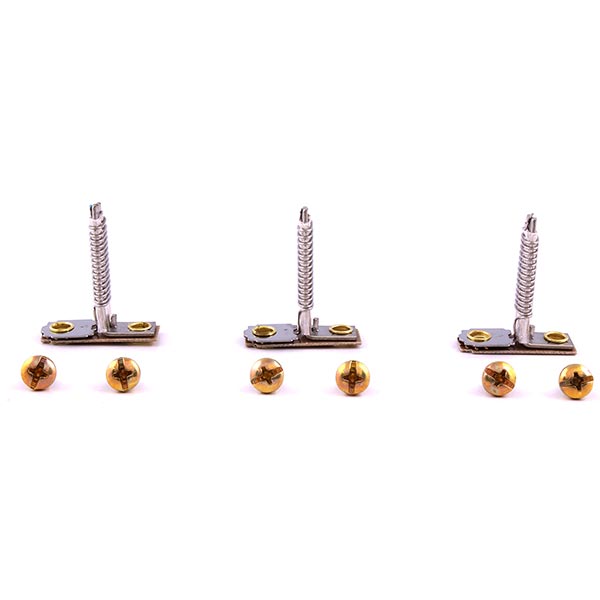

General Electric CR123C163A 3-Phase Class 20 Overload Relay Heater

Product Description

The General Electric CR123C163A is a 3-phase class 20 overload relay heater designed for electrical distribution and control applications. This product is suitable for both 1-phase and 3-phase systems, rated between 1.36 to 1.57 amperes at 1-phase and 1.28 to 1.39 amperes at 3-phase. It is intended for use with CR1062R and CR1062S starters, featuring three overload settings for enhanced protection.

• Compatible with CR1062R and CR1062S starters
• Operating current range: 1.36 to 1.57 A (1-phase), 1.28 to 1.39 A (3-phase)
• Robust NEMA M-0/M-1 enclosure type

Product Highlights

This overload relay heater is compliant with ARRA, Buy American Act, and RoHS standards, making it a reliable choice for professional applications.

Product Information

Standard Information

• Brand: General Electric
• Part Number: N1688

Technical Specifications

• Application: Electrical Distribution and Control Applications
• Country of Origin: UU
• Enclosure Type: NEMA M-0/M-1
• Full Load Current: 1.36 to 1.57/1.28 to 1.39 A
• Mfg Standards/Approvals: ARRA Compliant | Buy American Act Compliant | RoHS Compliant
• Package Height: 1.25 inches
• Package Length: 1.5 inches
• Package Volume: 0.001 cubic feet
• Package Weight: 0.01 lb
• Package Width: 0.5 inches
• Series: CR123C
• Temperature Rating: -25 to 40 degrees Celsius
• Type: 3-Phase Class 20
