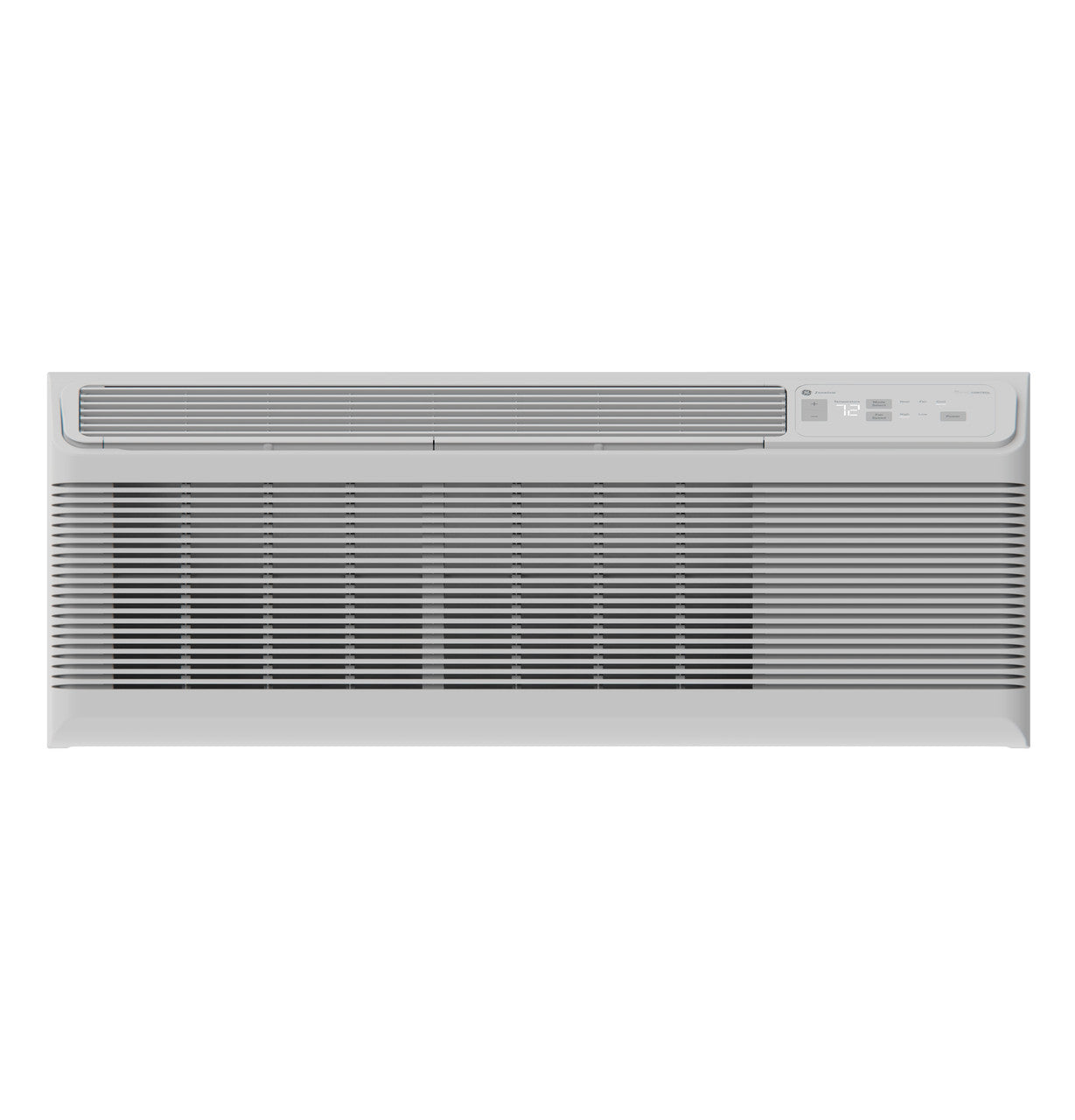

General Electric AZVS15ECXWA Zoneline Heat Pump Unit With Variable Speed Inverter Technology And Corrosion Protection 15,000 Btu, 230/208 Volt

Product Description

The GENERAL ELECTRIC AZVS15ECXWA Zoneline Heat Pump Unit uses environmentally friendly refrigerants and variable speed operation for shorter recovery time and improved efficiency. It features advanced defrost capability for extended heat pump operation down to 0°F. The unit has an easy-to-read interface and utilizes a large cross-flow blower and two EC motors to minimize noise. Perfect Control technology senses temperature, humidity, and occupancy.

• Variable Speed Inverter Technology (4K - 15K BTU)
• R454B refrigerant
• Built-in Wifi, Powered by SmartHQ™

Product Highlights

This Zoneline PTAC offers reliability and is made of high-quality material, tested in extreme environments to ensure peak performance. It includes features like electronic microcomputer control, freeze sentinel, and remote thermostat compatibility.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AZVS15ECXWA
• Country of Origin: US

Technical Specifications

• ACCESSORIES: Accessories Required for Installation RAB42 - Wall Case Outdoor Grille
• CAPACITY: CFM Indoor Fan High 525
• CFM Indoor Fan Low: 250
• Cool BTUH (208V): 14200
• Cool BTUH (230V): 14300
• Cooling BTUH (MAX): 14300
• Cooling EER (BTUH / Watt): 11.0 / 10.9
• Dehumidification (pts./hr.): 2
• FEATURES: Central Desk Control Compatibility Yes
• Chassis Type: Slide-In
• Control Type: Standard Microcomputer Tactile touch pad with LED Display
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2 EC Controlled
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
• Filter Type: Rigid Frame Slide-Out
• Freeze Sentinel: Yes
• Heat - Cool: Yes
• Heat Pump: Yes
• Heat Sentinel: Yes
• Heating - Reverse Cycle - COP: 3.4/3.4
• Heating System: E Heat/High Demand/Hybrid/Boost/HP Only
• HSPF2 Rating: 7
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Power Factor: 95
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Charge (oz.): 29
• Refrigerant Type: R454B
• Rotary Compressor: Yes
• SEER2: 16
• Sensible Heat Ratio: 0.75
• Temperature Limiting: Electronic 24-Step
• Temperature Range: 60 - 85 F
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
• WiFi Connect: Built-In
• Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
• Cooling - Amperes: 5.8/6.4
• Cooling - Watts: 1295/1300
• Heating BTUH: 4,000 - 14,000
• Heating - Electric - Heater Amps: 5.2/5.8
• Heating - Electric - Heater Watts: 1165
• Input Voltage: 208 V
• Voltage (MAX): 230 V
• Overall Depth: 20.8125 in
• Overall Height: 16 in
• Overall Width: 42 in
