Product Description

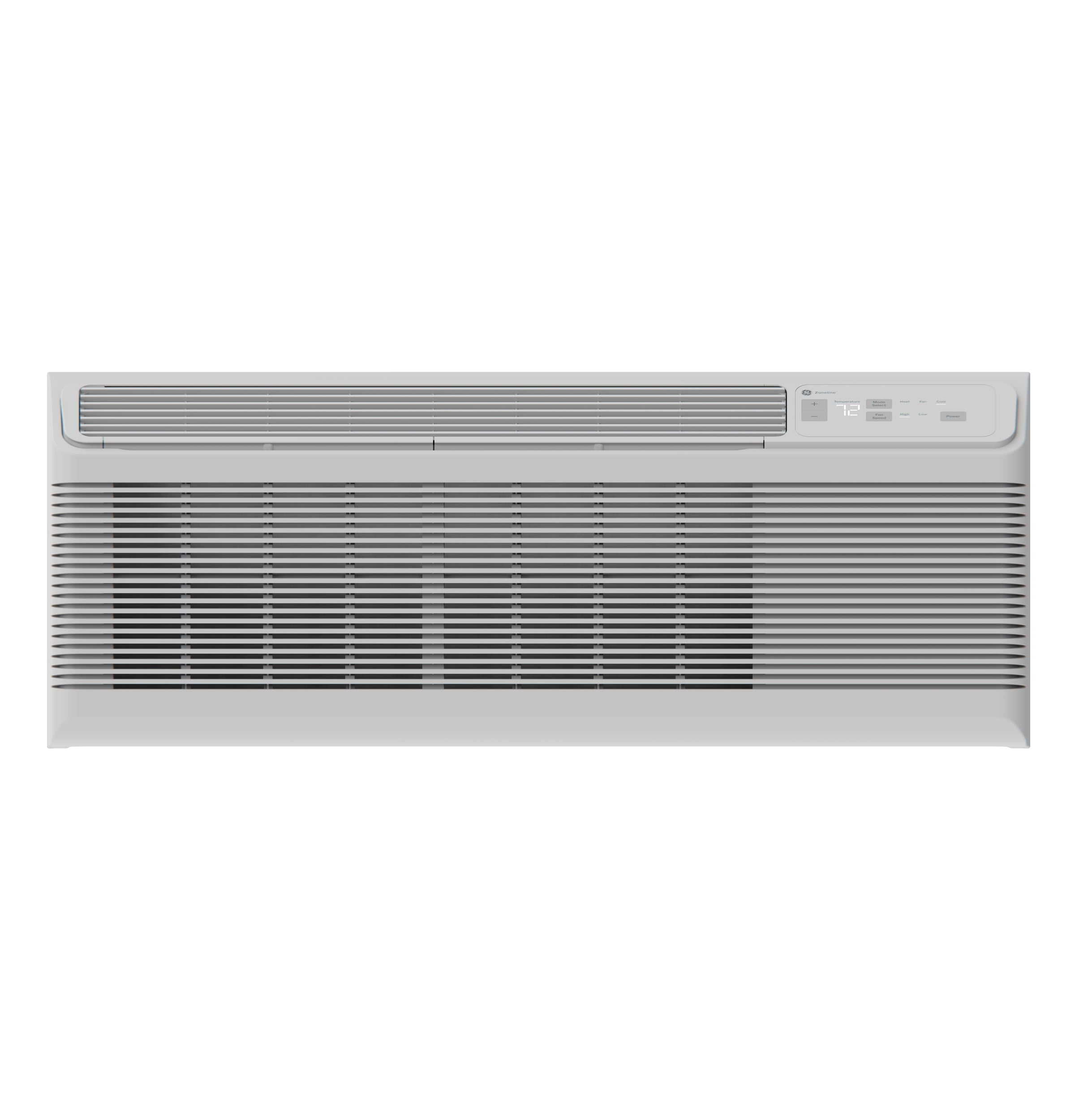

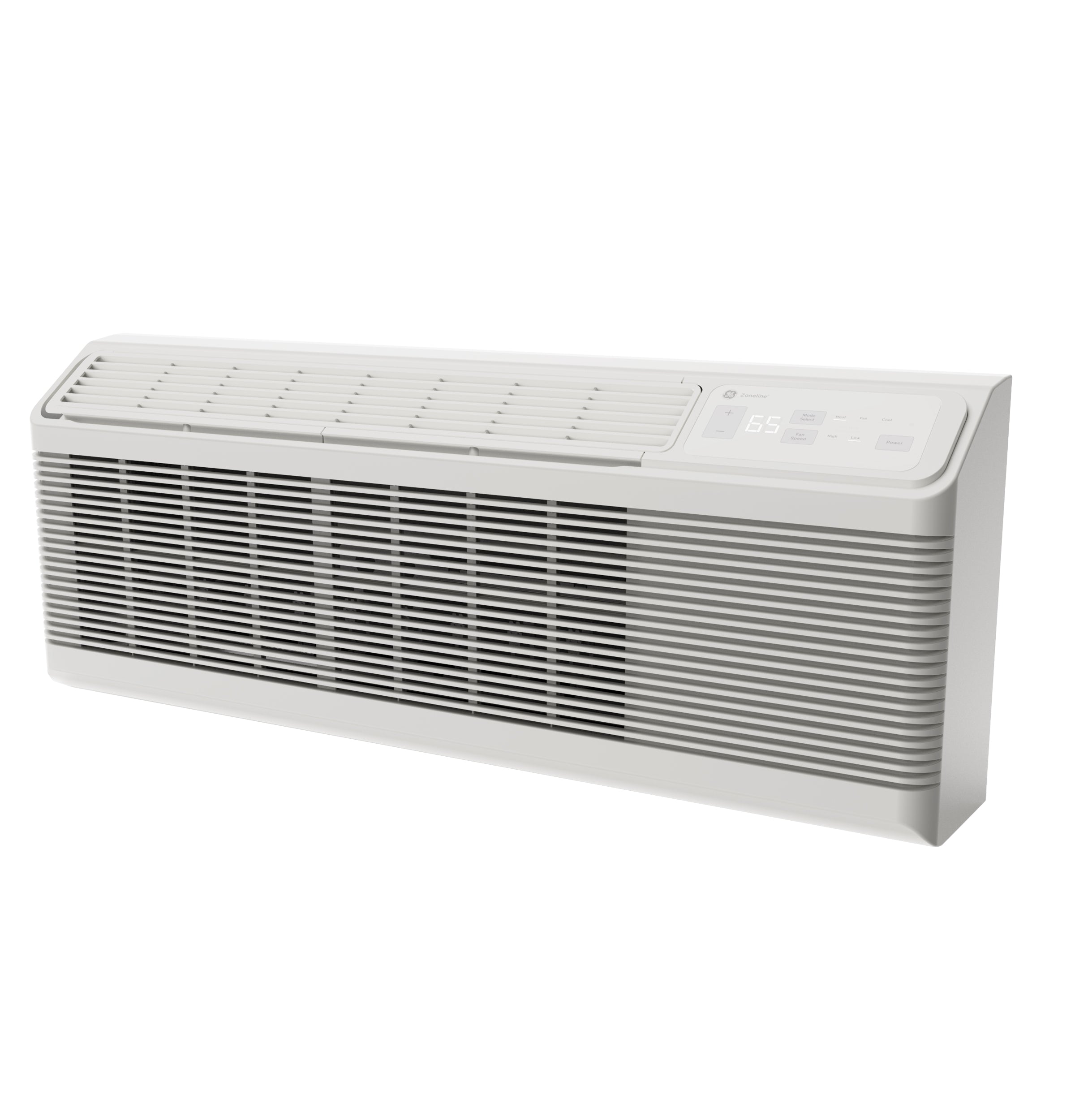

The GENERAL ELECTRIC AZHS15ECXXA Zoneline Heat Pump Fixed Speed Unit with Corrosion Protection features R454B refrigerant. It provides heat pump operation down to 25°F and includes a boost heat option. The unit has electronic touch controls with an LED display and operates quietly with a baked-on mastic sound barrier. Designed with a corrosion protection package and SMC basepan and bulkhead.
- R454B - Most environmentally friendly refrigerant on the market
- Heat pump down to 25°F

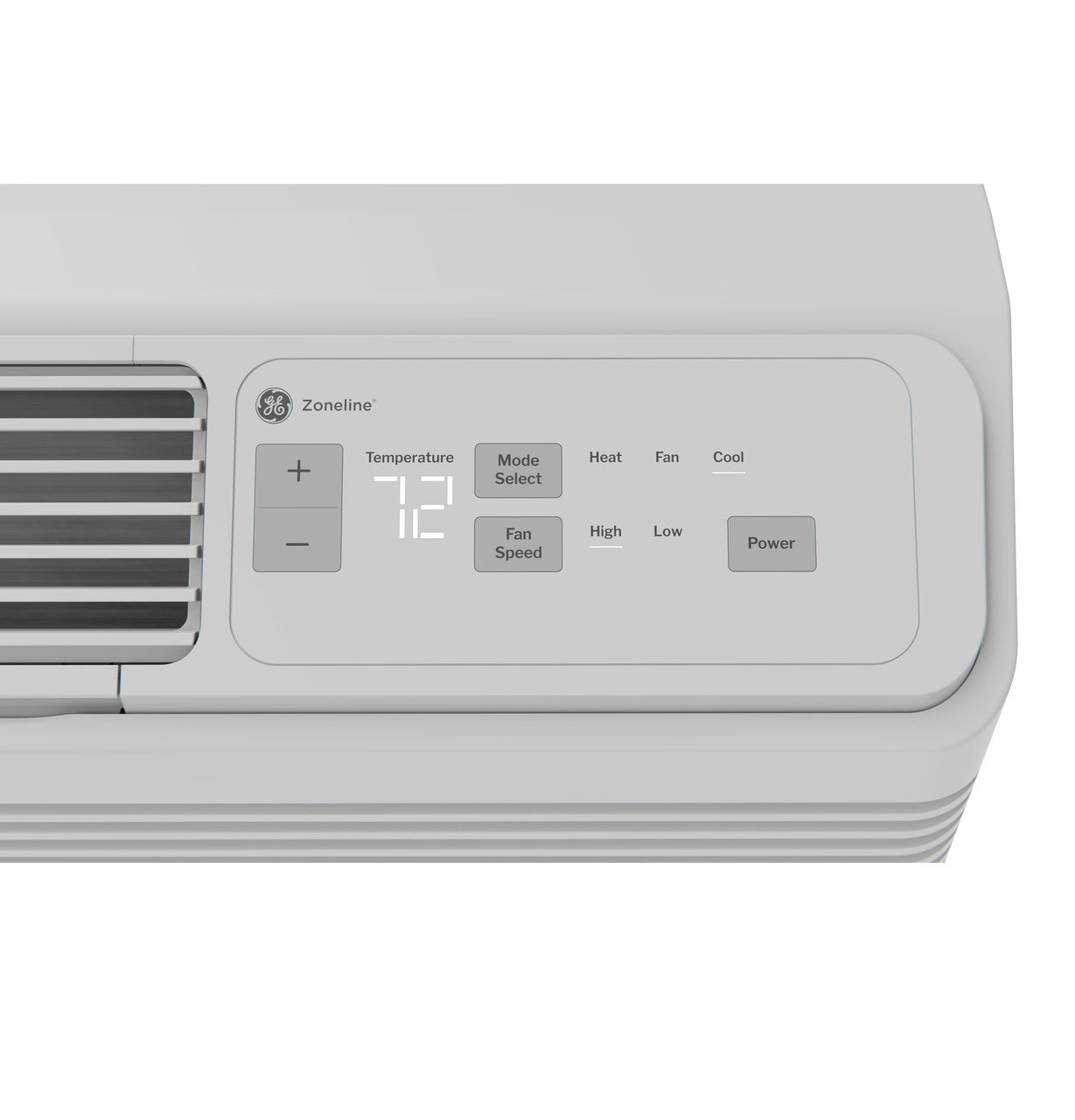

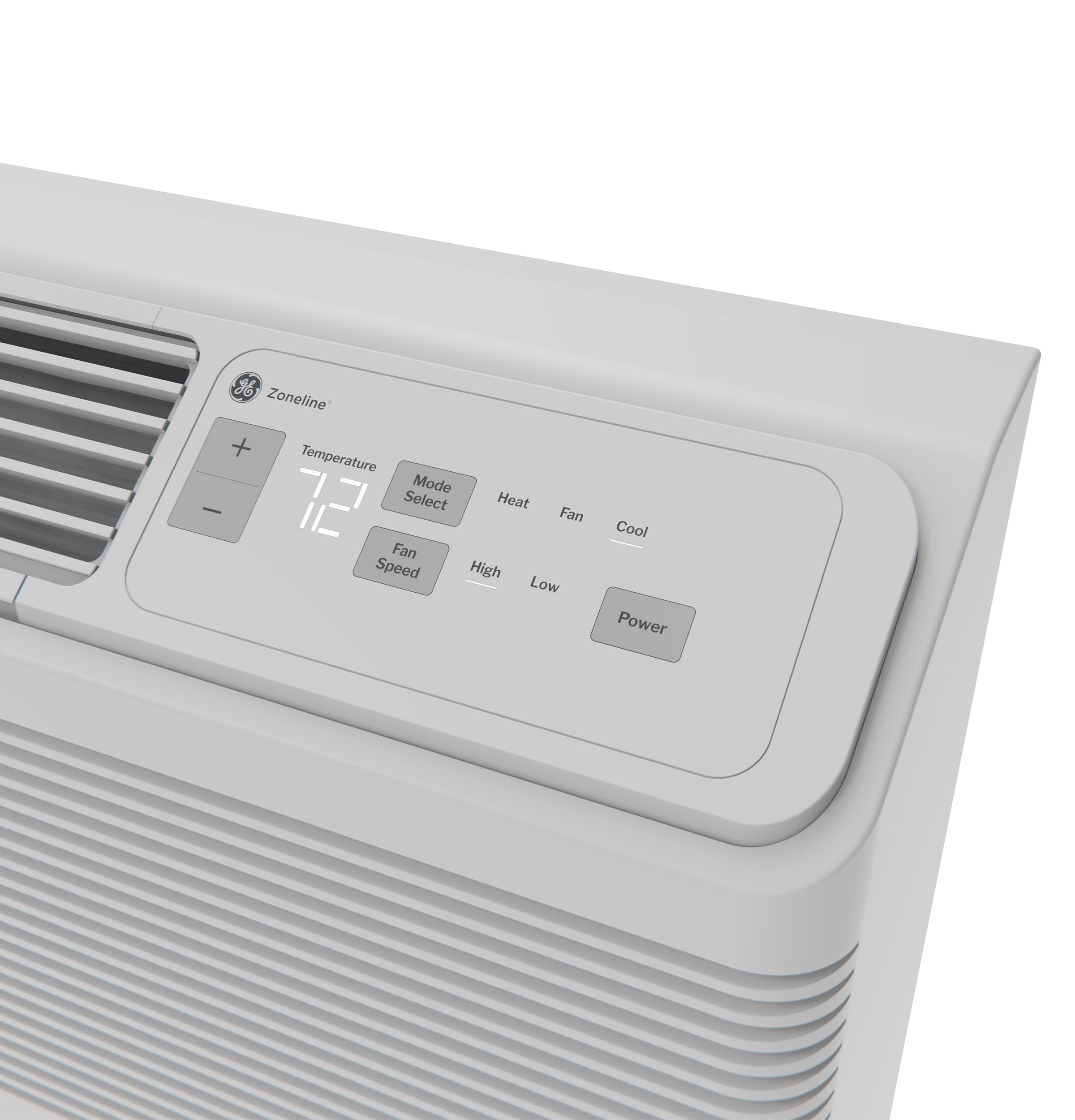

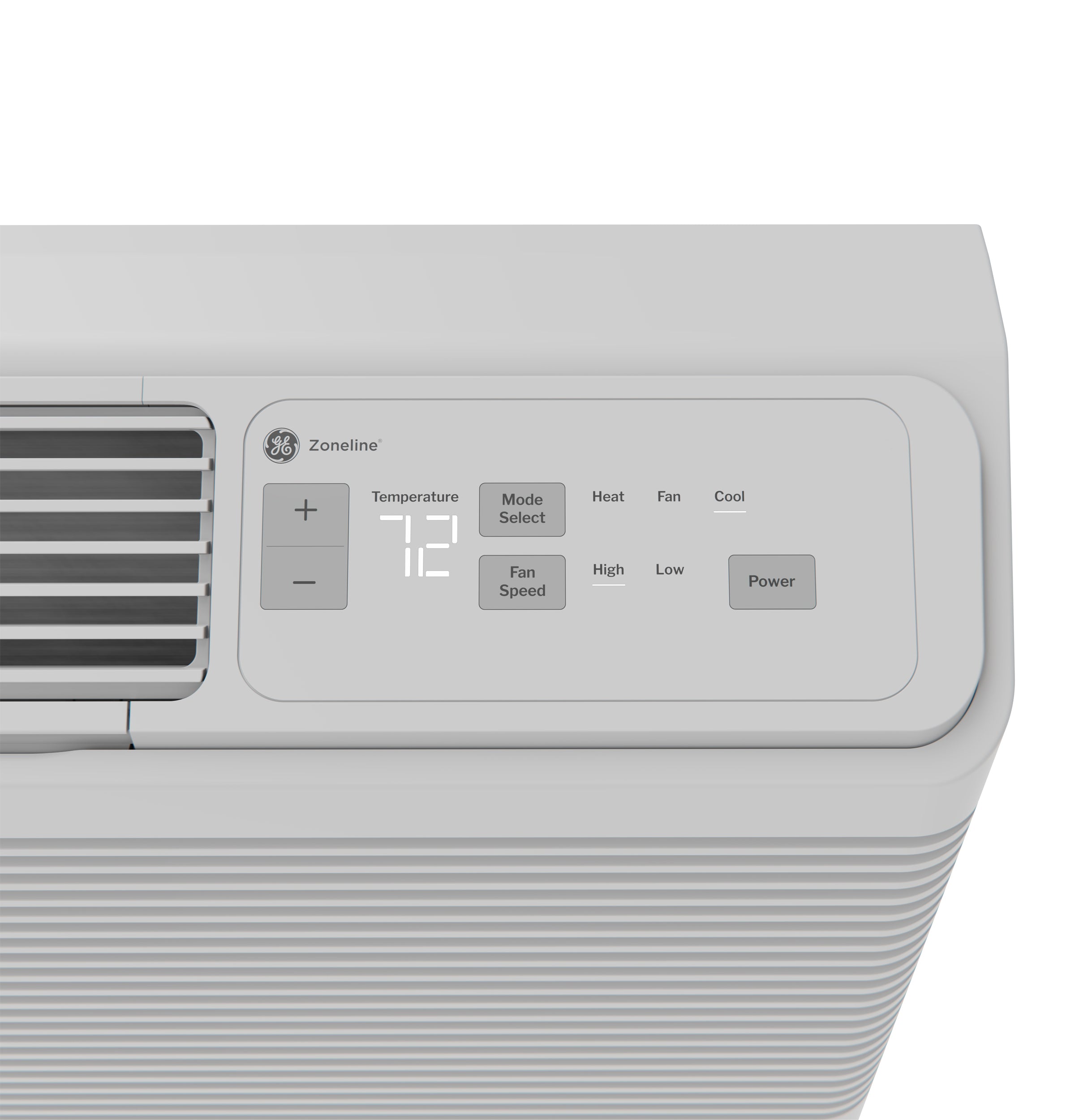

- Electronic touch controls with LED display
Product Highlights
This GE Zoneline unit offers efficient heating and cooling with corrosion protection for lasting performance.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZHS15ECXXA
-
Country of Origin: America
Technical Specifications
-
Accessories: Accessories Required for Installation
RAB42 - Wall Case
Outdoor Grille
-
CFM Indoor Fan High: 495
-
CFM Indoor Fan Low: 330
-
Cooling BTUH (MAX): 14,600 Btu
-
Cooling BTUH (MIN): 13500
-
Cooling EER (BTUH / Watt): 10.4
-
Dehumidification (pts./hr.): 4.2 (High Speed)
-
Vent CFM (high fan at zero ESP): 47.5
-
Central Desk Control Compatibility: Yes
-
Chassis Type: Slide-In
-
Control Type: Standard Microcomputer
-
Corrosion Treated: Yes
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor: 2
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
-
Filter Type: Rigid Frame
Slide-Out
-
Freeze Sentinel: Yes
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heat Sentinel: Yes
-
Heating - Reverse Cycle - COP: 3.4
-
Heating System: Heat Pump With Backup Resistance Heat
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 95
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Charge (oz.): 34
-
Refrigerant Type: R454B
-
Rotary Compressor: Yes
-
Sensible Heat Ratio: 0.75
-
Temperature Limiting: Electronic 24-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control
Vent Air Filter
Outdoor Vent Control - 3 Positions
-
Cooling - Amperes: 5.4
-
Cooling - Watts: 1395
-
Heating BTUH: 13500
-
Heating - Electric - Heater Amps: 4.5
-
Heating - Reverse Cycle - Watts: 1220
-
Voltage (MAX): 265 V
-
Overall Depth: 20.8125 in
-
Overall Height: 16 in
-
Overall Width: 42 in
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Electric Heat Strip Size (kW - @265V): 2.4 @15 amps / 3.4 @20 amps / 4.8 @30 amps (H; 3.8kW@L)
-
Electric Heating BTUs (@265V): 8100 / 11600 / 16300 (H)
-
Electric Heating Amps (@265V): 9.3 / 13.1 / 18.4
-
Electric Heating Watts (@265V): 2400 / 3400 / 4800 (H)
-
Heat Pump BTUs (@265V): 13500
-
Heat Pump Heating Amps (@265V): 4.8
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Voltage: 265-277V
-
Circuit Breaker Size (Amps): 15 / 20 / 30
-
Indoor Fan CFM (High/Low): 440/305
-
Fresh Air Vent CFM (Fully Open High Fan): 44*
