Product Description

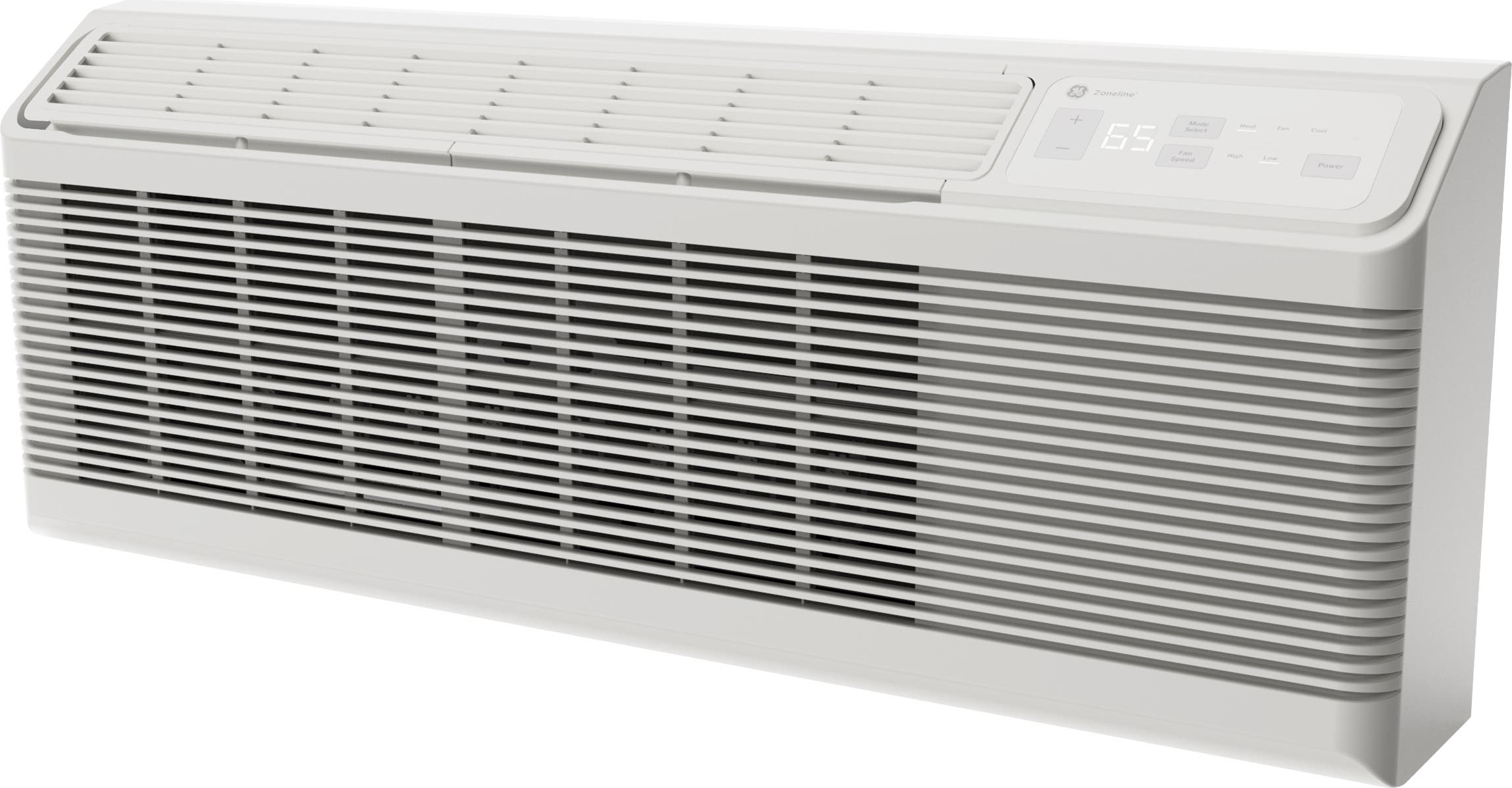

The GENERAL ELECTRIC AZHS15DRXXA Zoneline Heat Pump is a fixed speed unit with ICR, operating at 230/208 Volt and 15,000 BTU. It features R454B refrigerant and internal condensate removal. Designed with electronic touch controls with LED display and a quiet operation due to its baked-on mastic sound barrier. Also features a corrosion protection package and SMC basepan and bulkhead.
- Utilizes R454B refrigerant, which is environmentally friendly.
- Features internal condensate removal (ICR).
- Operates as a heat pump down to 25°F.
Product Highlights
This Zoneline unit provides efficient heating and cooling with user-friendly electronic controls and quiet operation. Ideal for maintaining comfortable temperatures while minimizing environmental impact.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZHS15DRXXA
-
Country of Origin: US
Technical Specifications
-
Color Appearance: Grey White
-
CFM Indoor Fan High: 495
-
CFM Indoor Fan Low: 330
-
Cooling BTUH (MAX): 15100 Btu
-
Cooling BTUH (MIN): 14,700 Btu
-
Cooling EER (BTUH / Watt): 10.4 / 10.4
-
Dehumidification (pts./hr.): 4.1 (High Speed)
-
Vent CFM (high fan at zero ESP): 47.5
-
Central Desk Control Compatibility: Yes
-
Chassis Type: Slide-In
-
Control Type: Standard Microcomputer
-

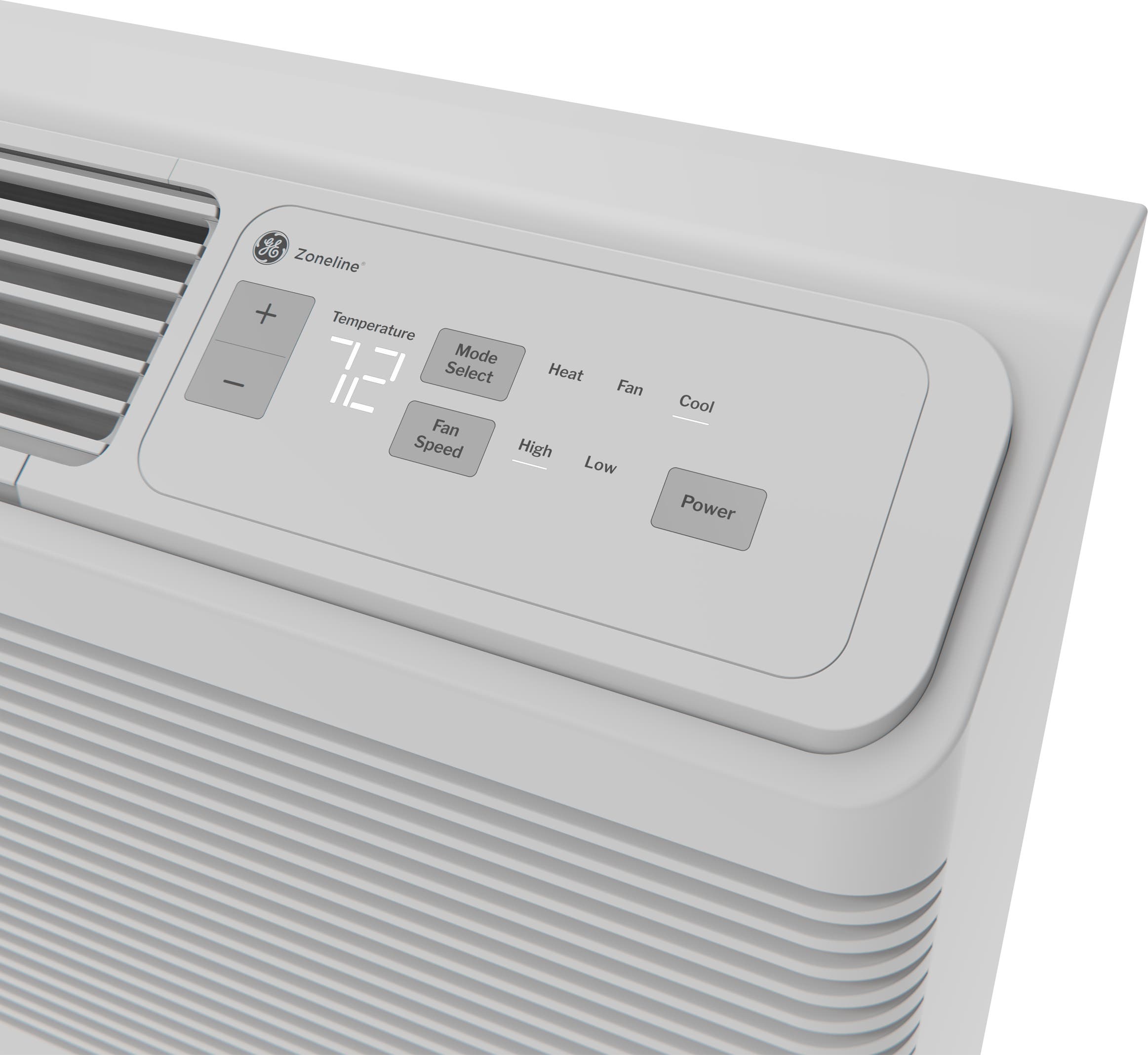

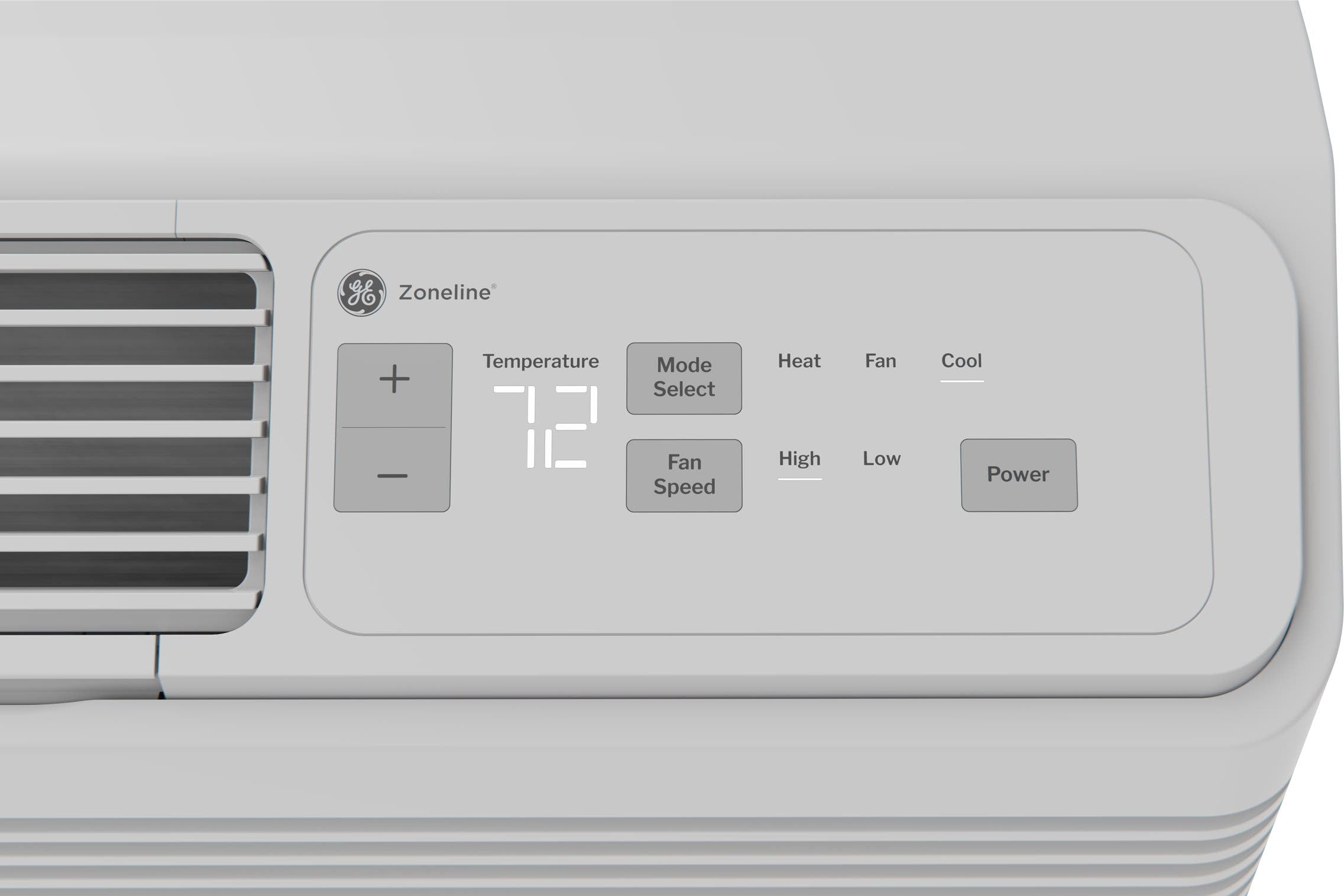

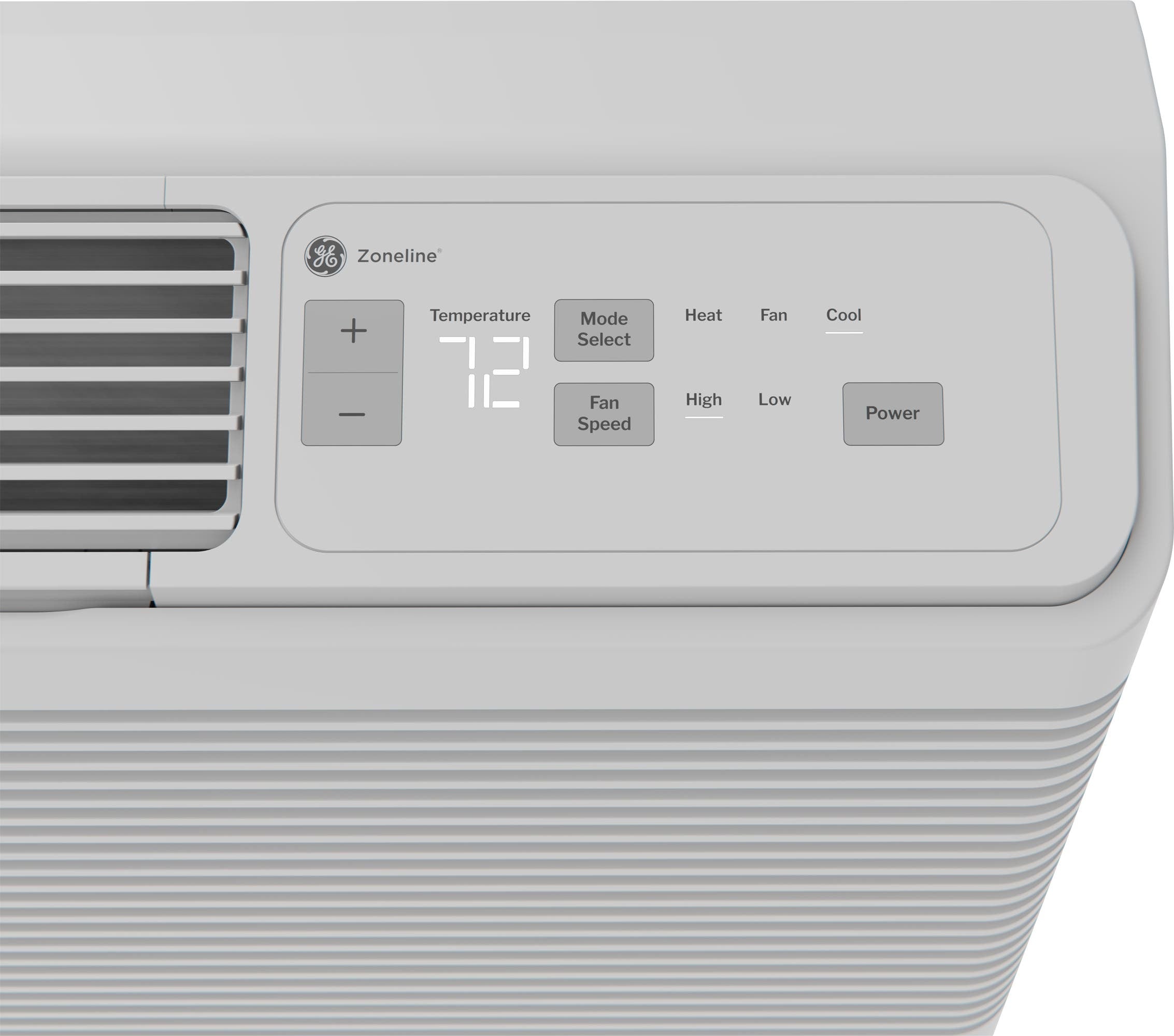

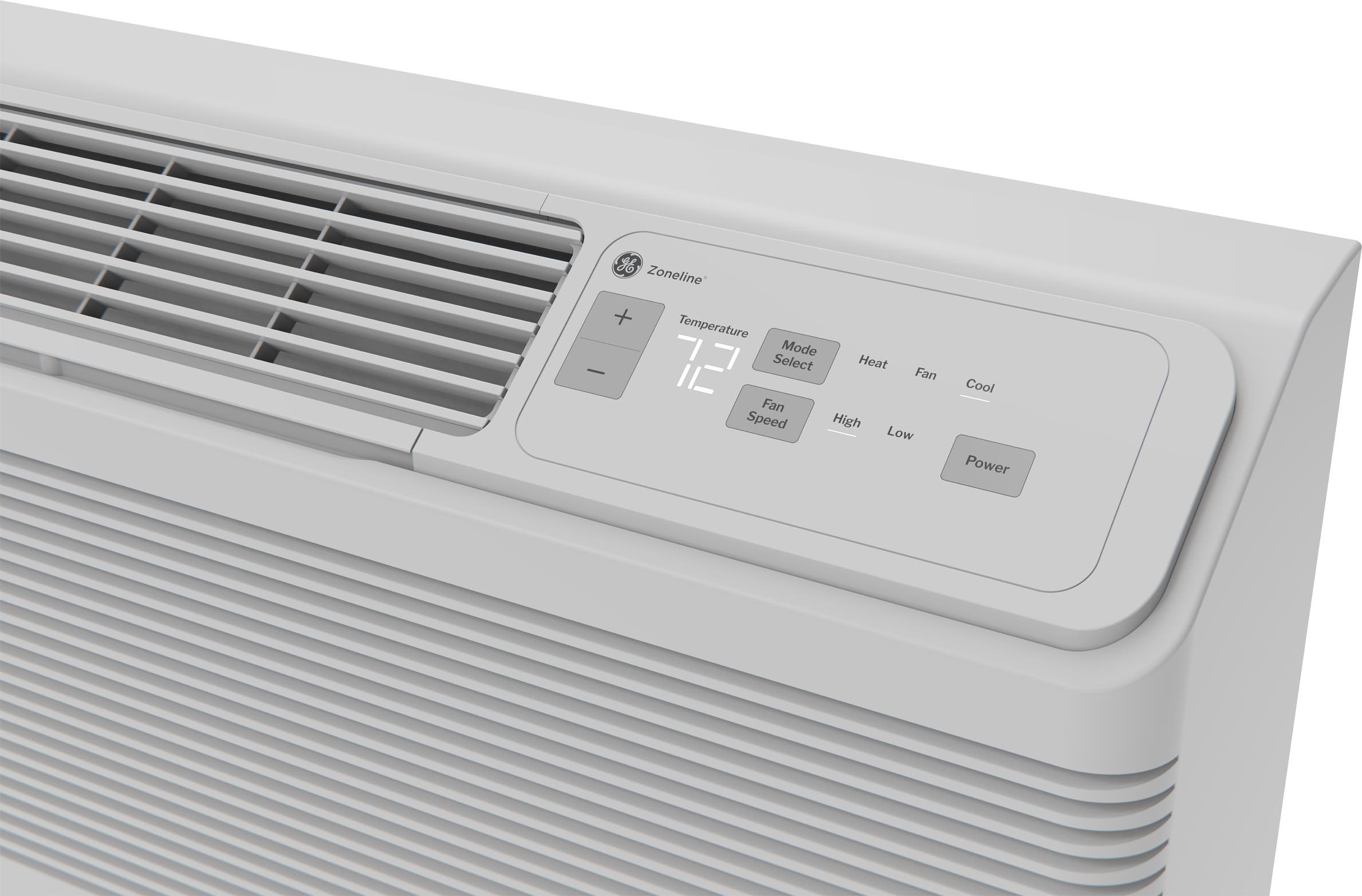

Tactile touch pad with LED Display: Yes
-
Corrosion Treated: Yes
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor: 2
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
-
Filter Type: Rigid Frame
Slide-Out
-
Freeze Sentinel: Yes
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heat Sentinel: Yes
-
Heating - Reverse Cycle - COP: 3.4/3.5
-
Heating System: Heat Pump With Backup Resistance Heat
-
Internal Condensate Removal (ICR): Yes
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 95
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Charge (oz.): 34
-
Refrigerant Type: R454B
-
Rotary Compressor: Yes
-
Sensible Heat Ratio: 0.75
-
Temperature Limiting: Electronic 24-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control
Vent Air Filter
Outdoor Vent Control - 3 Positions
-
Zoneline Features: "Smart Fan" Fan Cycle Control
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Random Twist/Length Segment Tangential Blower
-
Cooling - Amperes: 6.7/7.1
-
Cooling - Amperes; F.L. - Cooling: 6.1/6.6
-
Cooling - Amperes; L.R.: 31.5
-
Cooling - Watts: 1450/1410
-
Heating BTUH: 14000 / 13800
-
Heating - Electric - Heater Amps: 5.6/6.0
-
Heating - Reverse Cycle - Watts: 1235/1225
-
Voltage (MAX): 230 V
-
Voltage (MIN): 208 V
-
Approximate Shipping Weight: 120 lb
-
Net Weight: 110 lb
-
Overall Depth: 20.8125 in
-
Overall Height: 16 in
-
Overall Width: 42 in
-
PTAC: Yes
-
Slide In: Yes
-
Heating: Yes
-
Vented: Yes
-
Trim Kit Included: No
-
Fan Speeds: 3
-
Remote Control Included: No
-
Product Weight (lbs): 110
-
Cooling Capacity BTU (max): 15100
-
Cooling Capacity BTU (min): 14700
-
Power Cord Included: No
-
Heating Capacity BTU: 14000
-
UL Listed: Yes
-
Connection Type: Plug-In
-
Maximum Amperage: 5.6 Amp
-
Maximum Voltage: 230V
