Product Description

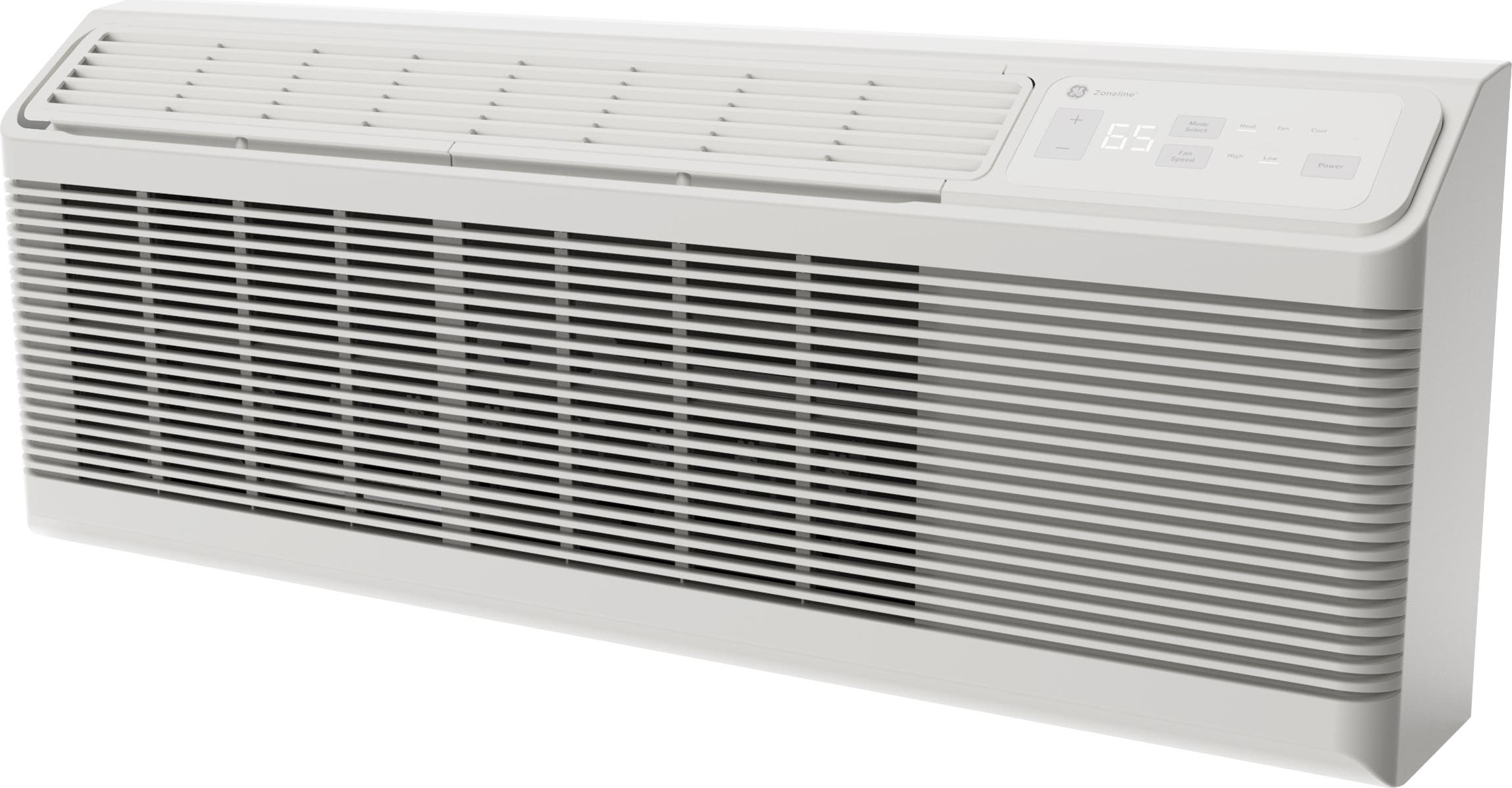

The GENERAL ELECTRIC AZHS15DCXXA Zoneline heat pump is a fixed speed unit with corrosion protection, operating at 230/208 Volts and 15,000 BTU. Designed and assembled in America, it features R454B refrigerant and a heat pump effective down to 25°F. It also offers a boost heat option and electronic touch controls with LED display.
- Features a corrosion protection package and SMC basepan and bulkhead.
- Equipped with electronic temperature limiting and a fresh air vent.
- Offers quiet operation due to a baked-on mastic sound barrier.
Product Highlights
This Zoneline heat pump provides efficient heating and cooling with user-friendly electronic controls and robust corrosion protection.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZHS15DCXXA
-
Country of Origin: US
Technical Specifications
-
ACCESSORIES: Accessories Required for Installation RAB42 - Wall Case Outdoor Grille
-
APPEARANCE: Color Appearance Grey White
-
CFM Indoor Fan High: 495
-
CFM Indoor Fan Low: 330
-
Cooling BTUH (MAX): 15100
-
Cooling BTUH (MIN): 14,700 Btu
-
Cooling EER (BTUH / Watt): 10.4 / 10.4
-
Dehumidification (pts./hr.): 4.1 (High Speed)
-
Vent CFM (high fan at zero ESP): 47.5
-
Central Desk Control Compatibility: Yes
-
Chassis Type: Slide-In
-

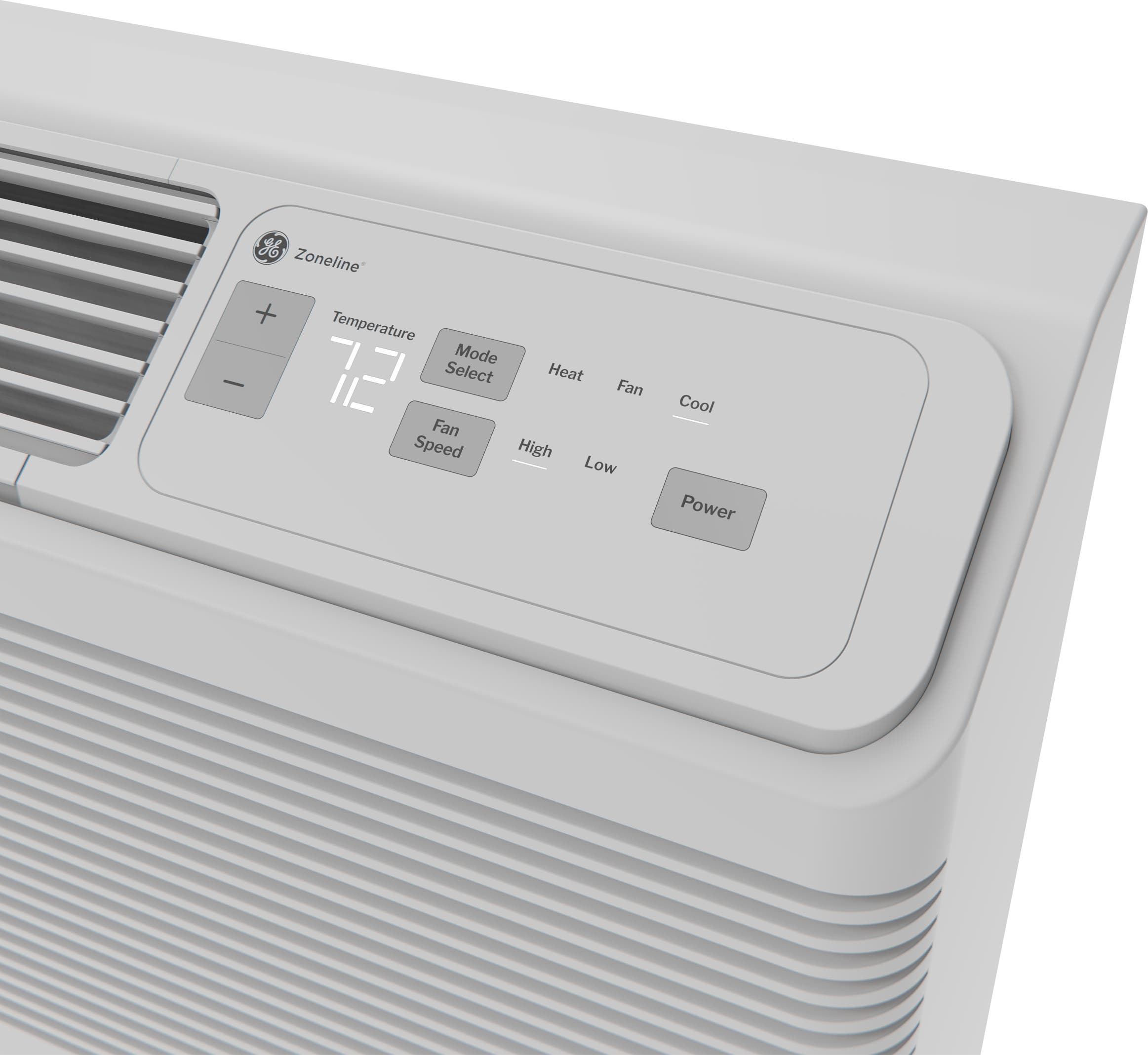

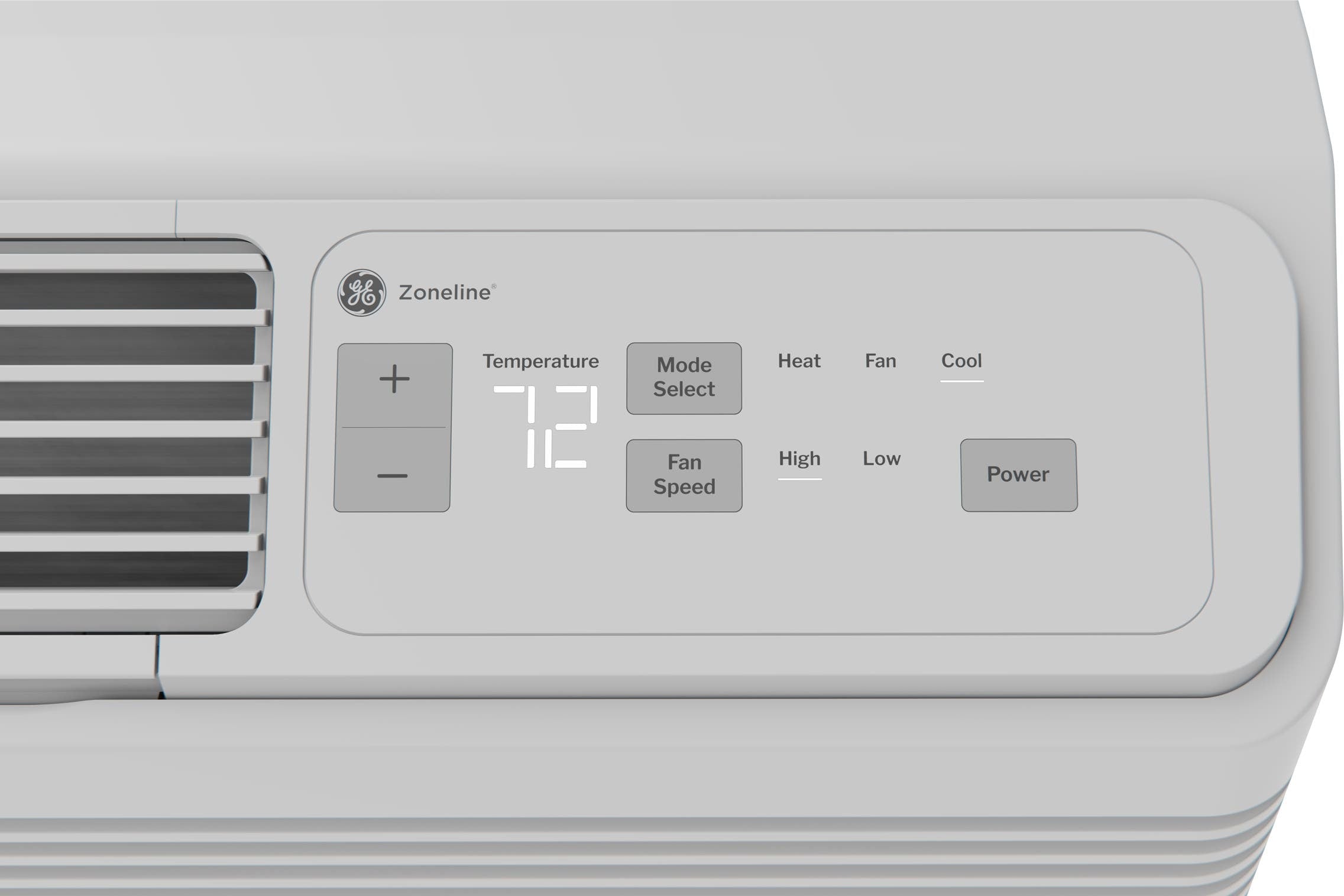

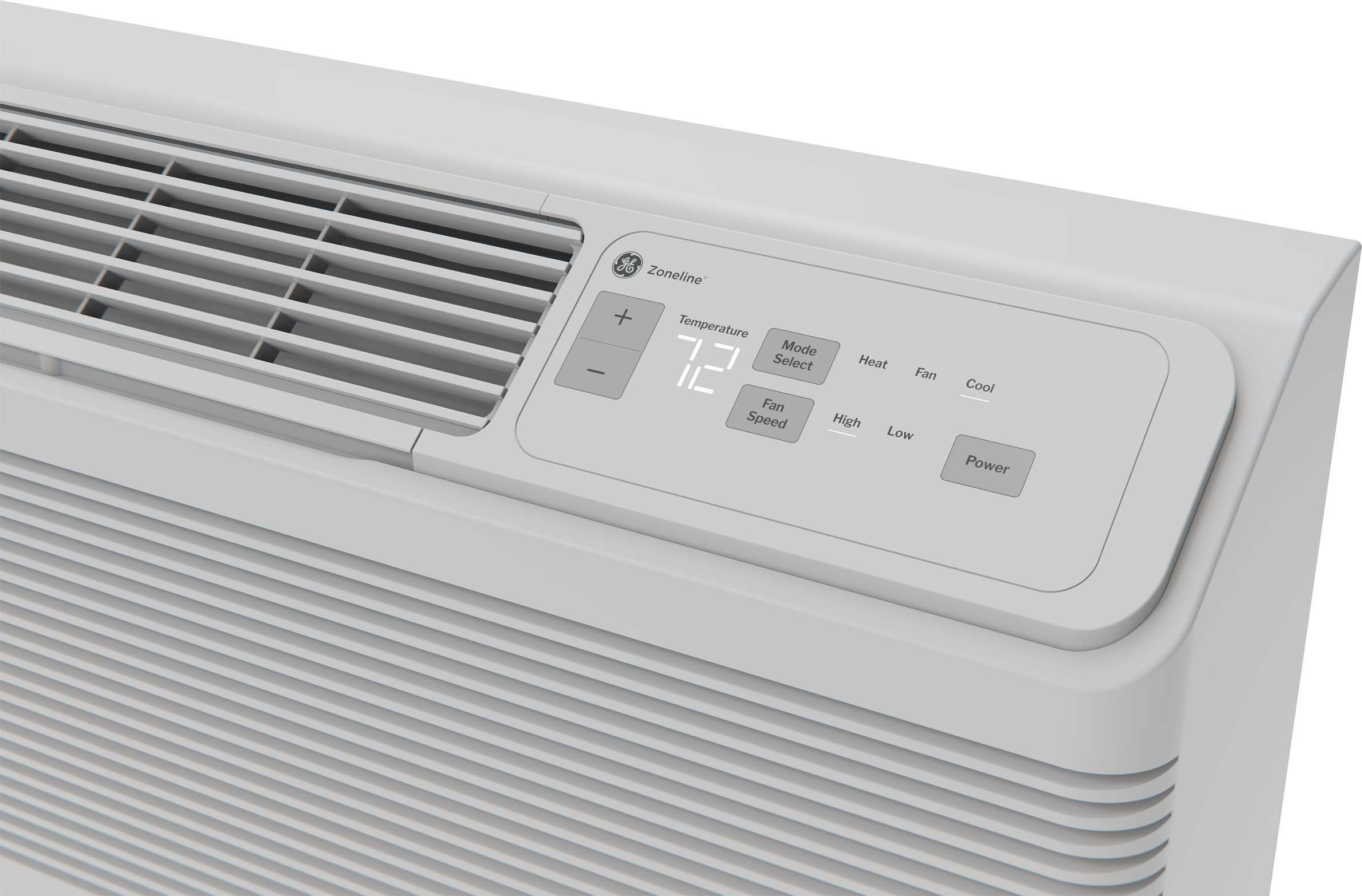

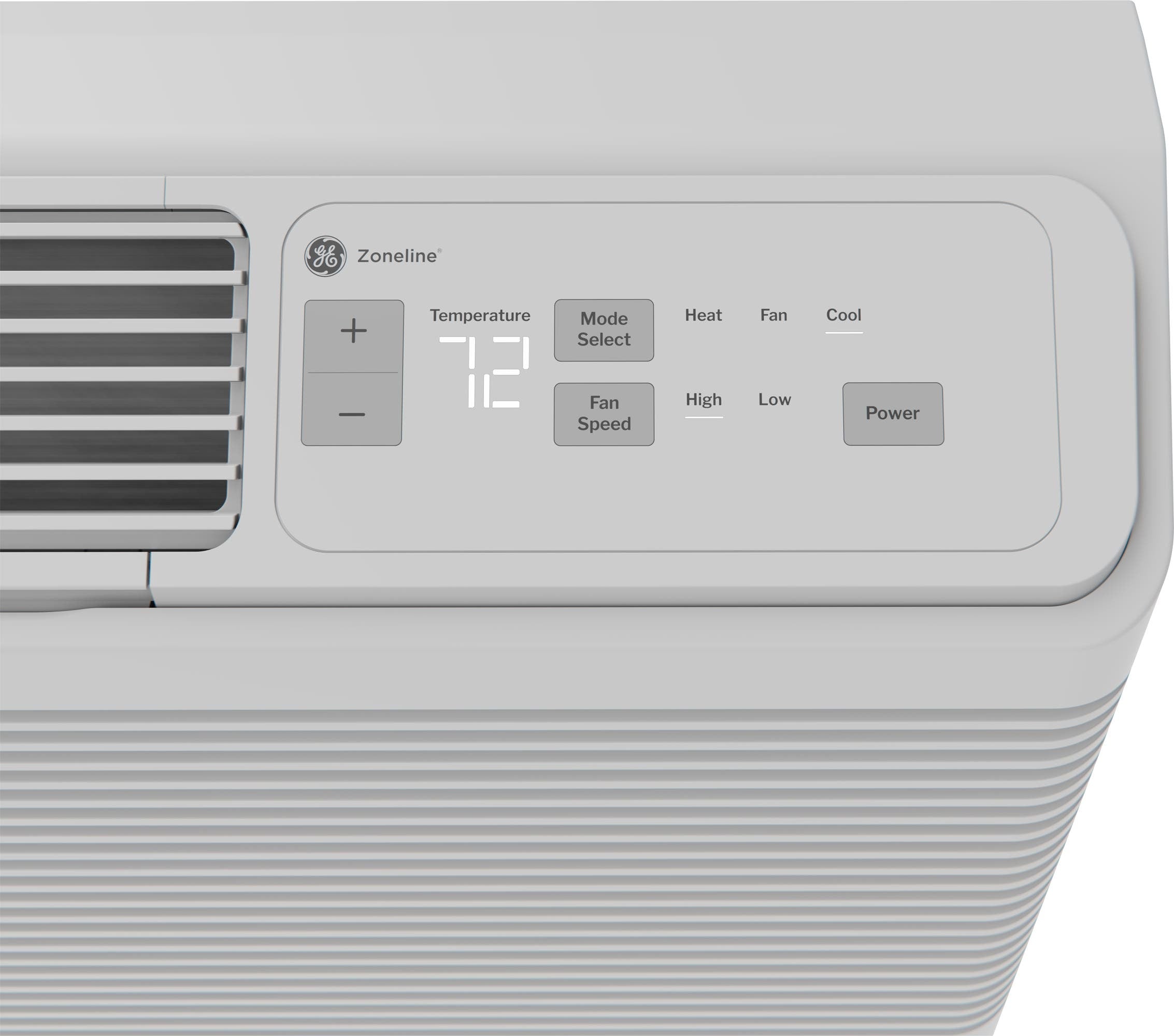

Control Type: Standard Microcomputer Tactile touch pad with LED Display
-
Corrosion Treated: Yes
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor: 2
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating
-
Filter Type: Rigid Frame Slide-Out
-
Freeze Sentinel: Yes
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heat Sentinel: Yes
-
Heating - Reverse Cycle - COP: 3.3/3.4
-
Heating System: Heat Pump With Backup Resistance Heat
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 95
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Charge (oz.): 34
-
Refrigerant Type: R454B
-
Rotary Compressor: Yes
-
Sensible Heat Ratio: 0.75
-
Temperature Limiting: Electronic 24-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
-
Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
-
Cooling - Amperes: 6.7/7.1
-
Cooling - Amperes; F.L. - Cooling: 6.2/6.7
-
Cooling - Amperes; L.R.: 31.5
-
Cooling - Watts: 1450/1410
-
Heating BTUH: 13500 / 13300
-
Heating - Electric - Heater Amps: 5.6/6.0
-
Heating - Reverse Cycle - Watts: 1195/1180
-
Voltage (MAX): 230 V
-
Voltage (MIN): 208 V
-
Approximate Shipping Weight: 118 lb
-
Net Weight: 108 lb
-
Overall Depth: 20-13/16 in
-
Overall Height: 16 in
-
Overall Width: 42 in
-
Air Conditioner Type: PTHP
-
Cooling BTU: 15,000 BTU
-
Machine Volts: 208/230
-
Machine Amps: Universal
-
Plug Type: Universal
-
Controls: Electronic
-
Heat: Heat Pump
-
Heater Size (KW): Universal
-
Fits Standard 42" x 16" Sleeve: Yes
-
Product Length: 42
-
Product Width: 20.5
-
Product Height: 16
-
Energy Star Certified: No
-
Automatic Restart: Yes
-
Seacoast Protection: Yes
-
Number of Fan Motors: 2
-
Fan Speeds: 2
-
ADA Compliant: No
-
Energy Efficiency Rating (EER): 10.4
-
COP Rating: 3.3
-
Sleeve Included: No
-
Exterior Grille Included: No
-
Maximum Cooling Watts: 1390
-
Maximum Cooling Amps: 6.7
-
Actual Cooling BTUs @ 208V: 14700
-
Actual Cooling BTUs @ 230V: 15100
-
Actual Heating BTUs Heat Pump @ 208V: 13300
-
Actual Heating BTUs Heat Pump @ 230V: 13500
-
CFM (Cool/Wet Coil) - High: 495
-
CFM (Cool/Wet Coil) - Low: 330
-
Type: Cooling With Heat Pump
-
Voltage: 208/230V AC
-
AMPS: 15A, 20A, 30A
-
Dehumidification (Pints/Hr): 4.1
-
Digital Controls: YES
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Front Desk Connection: YES
-
Modes: Heat/Cool/Heat-Pump
-
Temprature Limiting: YES
-
Options: Sea Cost Protection
-
Wall Sleeve Dimensions: 42"W X 16"H X 13-3/4"D
-
Weight (Net/Ship): 98/108
-
Air Filtration: Air Filtering
-
Airflow: 330 cfm; 495 cfm
-
Amps: 31.5 A
-
Minimum Average Coverage Area: 550 sq ft
-
Maximum Average Coverage Area: 700 sq ft
-
Compatible Wall Sleeve Manufacturer Model Number: RAB42MG; RAB42PG
-
Compressor Technology: Fixed Output (Standard)
-
Compressor Type: Rotary
-
Control Location: Handheld Remote
-
Maximum Cooling Capacity: 15,100 BtuH
-
For Sleeve Depth: 13-3/4 in
-
For Sleeve Height: 16 in
-
For Sleeve Width: 42 in
-
Maximum Heat Pump Heating Capacity: 13,500 BtuH
-
Heating Method: Heat Pump
-
Hz: 60 Hz
-
Includes: Power Cord
-
Includes Wall Sleeve: Sleeve Included
-
Number of Speeds: 1
-
Operation Mode: Cooling/Heating
-
Outside Make-Up Air: Not Make-Up Capable
-
Phase: Single
-
Programming Capability: Programmable with Optional Thermostat
-
Refrigerant Precharge: 34 oz
-
Remote Control Functions: No Remote Control
-
Reverse Cycle Heat COP: 3.3/3.4
-
Smart Connectivity: No Connectivity
-
Series: Zoneline
-
PTAC: Yes
-
Slide In: Yes
-
Heating: Yes
-
Vented: Yes
-
Fresh Air: Yes
-
Trim Kit Included: No
-
Max CFM: 495
-
Remote Control Included: No
-
Product Weight (lbs): 108
-
Cooling Capacity BTU (max): 15100
-
Cooling Capacity BTU (min): 14700
-
Power Cord Included: No
-
Cooling Watts: 1450/1410
-
Heating Capacity BTU: 13500
-
UL Listed: Yes
