Product Description

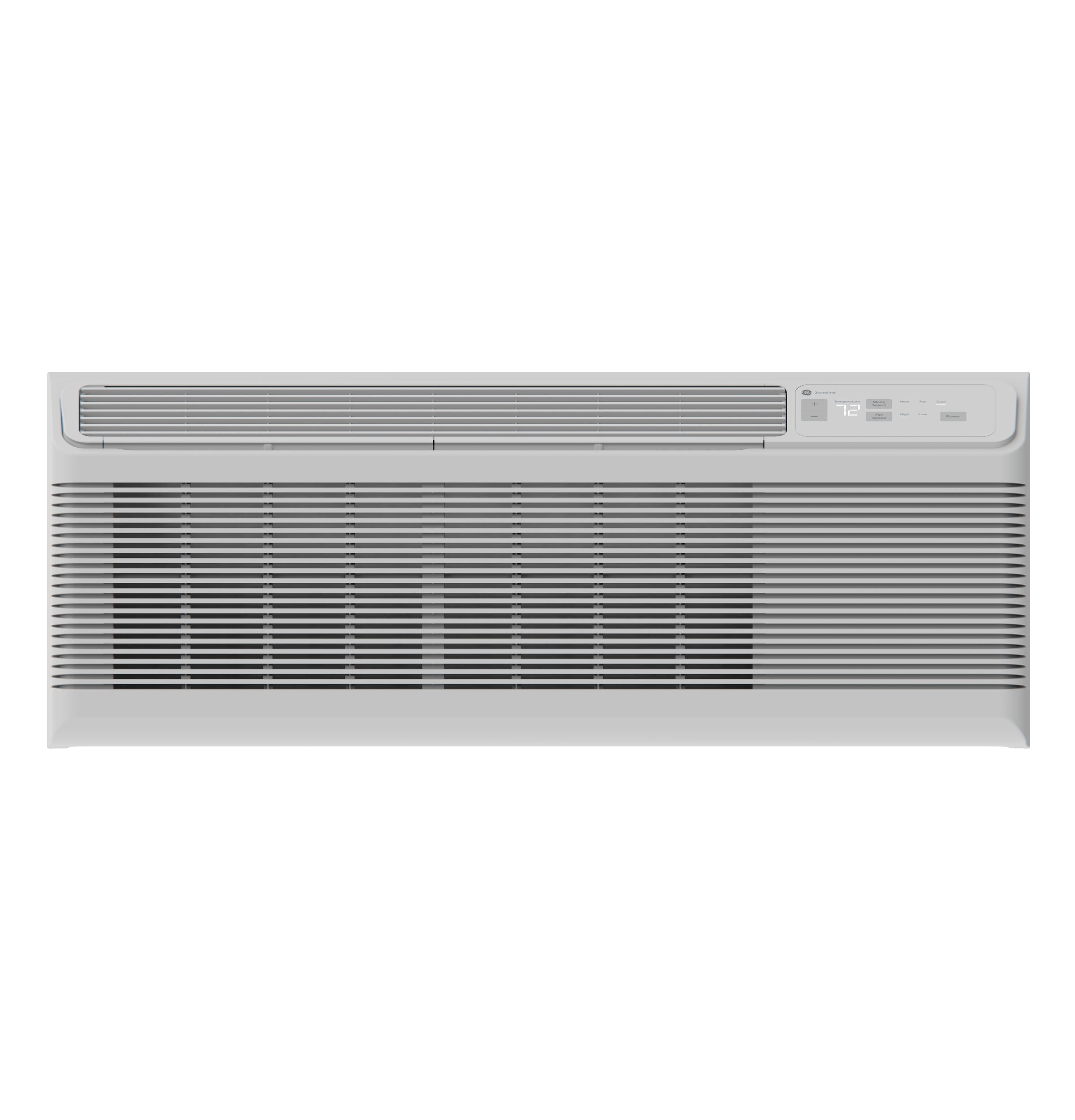

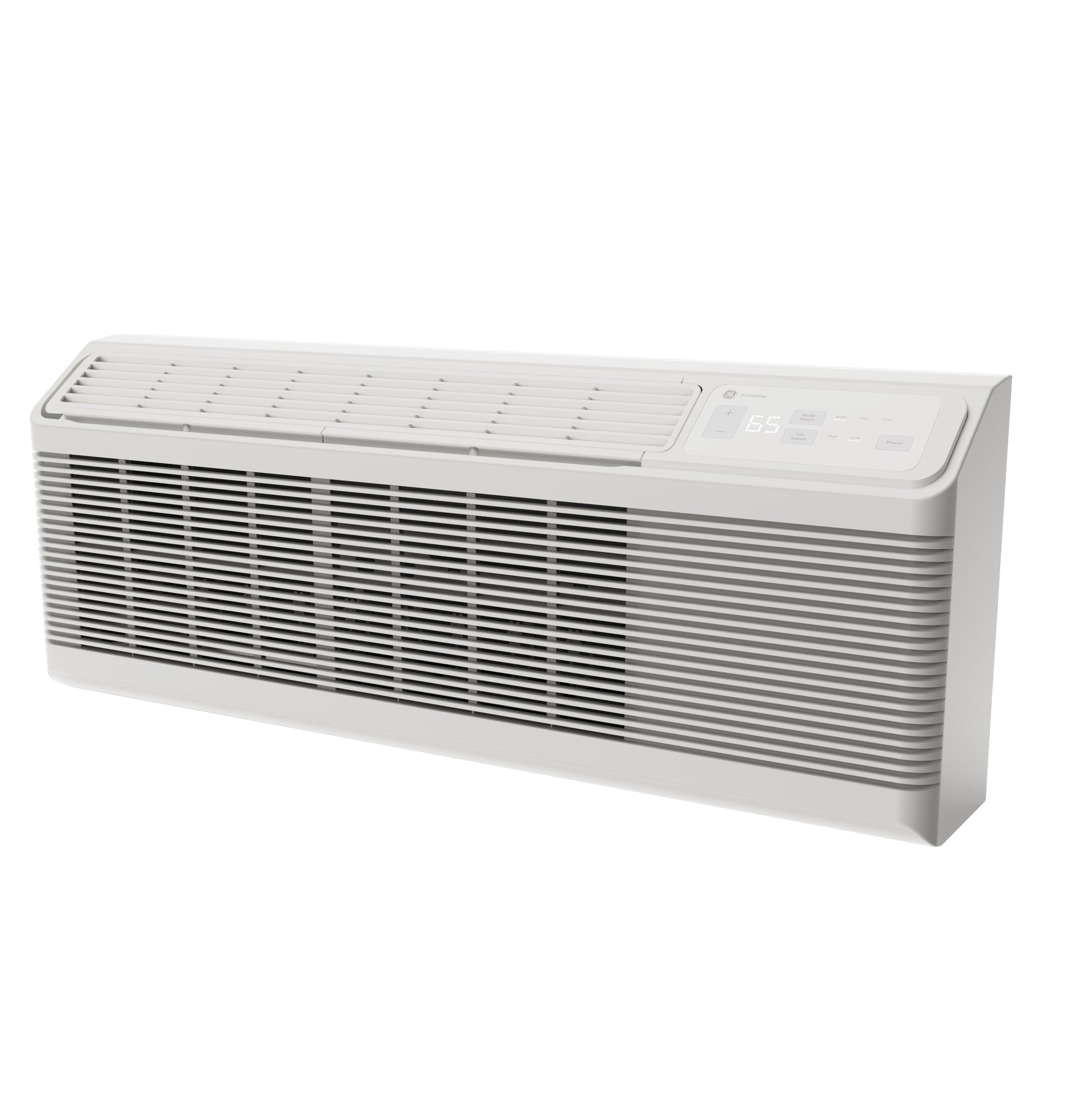

The GENERAL ELECTRIC AZHS12DCXXA Zoneline Heat Pump is a fixed-speed unit with corrosion protection, operating at 12,000 BTU and 230/208 Volt. Designed and assembled in America, it features R454B refrigerant and operates as a heat pump down to 25°F. The unit includes electronic touch controls with an LED display and a quiet operation due to its baked-on mastic sound barrier.
- Utilizes R454B, an environmentally friendly refrigerant.
- Features a corrosion protection package with an SMC basepan and bulkhead.

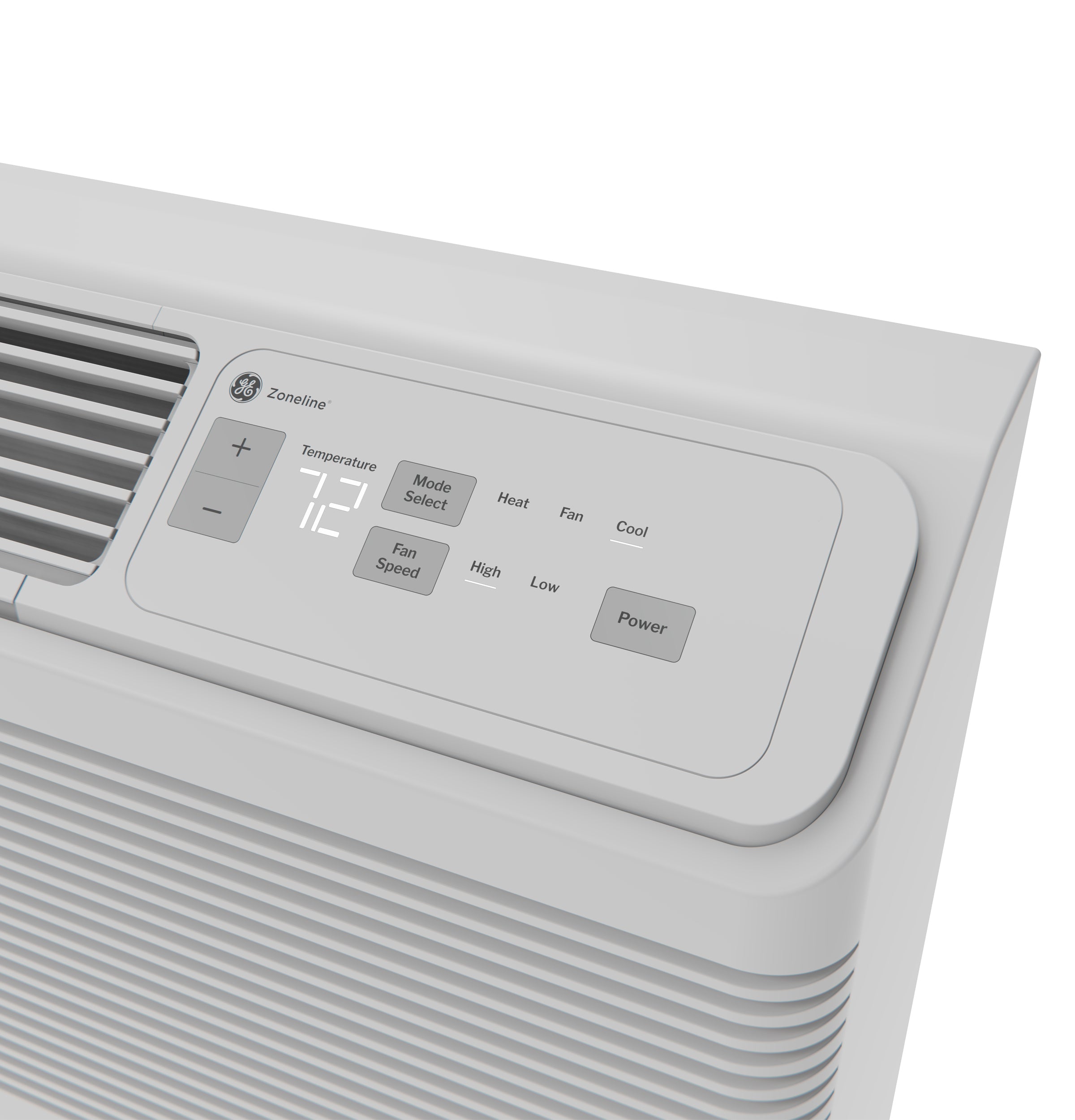

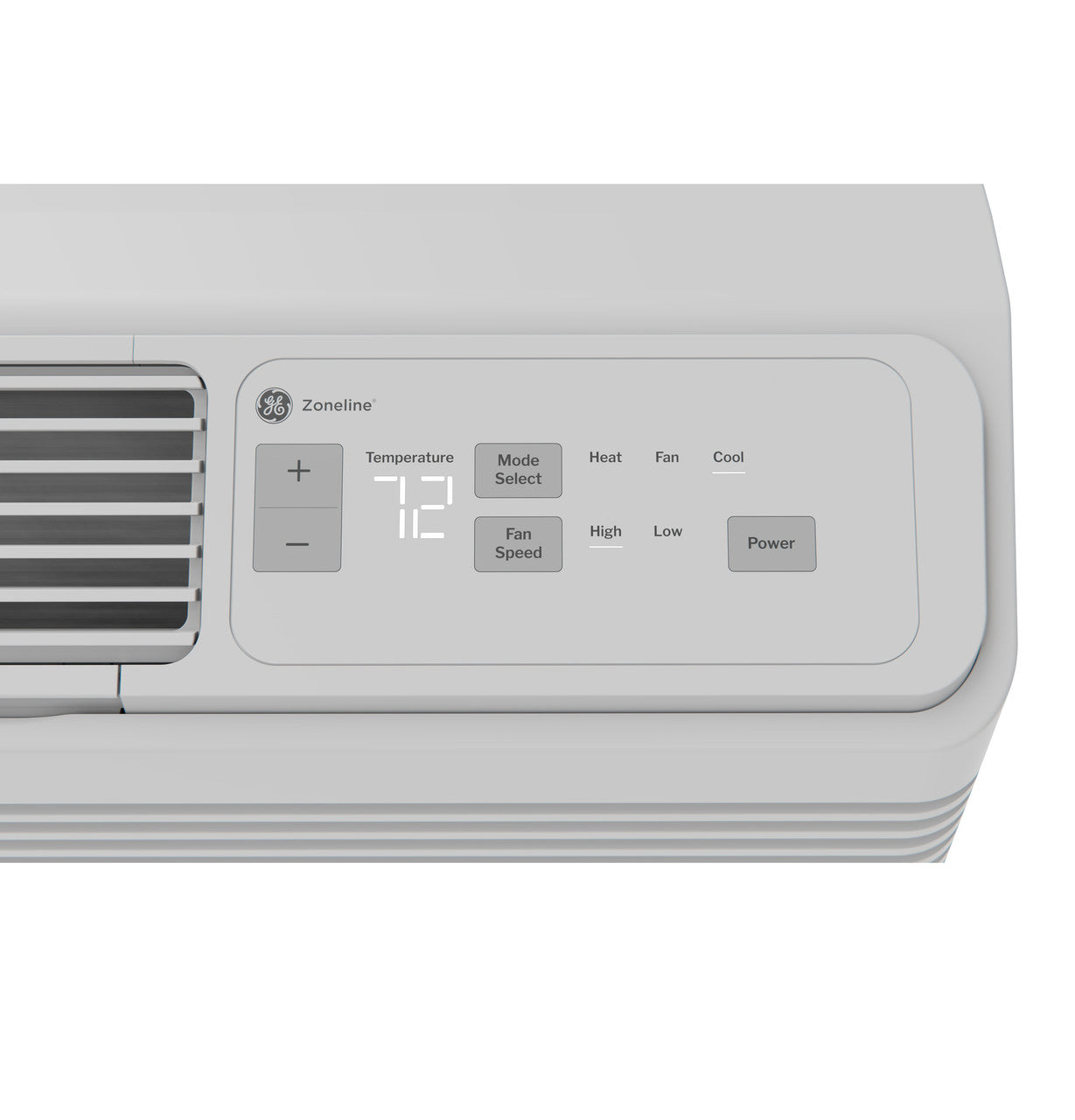

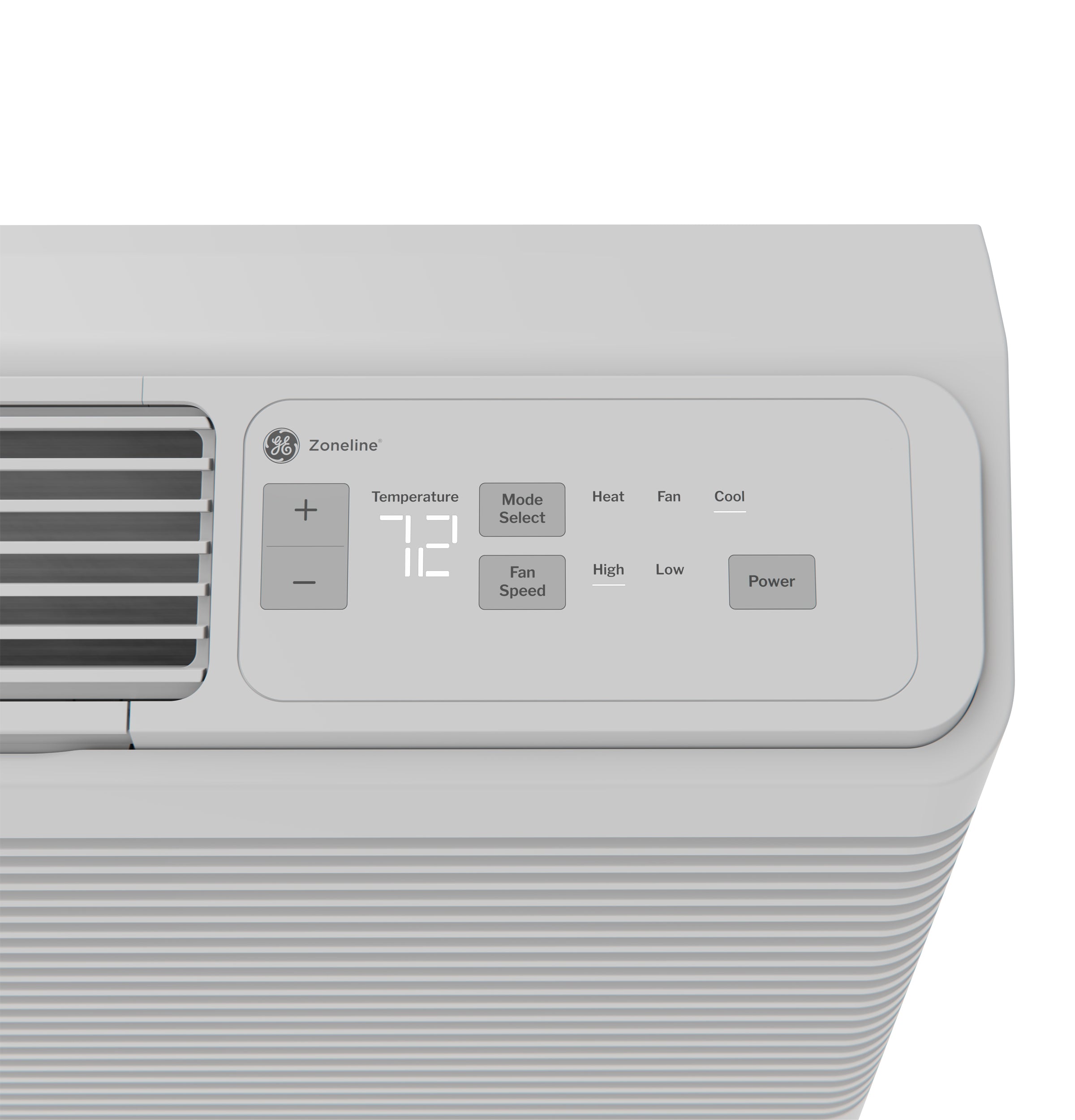

- Equipped with electronic touch controls, LED display, and electronic temperature limiting.
Product Highlights
This GE Zoneline heat pump offers efficient heating and cooling with advanced features like corrosion protection and quiet operation, making it suitable for various applications.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZHS12DCXXA
-
Country of Origin: USA
Technical Specifications
-
ACCESSORIES: Accessories Required for Installation RAB42 - Wall Case Outdoor Grille
-
Color Appearance: Grey White
-
CFM Indoor Fan High: 440
-
CFM Indoor Fan Low: 305
-
Cooling BTUH (MAX): 12100
-
Cooling BTUH (MIN): 11,900 Btu
-
Cooling EER (BTUH / Watt): 11.6/11.6
-
Dehumidification (pts./hr.): 3.1 (High Speed)
-
Vent CFM (high fan at zero ESP): 43.2
-
Central Desk Control Compatibility: Yes
-
Chassis Type: Slide-In
-
Control Type: Electronic Buttons
-
Tactile touch pad with LED Display: Yes
-
Corrosion Treated: Yes
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor: 2
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
-
Filter Type: Rigid Frame Slide-Out
-
Freeze Sentinel: Yes
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heat Sentinel: Yes
-
Heating - Reverse Cycle - COP: 3.6/3.7
-
Heating System: Heat Pump With Backup Resistance Heat
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 95
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Charge (oz.): 30.5
-
Refrigerant Type: R454B
-
Rotary Compressor: Yes
-
Sensible Heat Ratio: 0.75
-
Temperature Limiting: Electronic 24-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
-
Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
-
Cooling - Amperes: 4.7/5.1
-
Cooling - Amperes; F.L. - Cooling: 4.5/4.9
-
Cooling - Amperes; L.R.: 29.5
-
Cooling - Watts: 1035/1020
-
Heating BTUH: 10600 / 10600
-
Heating - Electric - Heater Amps: 3.7/3.5
-
Heating - Reverse Cycle - Watts: 835/815
-
Voltage (MAX): 230 V
-
Voltage (MIN): 208 V
-
Overall Depth: 20.8125 in
-
Overall Height: 16 in
-
Overall Width: 42 in
-
Air Conditioner Type: PTHP
-
Cooling BTU: 12,000 BTU
-
Machine Volts: 208/230
-
Machine Amps: Universal
-
Cord Included: No
-
Plug Type: Universal
-
Controls: Electronic
-
Heat: Heat Pump
-
Heater Size (KW): Universal
-
Fits Standard 42" x 16" Sleeve: Yes
-
Product Length: 42
-
Product Width: 20.5
-
Product Height: 16
-
Automatic Restart: Yes
-
Seacoast Protection: Yes
-
Freeze Protection: Yes
-
Number of Fan Motors: 2
-
Fan Speeds: 2
-
ADA Compliant: No
-
Energy Efficiency Rating (EER): 11.6
-
COP Rating: 3.6
-
Sleeve Included: No
-
Exterior Grille Included: No
-
Maximum Cooling Watts: 1015
-
Maximum Cooling Amps: 4.9
-
Actual Cooling BTUs @ 208V: 11900
-
Actual Cooling BTUs @ 230V: 12100
-
Actual Heating BTUs Heat Pump @ 208V: 10600
-
Actual Heating BTUs Heat Pump @ 230V: 1060
-
CFM (Cool/Wet Coil) - High: 440
-
CFM (Cool/Wet Coil) - Low: 305
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Dehumidification (pts/hr): 3.1 (H)
-
CFMs: 305 / 440 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@208V): 11900
-
EER (@208V): 11.6
-
Cooling Amps (@208V): 4.9
-
Cooling Watts (@208V): 1005
-
Electric Heat Strip Size (kW - @208V): 1.9 @15 amps / 2.8 @20 amps / 3.9 @30 amps
-
Electric Heating BTUs (@208V): 6600 / 9400 / 13400
-
Electric Heating Amps (@208V): 9.7 / 13.8 / 19.3
-
Electric Heating Watts (@208V): 1960 / 2780 / 3930
-
Heat Pump BTUs (@208V): 10600
-
Heat Pump Heating Amps (@208V): 4.0
-
Heat Pump Heating Watts (@208V): 815
-
Cooling BTUs (@230V): 12100
-
EER (@230V): 11.6
-
Cooling Amps (@230V): 4.5
-
Cooling Watts (@230V): 1015
-
Electric Heat Strip Size (kW - @230V): 2.4 @15 amps / 3.4 @20 amps / 4.8 @30 amps
-
Electric Heating BTUs (@230V): 8100 / 11600 / 16300
-
Electric Heating Amps (@230V): 10.6 / 15.1 / 21.2
-
Electric Heating Watts (@230V): 2400 / 3400 / 4800
-
Heat Pump BTUs (@230V): 10600
-
Heat Pump Heating Amps (@230V): 3.8
-
Heat Pump Heating Watts (@230V): 1015
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-15P / 6-20P / 6-30P
-
Circuit Breaker Size (Amps): 15 / 20 / 30
-
Cord Length: 5'
-
Wattage: 1035/1020
-
Amp: 4.7/5.1
-
Series: Zoneline®
-
Made In The USA: Yes
-
Made In Canada: No
-
Collection: Zoneline®
-
Smart Compatible: No
-
Maximum CFM: 440
-
BTU Cooling Rating: 12100
-
BTU Heat Rating: 10600
-
Air Conditioner Features: Commercial Use Approved, Dehumidifier
-
Air Filter Features: Removable
-
Heater Included: Yes
-
Amperage: 4.9 amp
-
Average Coverage Area: 400-550 sq. ft.
-
Circuit Ampacity: 15 amp, 20 amp, 30 amp
-
Commercial/Residential: Commercial/Residential
-
EER: 11.6
-
Heating Method: Heat Pump
-
NEMA Configuration: 6-15R, 6-20R, 6-30R
-
Package Quantity: 1
-
Smart Connectivity: True
-
Product Depth: 20.81 in.
-
Certifications & Standards: AbilityOne, ADA Compliant, AHRI Certified, California Prop 65, NRCAN, UL Listed
-
ENERGY STAR® Qualified: True
-
GSA Approved: True
-
TAA/BAA Compliant: True
-
UL Listed: True
-
HazMat: Hazardous
