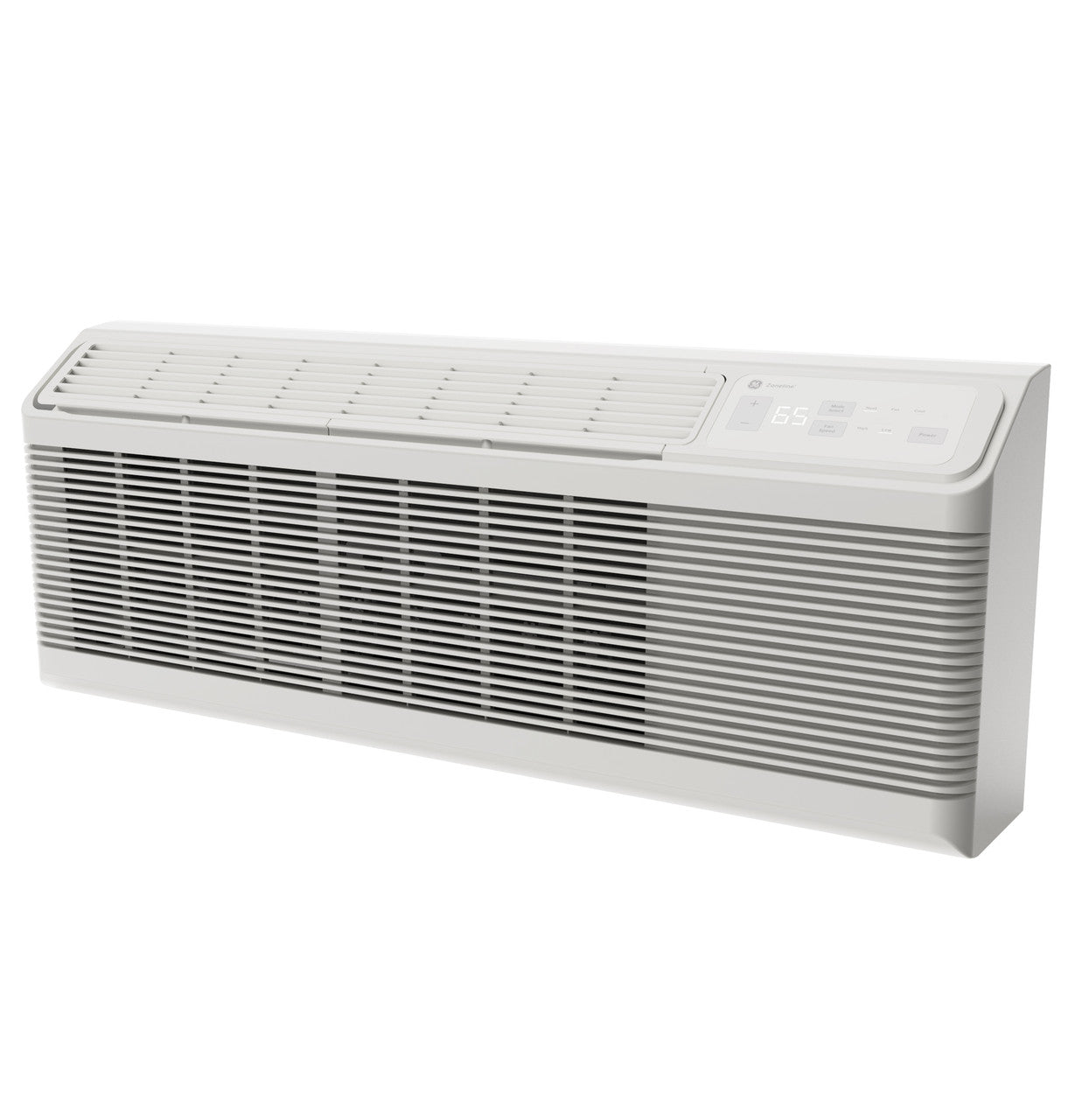

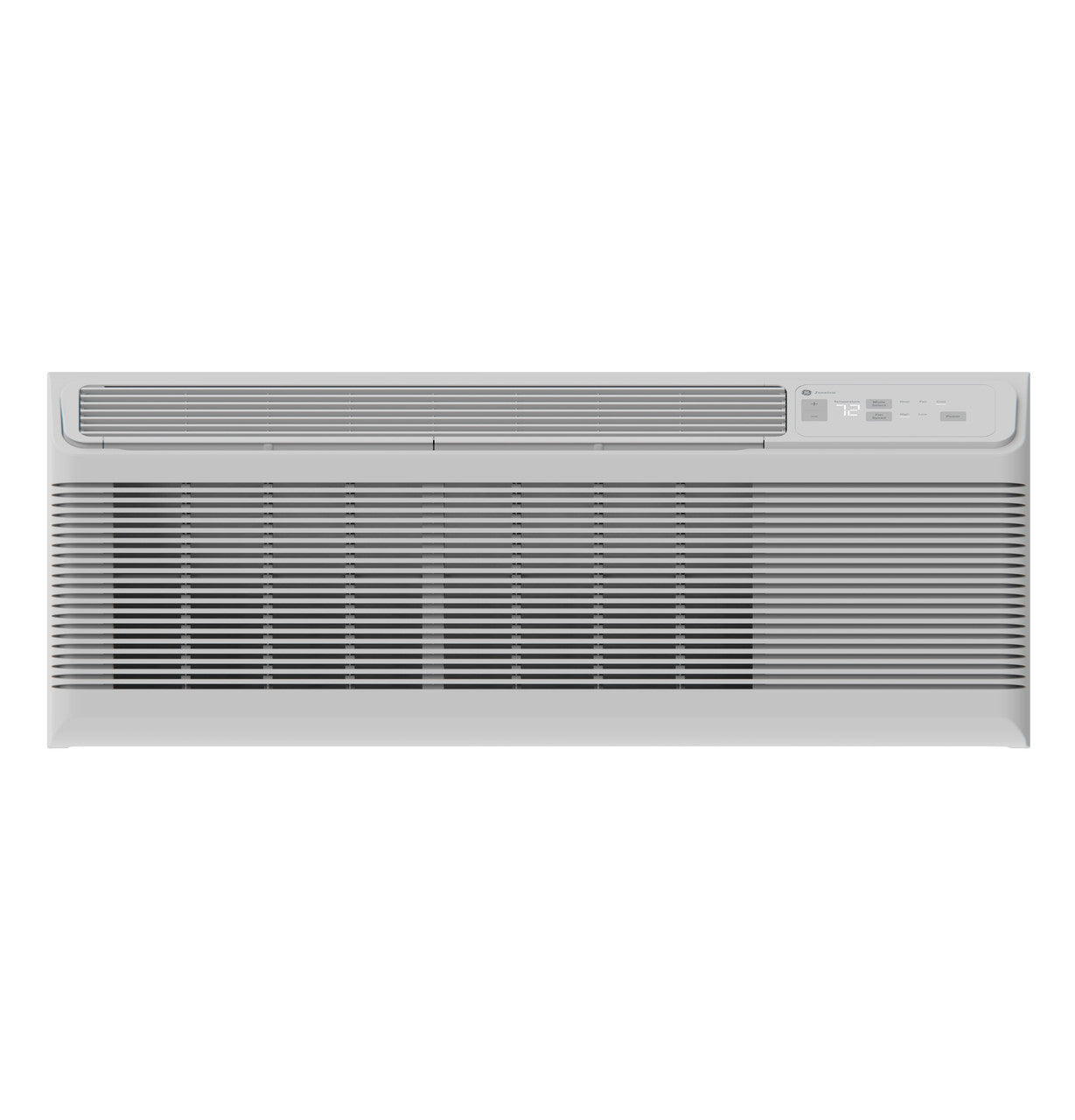

General Electric AZHS09DRXXA Zoneline Heat Pump Fixed Speed Unit 9,000 BTU

Product Description

The GENERAL ELECTRIC AZHS09DRXXA Zoneline Heat Pump Fixed Speed Unit with Corrosion Protection features R454B refrigerant. Designed for quiet operation with a baked-on mastic sound barrier, it includes electronic touch controls with LED display and a fresh air vent. The unit has electronic temperature limiting and a corrosion protection package with an SMC basepan and bulkhead.

• Heat pump operates down to 25°F
• Features a boost heat option

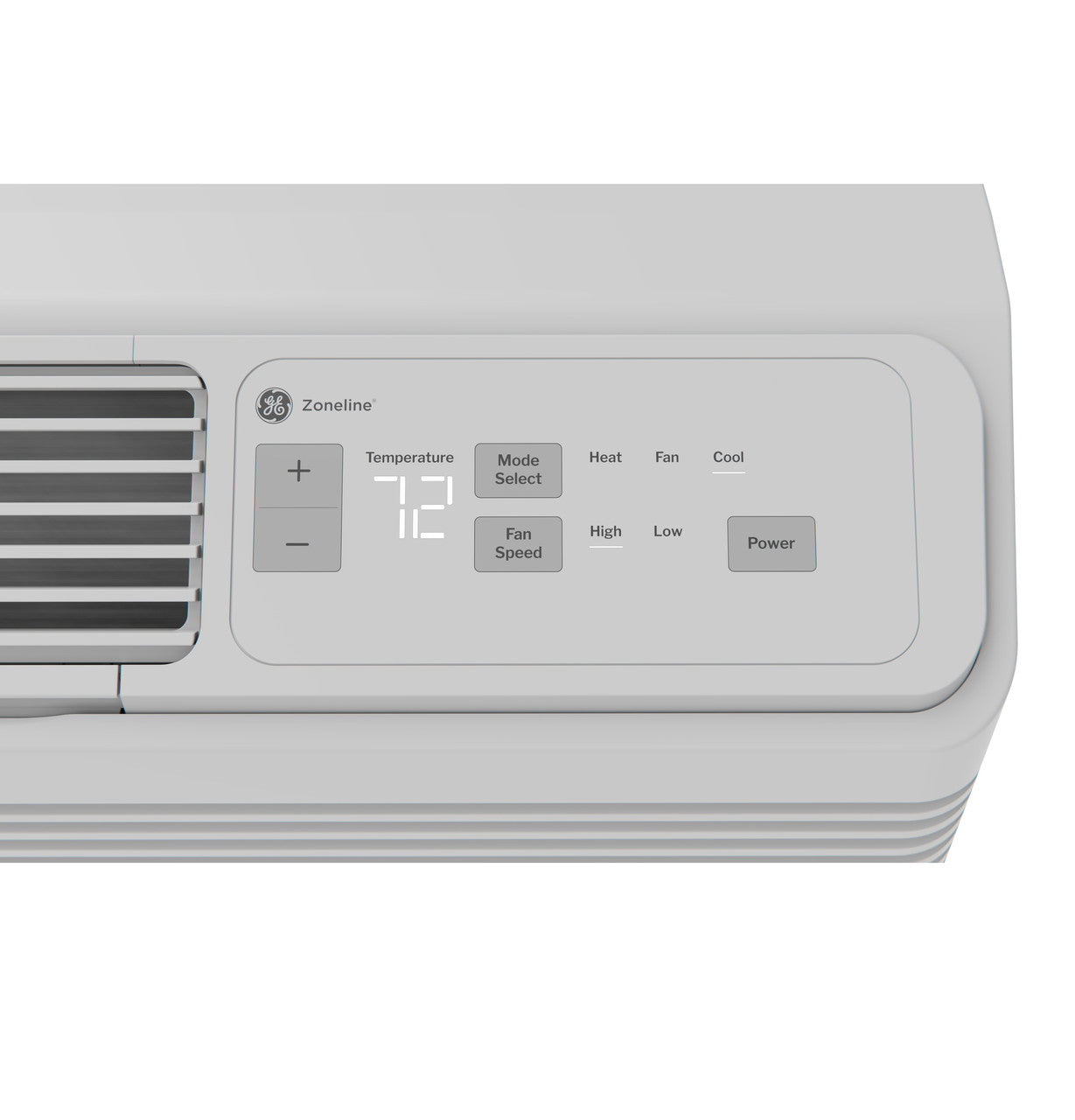

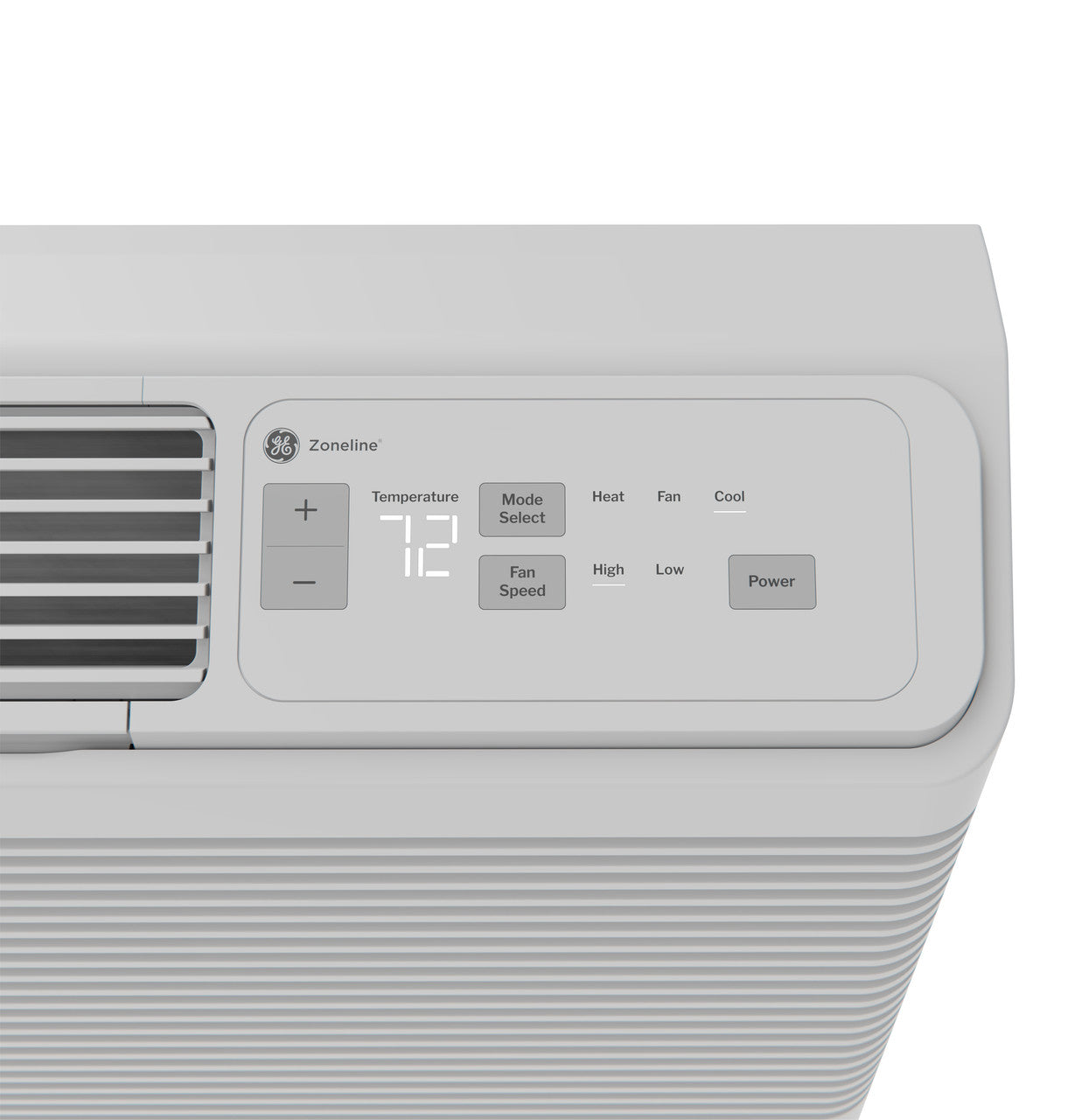

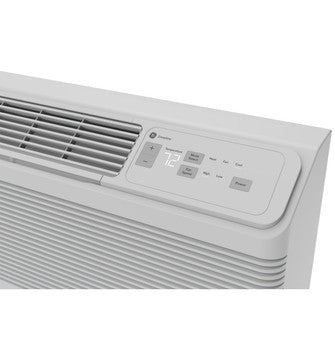

• Includes electronic touch controls with LED display

Product Highlights

This GE Zoneline unit offers efficient heating and cooling with advanced features and corrosion protection.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AZHS09DRXXA
• Country of Origin: US

Technical Specifications

• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Cooling BTUH (MAX): 9700
• Cooling BTUH (MIN): 9600 Btu
• Cooling EER (BTUH / Watt): 12.4 / 12.4
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Refrigerant Type: R454B
• Heating BTUH: 8000 / 7900
• Overall Width: 42 in
• Overall Height: 16 in
• Overall Depth: 20.8125 in
• Net Weight: 106 lb
• Color Appearance: Grey White
• Accessories: Accessories Required for Installation
• Wall Case: RAB42 - Wall Case
• Outdoor Grille: Outdoor Grille
• Dehumidification (pts./hr.): 2.0 (High Speed)
• Vent CFM (high fan at zero ESP): 41.3
• Central Desk Control Compatibility: Yes
• Chassis Type: Slide-In
• Control Type: Standard Microcomputer
• Tactile touch pad with LED Display: Yes
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
• Filter Type: Rigid Frame Slide-Out
• Freeze Sentinel: Yes
• Heat - Cool: Yes
• Heat Pump: Yes
• Heat Sentinel: Yes
• Heating - Reverse Cycle - COP: 3.7/3.8
• Heating System: Heat Pump With Backup Resistance Heat
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Power Factor: 95
• Refrigerant Charge (oz.): 28
• Rotary Compressor: Yes
• Sensible Heat Ratio: 0.75
• Temperature Limiting: Electronic 24-Step
• Temperature Range: 60 - 85 F
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
• Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
• Cooling - Amperes: 3.6/3.9
• Cooling - Amperes; F.L. - Cooling: 3.6/3.9
• Cooling - Amperes; L.R.: 21.0
• Cooling - Watts: 780/770
• Heating - Electric - Heater Amps: 3.0/3.2
• Heating - Reverse Cycle - Watts: 645/630
• CFM Indoor Fan High: 400
• CFM Indoor Fan Low: 290
