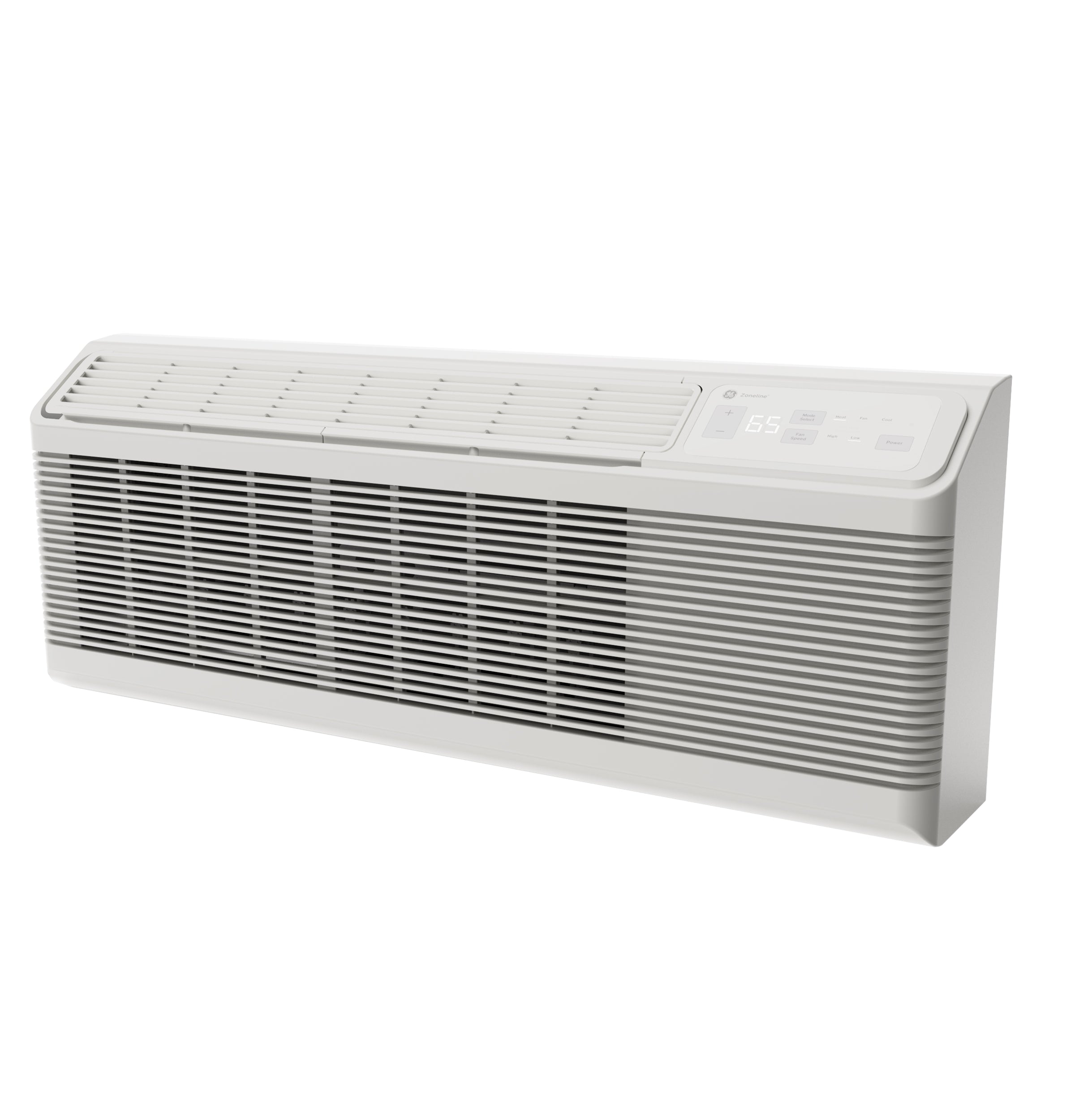

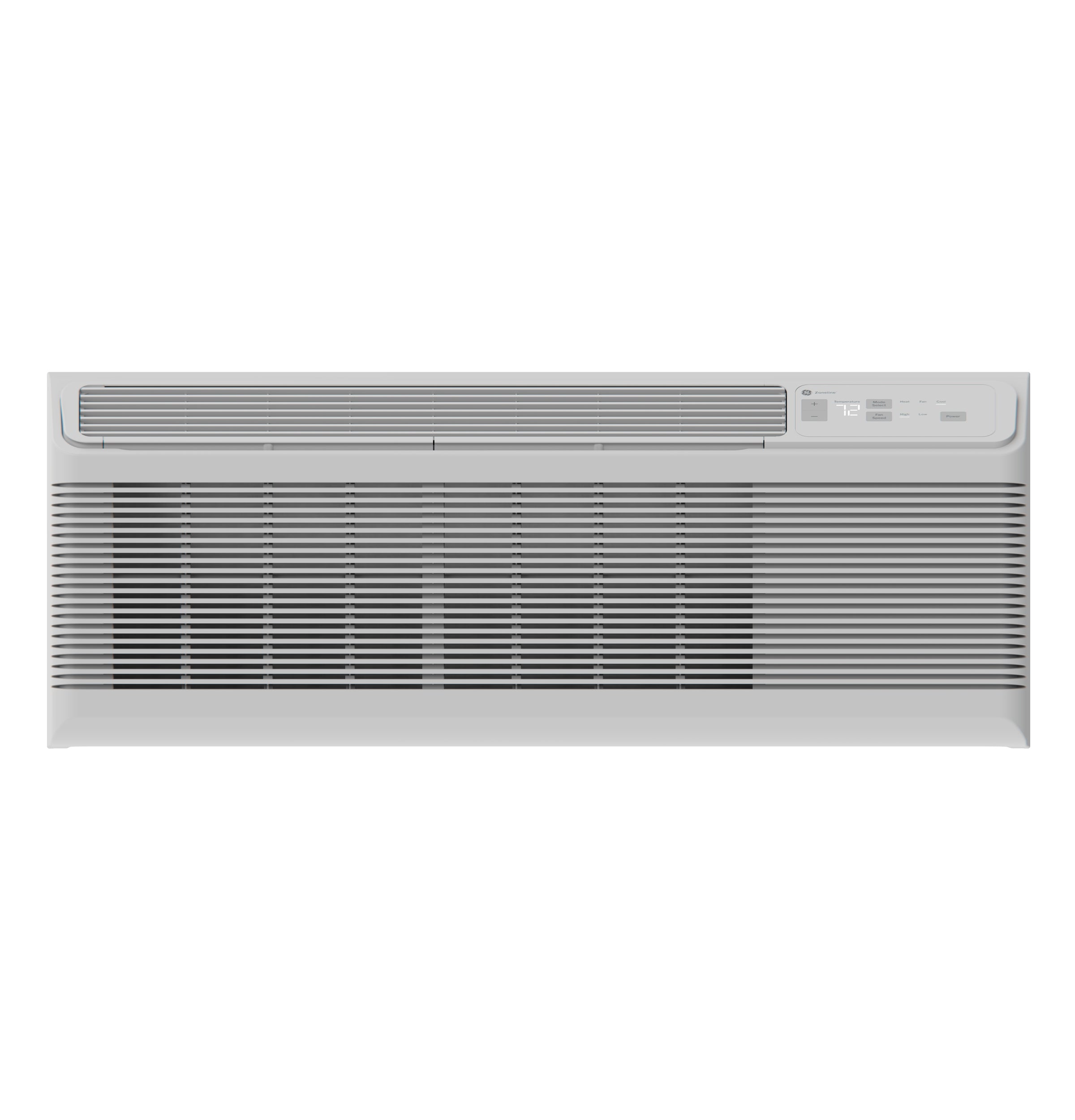

General Electric AZHS09DCXXA Zoneline Heat Pump Fixed Speed Unit with Corrosion Protection 9,000 BTU, 230/208 Volt

Product Description

The GENERAL ELECTRIC AZHS09DCXXA Zoneline Heat Pump Fixed Speed Unit with Corrosion Protection features R454B, the most environmentally friendly refrigerant. This unit has a heat pump that operates down to 25°F and includes a boost heat option. It also features electronic touch controls with LED display and quiet operation due to a baked-on mastic sound barrier.

• Environmentally friendly R454B refrigerant
• Heat pump operates down to 25°F

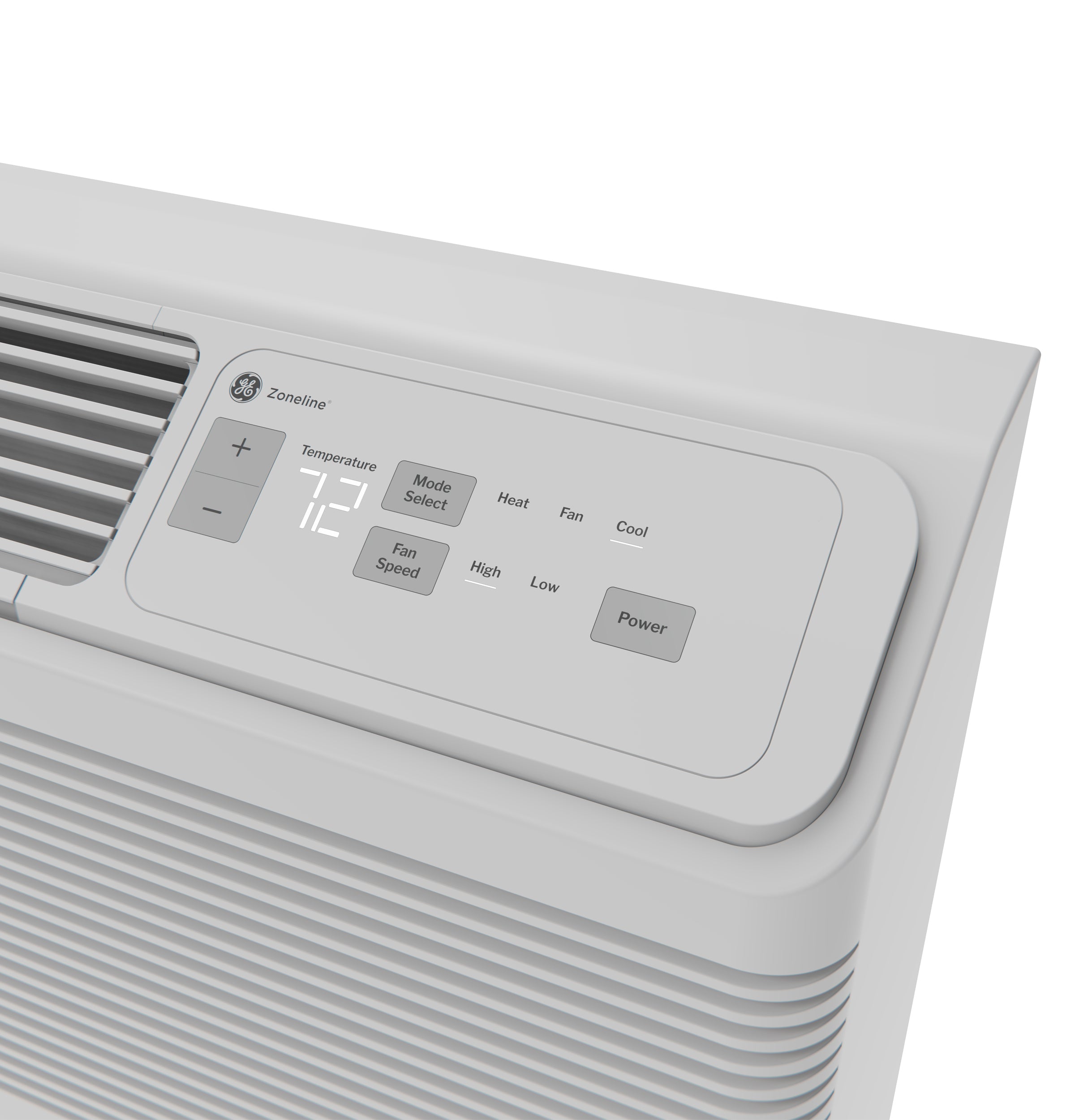

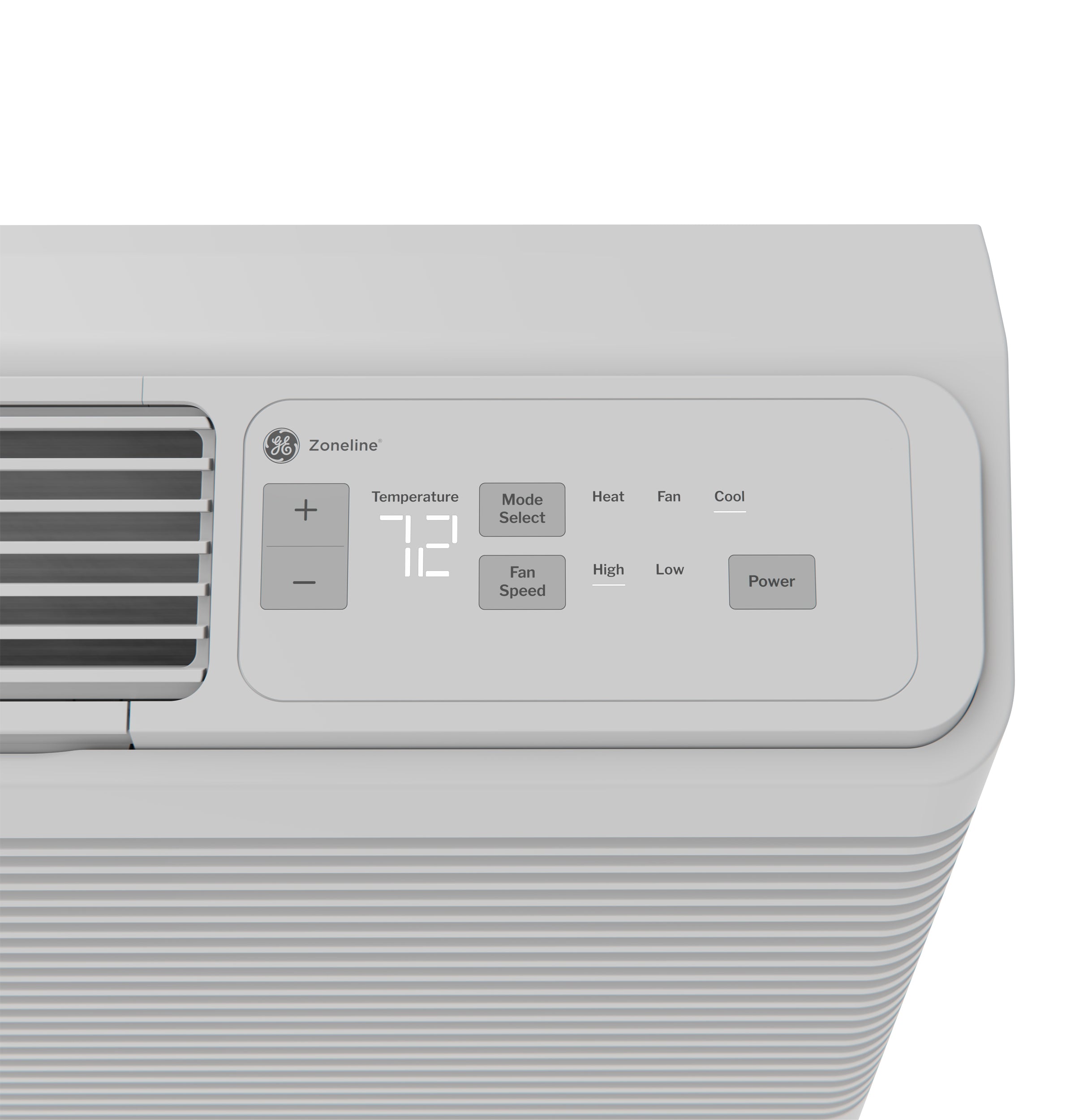

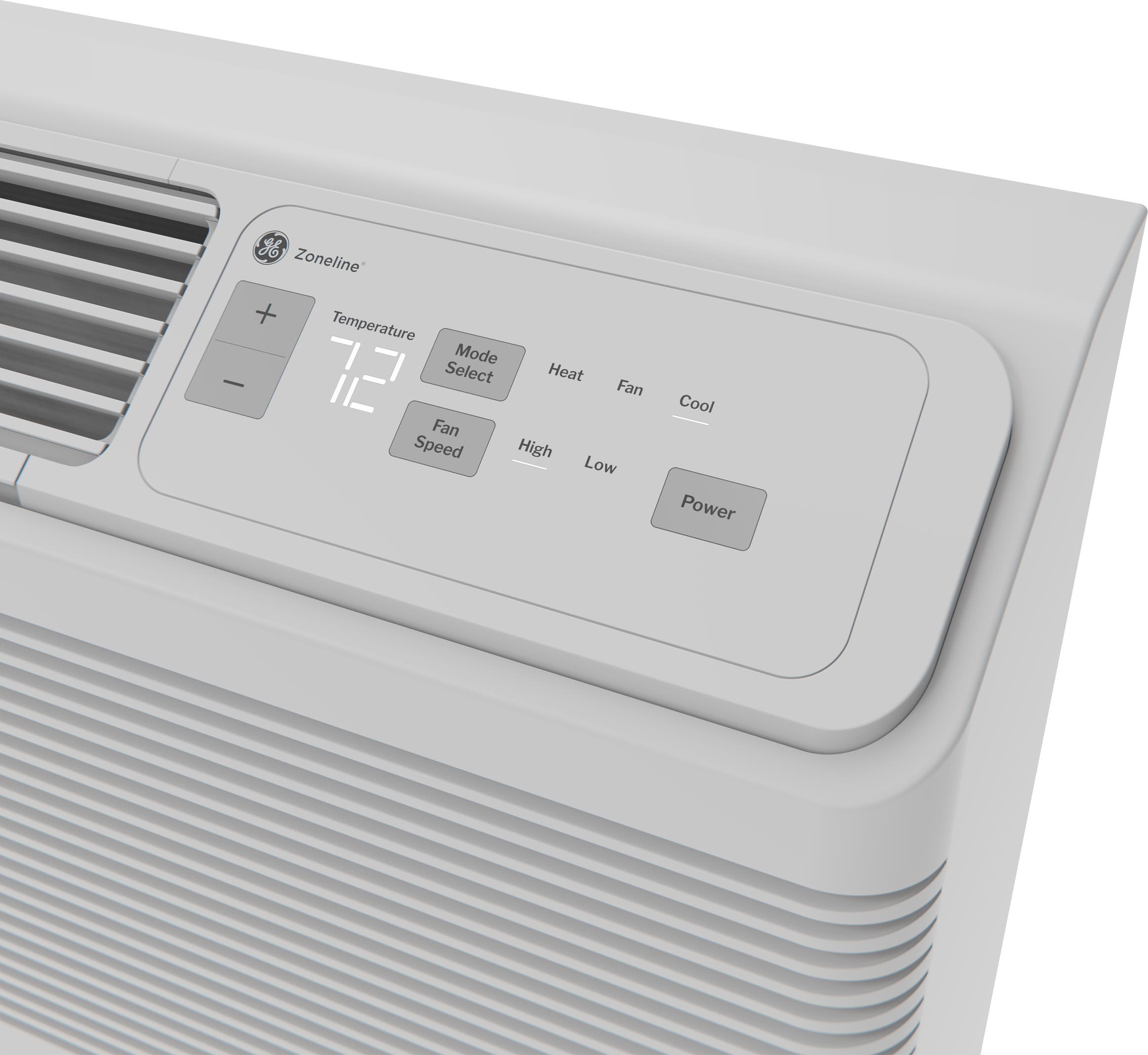

• Electronic touch controls with LED display

Product Highlights

This GE Zoneline PTAC unit provides efficient heating and cooling with user-friendly controls and a design focused on quiet operation and environmental responsibility.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AZHS09DCXXA
• Country of Origin: US

Technical Specifications

• Accessories Required for Installation: RAB42 - Wall Case Outdoor Grille
• Color Appearance: Grey White
• CFM Indoor Fan High: 400
• CFM Indoor Fan Low: 290
• Cooling BTUH (MAX): 9700
• Cooling BTUH (MIN): 9600 Btu
• Cooling EER (BTUH / Watt): 12.4 / 12.4
• Dehumidification (pts./hr.): 2.0 (High Speed)
• Vent CFM (high fan at zero ESP): 41.3
• Central Desk Control Compatibility: Yes
• Chassis Type: Slide-In
• Control Type: Standard Microcomputer
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
• Filter Type: Rigid Frame Slide-Out
• Freeze Sentinel: Yes
• Heat - Cool: Yes
• Heat Pump: Yes
• Heat Sentinel: Yes
• Heating - Reverse Cycle - COP: 3.7/3.8
• Heating System: Heat Pump With Backup Resistance Heat
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Power Factor: 95
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Charge (oz.): 28
• Refrigerant Type: R454B
• Rotary Compressor: Yes
• Sensible Heat Ratio: 0.75
• Temperature Limiting: Electronic 24-Step
• Temperature Range: 60 - 85 F
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
• Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
• Cooling - Amperes: 3.6/3.9
• Cooling - Amperes; F.L. - Cooling: 3.6/3.9
• Cooling - Amperes; L.R.: 21.0
• Cooling - Watts: 780/770
• Heating BTUH: 8000 / 7900
• Heating - Electric - Heater Amps: 3.0/3.2
• Heating - Reverse Cycle - Watts: 645/630
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Overall Depth: 20.8125 in
• Overall Height: 16 in
• Overall Width: 42 in
• Air Conditioner Type: PTHP
• Cooling BTU: 9,000 BTU
• Machine Volts: 208/230
• Machine Amps: Universal
• Cord Included: No
• Plug Type: Universal
• Controls: Electronic
• Heat: Heat Pump
• Heater Size (KW): Universal
• Fits Standard 42" x 16" Sleeve: Yes
• Product Length: 42
• Product Width: 42 in.
• Product Height: 16 in.
• Energy Star Certified: No
• Automatic Restart: Yes
• Seacoast Protection: Yes
• Freeze Protection: Yes
• Number of Fan Motors: 2
• Fan Speeds: 2
• ADA Compliant: No
• Energy Efficiency Rating (EER): 12.4
• COP Rating: 3.7
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 795
• Front Cover Included: Yes
• Maximum Cooling Amps: 3.9
• Actual Cooling BTUs @ 208V: 9600
• Actual Cooling BTUs @ 230V: 9700
• Actual Heating BTUs Heat Pump @ 208V: 7900
• Actual Heating BTUs Heat Pump @ 230V: 8000
• CFM (Cool/Wet Coil) - High: 400
• CFM (Cool/Wet Coil) - Low: 290
• PTAC: Yes
• Slide In: Yes
• Heating: Yes
• Fresh Air: Yes
• Trim Kit Included: No
• Cooling Capacity BTU (max): 9700
• Cooling Capacity BTU (min): 9600
• Power Cord Included: No
• UL Listed: Yes
• Amperage: 3.9 amp
• Average Coverage Area: 300-400 sq. ft.
• BTU Cooling Rating: 9700 BTU
• BTU Heat Rating: 8000 BTU
• Circuit Ampacity: 15 amp, 20 amp, 30 amp
• Commercial/Residential: Commercial/Residential
• EER: 12.4
• Heating Method: Heat Pump
• NEMA Configuration: 6-15R, 6-20R, 6-30R
• Package Quantity: 1
• Power Source: Plug-In
• Smart Connectivity: Voltage
• Product Depth: 20.81 in.
• Certifications & Standards: AHRI Certified, California Prop 65, NRCAN, UL Listed
• ENERGY STAR® Qualified: GSA Approved
• Made in the USA: TAA/BAA Compliant
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Compressor: Standard
• Dehumidification (pts/hr): 2.0 (H)
• CFMs: 290 / 400 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Cooling Amps (@208V): 3.9
• Cooling Watts (@208V): 785
• Electric Heat Strip Size (kW - @208V): 1.9 @15 amps / 2.8 @20 amps / 3.9 @30 amps
• Electric Heating BTUs (@208V): 6600 / 9400 / 13400
• Electric Heating Amps (@208V): 9.6 / 13.6 / 19.2
• Electric Heating Watts (@208V): 1960 / 2780 / 3930
• Heat Pump BTUs (@208V): 7900
• Heat Pump Heating Amps (@208V): 3.1
• Heat Pump Heating Watts (@208V): 630
• Electric Heat Strip Size (kW - @230V): 2.4 @15 amps / 3.4 @20 amps / 4.8 @30 amps
• Electric Heating BTUs (@230V): 8100 / 11600 / 16300
• Electric Heating Amps (@230V): 10.5 / 14.9 / 21.0
• Electric Heating Watts (@230V): 2400 / 3400 / 4800
• Heat Pump BTUs (@230V): 8000
• Heat Pump Heating Amps (@230V): 2.9
• Heat Pump Heating Watts (@230V): 645
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: Yes
• Voltage: 208-230V
• Plug Face (NEMA): 6-15P / 6-20P / 6-30P
• Circuit Breaker Size (Amps): 15 / 20 / 30
• Cord Length: 5'
• Cooling Watts (@230V): 795
• Filter Access: Rigid Frame; Slide-Out
