Product Description

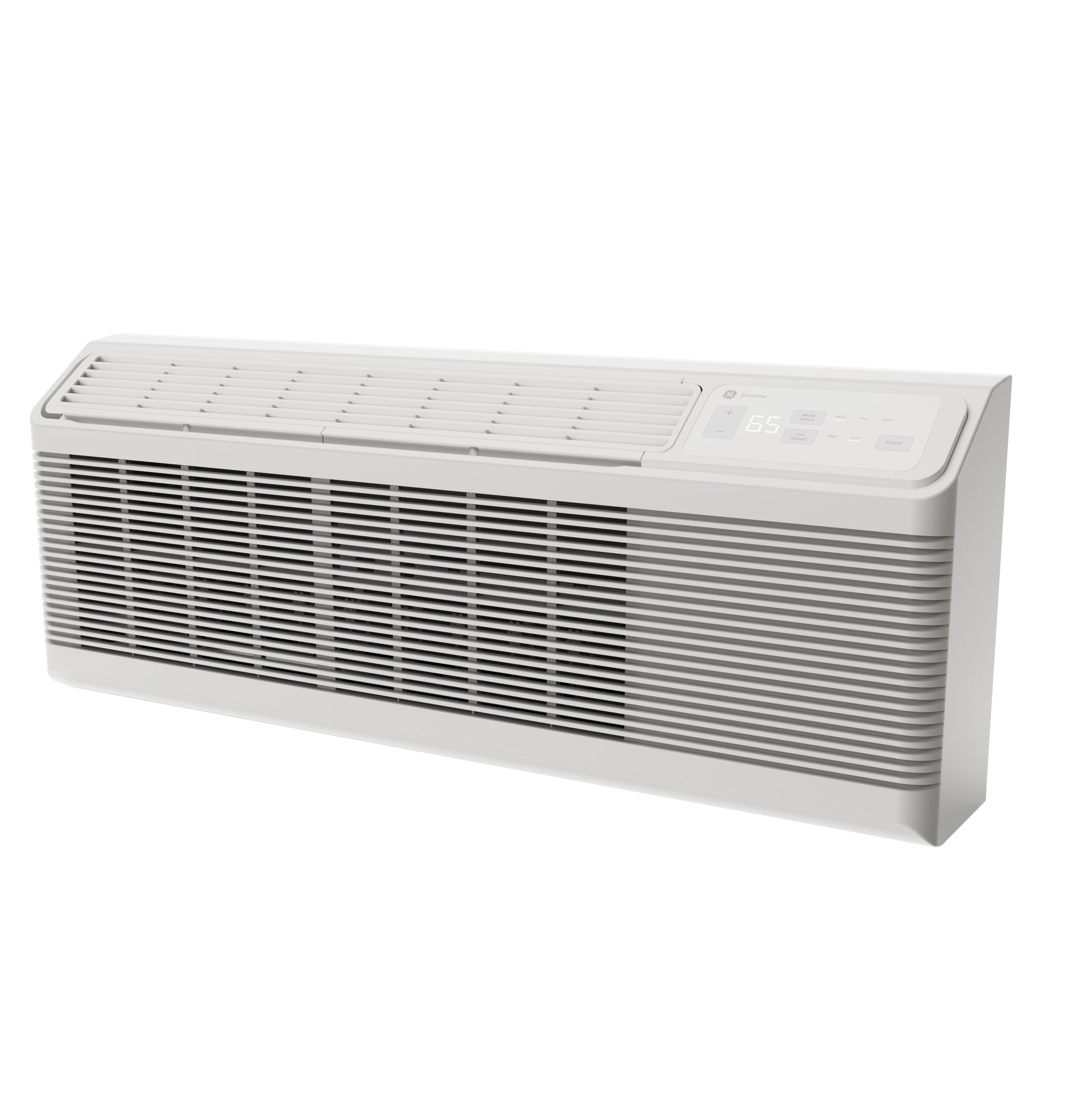

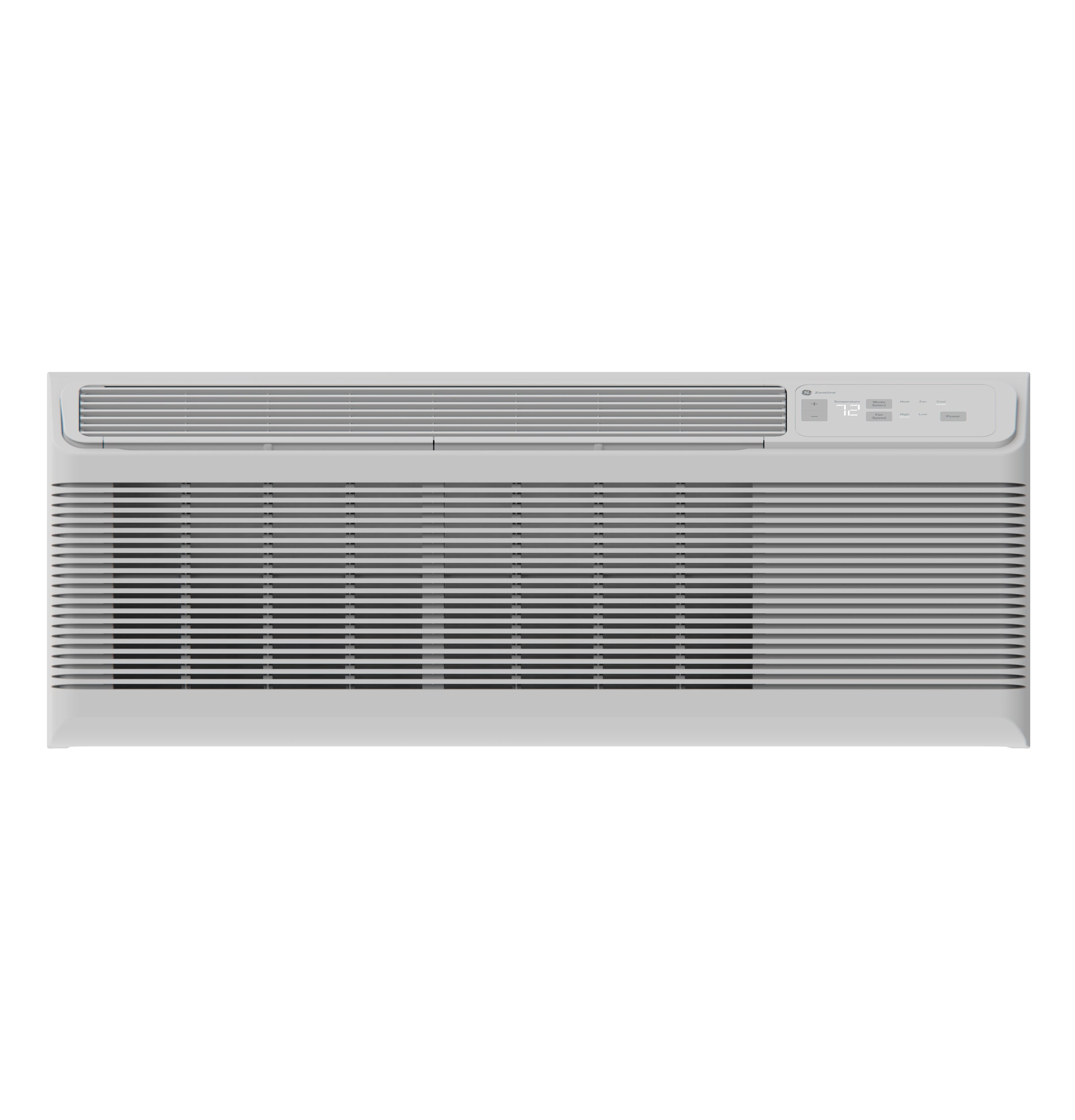

The GENERAL ELECTRIC AZHS07DCXXA Zoneline Heat Pump Fixed Speed Unit with Corrosion Protection features R454B refrigerant. This unit has a heat pump that operates down to 25°F and includes a boost heat option. It also features electronic touch controls with LED display and quiet operation due to a baked-on mastic sound barrier.
- Environmentally friendly R454B refrigerant
- Operates as a heat pump down to 25°F
- Features electronic touch controls with LED display
Product Highlights
This Zoneline heat pump offers efficient heating and cooling with user-friendly controls and quiet operation. Designed with corrosion protection for durability.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZHS07DCXXA
-
Country of Origin: USA
Technical Specifications
-
Accessories: Accessories Required for Installation
RAB42 - Wall Case
Outdoor Grille
-
CFM Indoor Fan High: 335
-
CFM Indoor Fan Low: 240
-
Cooling BTUH (MAX): 7200 Btu
-
Cooling BTUH (MIN): 7,100 Btu
-
Cooling EER (BTUH / Watt): 13.0 / 13.2
-
Dehumidification (pts./hr.): 0.9 (High Speed)
-
Vent CFM (high fan at zero ESP): 36.8
-
Central Desk Control Compatibility: Yes
-
Chassis Type: Slide-In
-
Control Type: Standard Microcomputer
-

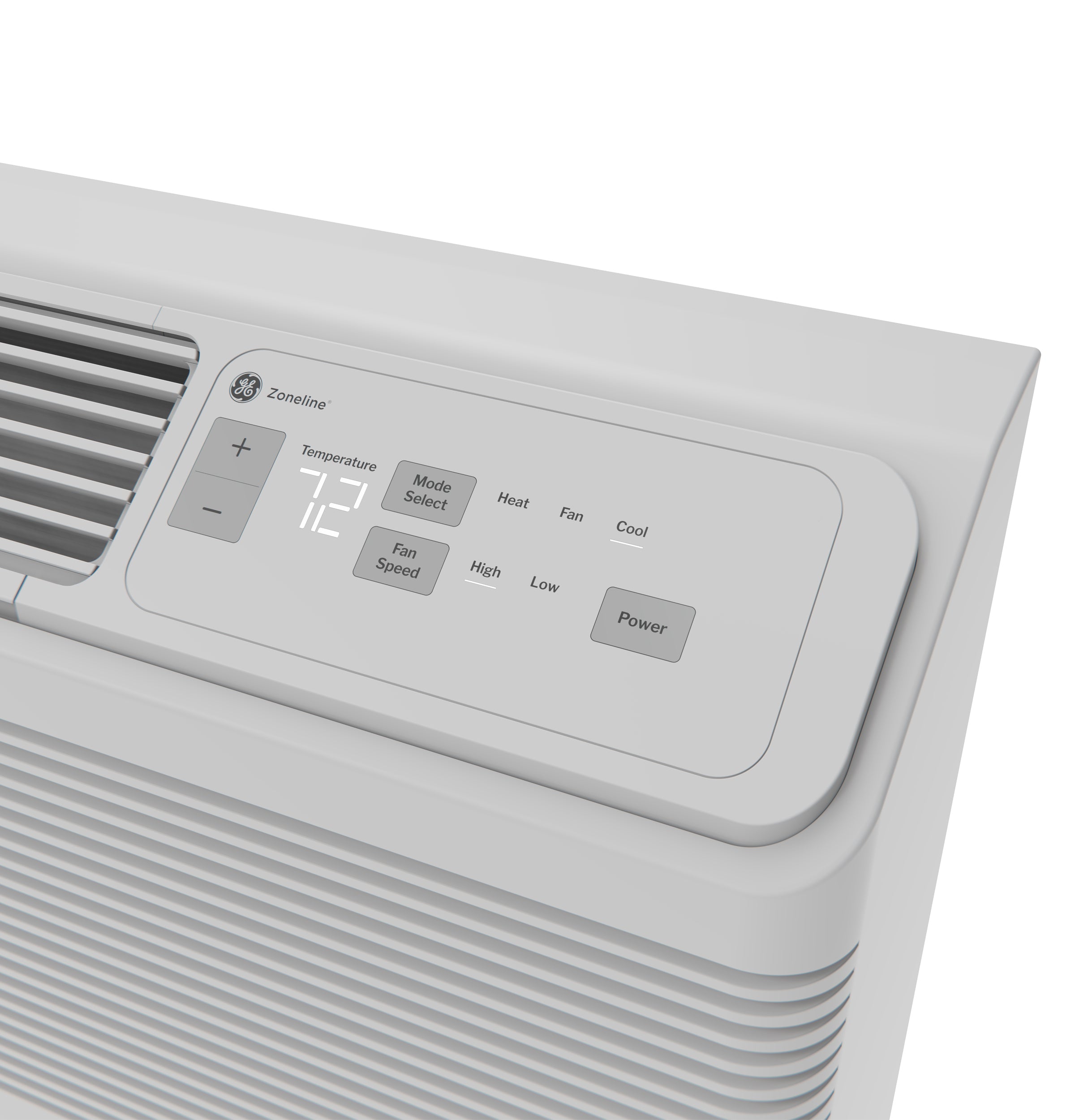

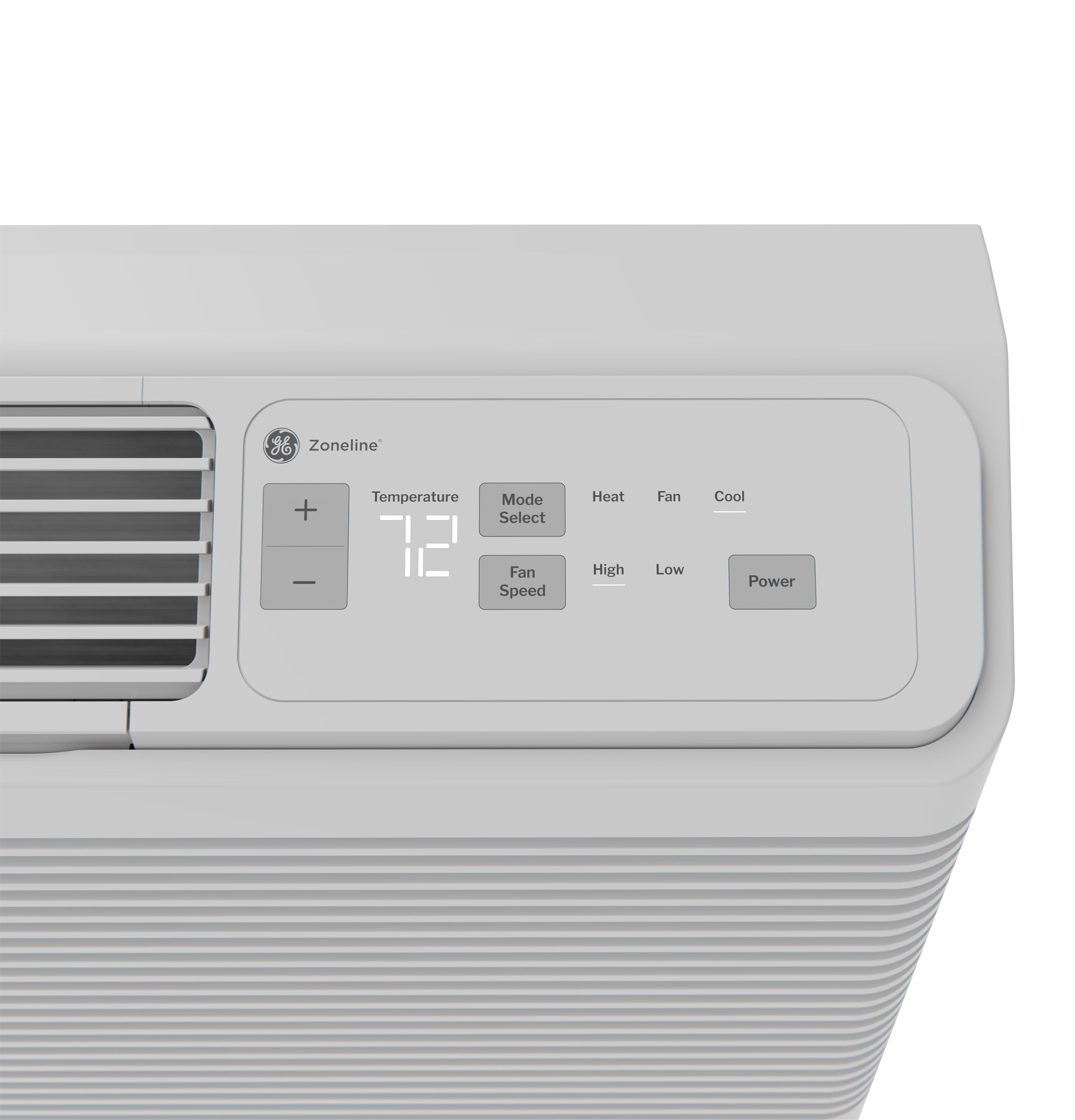

Tactile touch pad with LED Display: Yes
-
Corrosion Treated: Yes
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor: 2
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
-
Filter Type: Rigid Frame
Slide-Out
-
Freeze Sentinel: Yes
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heat Sentinel: Yes
-
Heating - Reverse Cycle - COP: 3.9/4.1
-
Heating System: Heat Pump With Backup Resistance Heat
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 95
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Charge (oz.): 26.8
-
Refrigerant Type: R454B
-
Rotary Compressor: Yes
-
Sensible Heat Ratio: 0.75
-
Temperature Limiting: Electronic 24-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control
Vent Air Filter
Outdoor Vent Control - 3 Positions
-
Cooling - Amperes: 2.6/2.8
-
Cooling - Amperes; F.L. - Cooling: 2.5/2.7
-
Cooling - Amperes; L.R.: 13.5
-
Cooling - Watts: 550/535
-
Heating BTUH: 6200 / 6200
-
Heating - Electric - Heater Amps: 2.3/2.5
-
Heating - Reverse Cycle - Watts: 450/445
-
Voltage (MAX): 230 V
-
Voltage (MIN): 208 V
-
Overall Depth: 20.8125 in
-
Overall Height: 16 in
-
Overall Width: 42 in
-
Electric Heater Capacity (BTUs): 11500 / 9400 BTU
-
Voltage: 208 - 230 Volts
-
Frequency: 60 Hz
-
Voltage Phase: 1
-
Maximum Fuse/Breaker: 20 Amps
-
Cut-Out Dimensions, W x H: 42 x 16 inches
-
AHRI#: 215406387
-
California Approved PTAC: Yes
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Electric Heat Strip Size (kW - @208V): 1.9 @15 amps / 2.8 @20 amps / 3.9 @30 amps
-
Electric Heating BTUs (@208V): 6600 / 9400 / 13400
-
Electric Heating Amps (@208V): 9.6 / 13.6 / 19.2
-
Electric Heating Watts (@208V): 1960 / 2780 / 3930
-
Heat Pump BTUs (@208V): 6200
-
COP (@208V): 4.0
-
Heat Pump Heating Amps (@208V): 2.2
-
Heat Pump Heating Watts (@208V): 445
-
Electric Heat Strip Size (kW - @230V): 2.4 @15 amps / 3.4 @20 amps / 4.8 @30 amps
-
Electric Heating BTUs (@230V): 8100 / 11600 / 16300
-
Electric Heating Amps (@230V): 10.5 / 14.9 / 21.0
-
Electric Heating Watts (@230V): 2400 / 3400 / 4800
-
Heat Pump BTUs (@230V): 6200
-
COP (@230V): 4.0
-
Heat Pump Heating Amps (@230V): 2.1
-
Heat Pump Heating Watts (@230V): 450
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Plug Face (NEMA): 6-15P / 6-20P / 6-30P
-
Circuit Breaker Size (Amps): 15 / 20 / 30
-
Cord Length: 5'
