Product Description

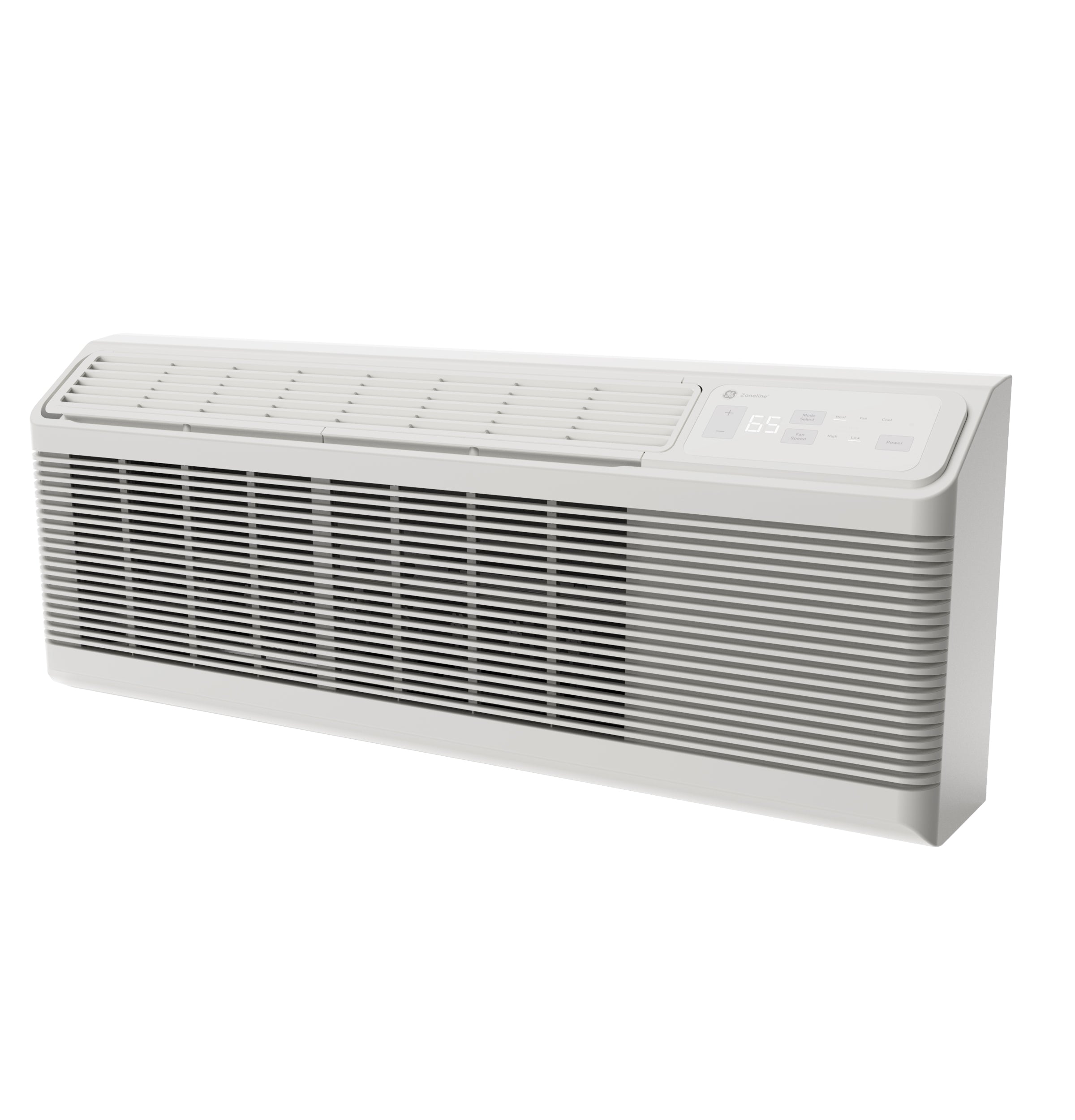

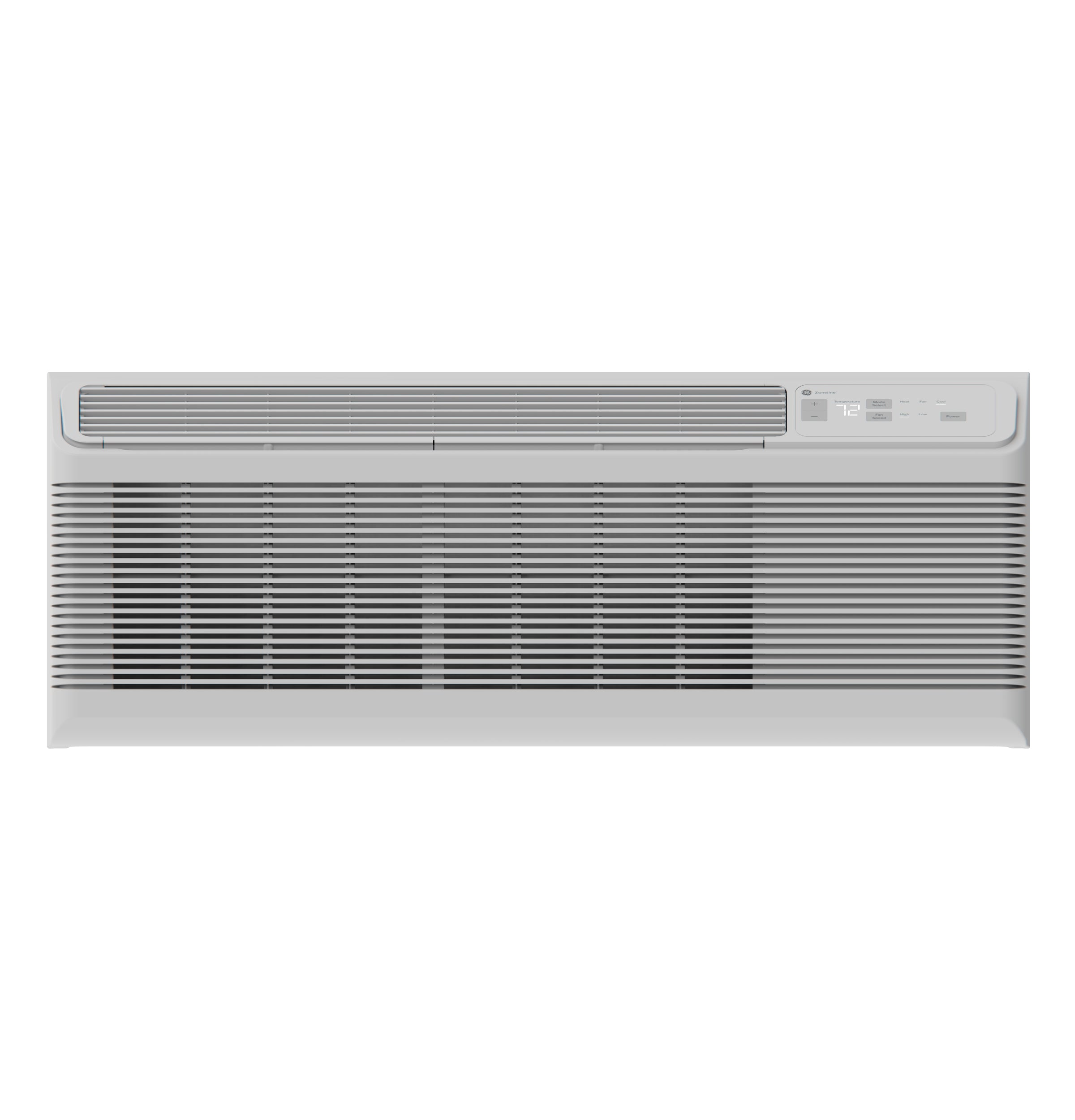

The GENERAL ELECTRIC AZES15DCXXA Zoneline cooling and fixed speed unit features corrosion protection and operates at 230/208 Volt with 15,000 BTU. It uses R454B refrigerant and has electronic touch controls with an LED display. The unit includes a quiet operation with a baked-on mastic sound barrier and an SMC basepan and bulkhead.
- Utilizes R454B refrigerant, which is environmentally friendly.

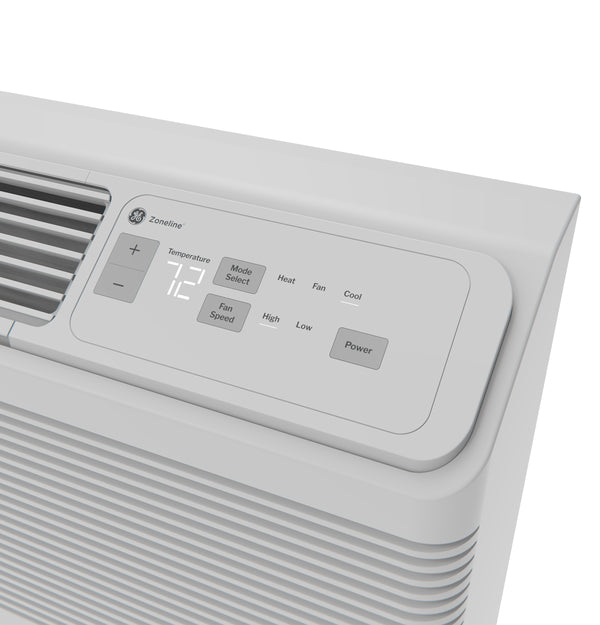

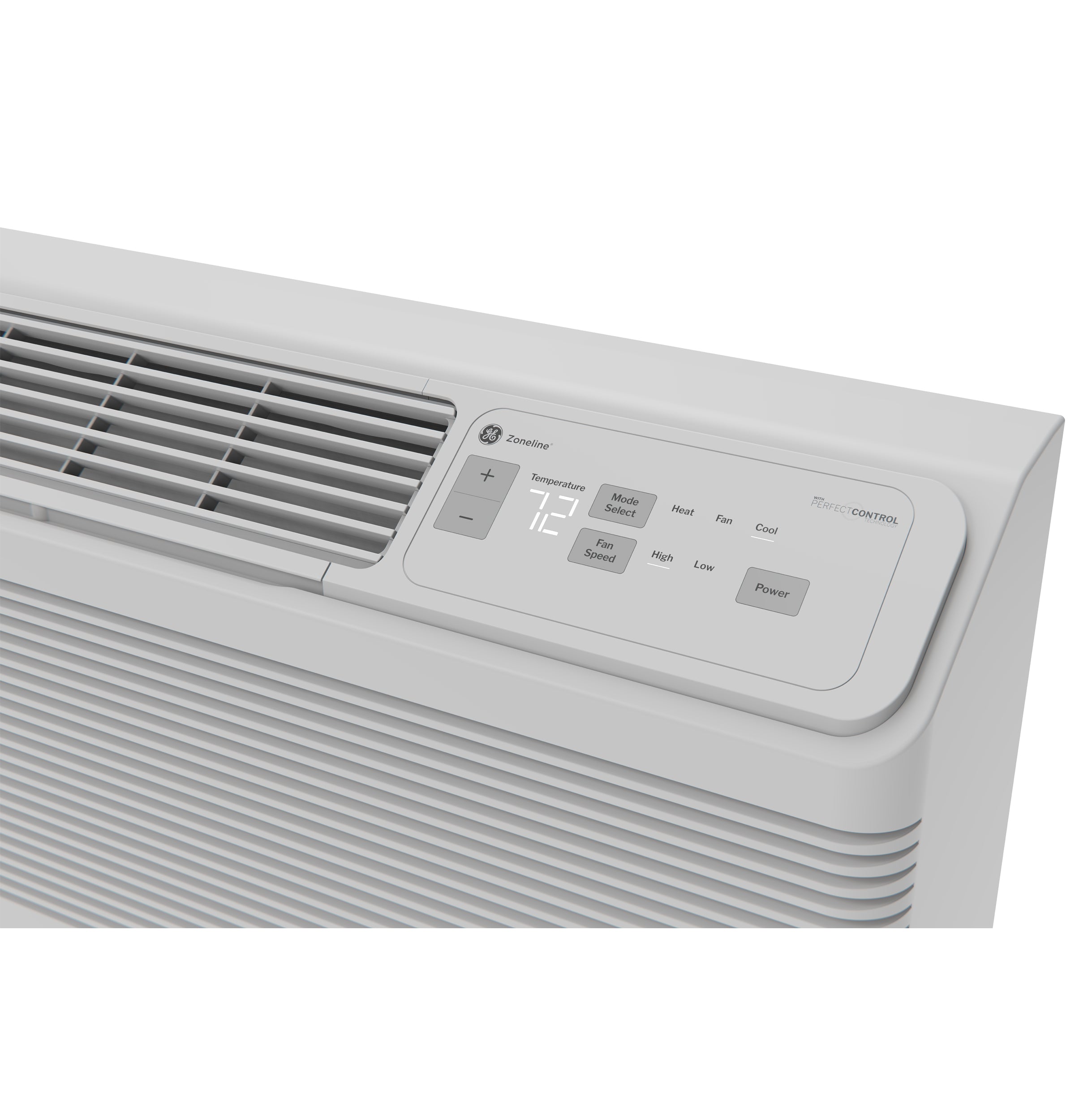

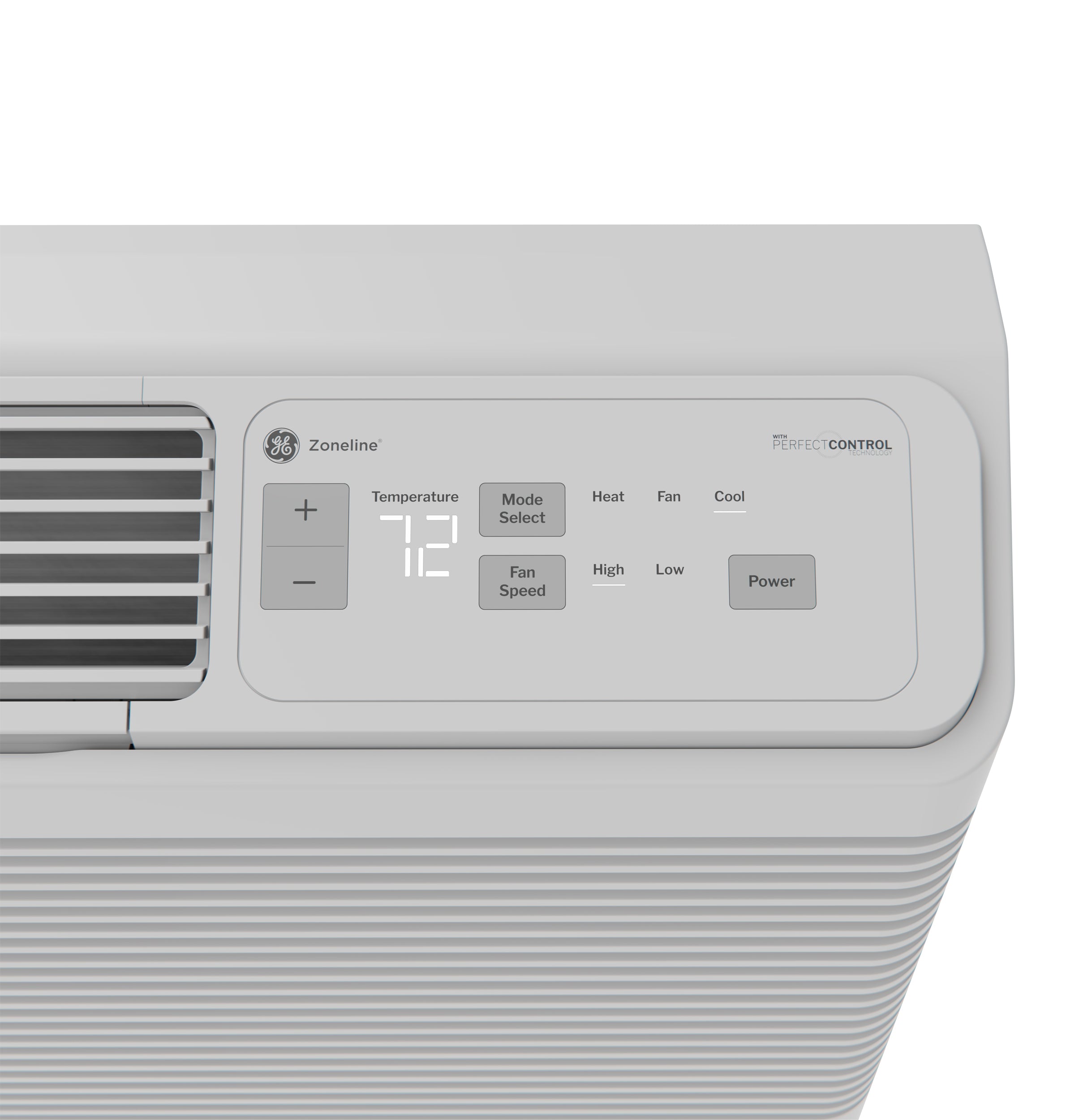

- Features electronic touch controls with LED display.
- Offers quiet operation due to the baked-on mastic sound barrier.
Product Highlights
This Zoneline unit provides efficient cooling with user-friendly controls and enhanced corrosion protection.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZES15DCXXA
Technical Specifications
-
Accessories Required for Installation: RAB42 - Wall Case Outdoor Grille
-
Color Appearance: Grey White
-
CFM Indoor Fan High: 440
-
CFM Indoor Fan Low: 330
-
Cooling BTUH (MAX): 14800
-
Cooling BTUH (MIN): 14,500 Btu
-
Cooling EER (BTUH / Watt): 10.5 / 10.6
-
Dehumidification (pts./hr.): 4.5 (High Speed)
-
Vent CFM (high fan at zero ESP): 44.4
-
Central Desk Control Compatibility: Yes
-
Chassis Type: Slide-In
-
Control Type: Standard Microcomputer
-
Tactile touch pad with LED Display: Yes
-
Corrosion Treated: Yes
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor: 2
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
-
Filter Type: Rigid Frame Slide-Out
-
Freeze Sentinel: Yes
-
Heat - Cool: Yes
-
Heat Sentinel: Yes
-
Heating System: Resistance only
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 95
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Charge (oz.): 34
-
Refrigerant Type: R454B
-
Rotary Compressor: Yes
-
Sensible Heat Ratio: 0.75
-
Temperature Limiting: Electronic 24-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
-
Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
-
Cooling - Amperes: 6.3/6.8
-
Cooling - Amperes; F.L. - Cooling: 6.3/6.7
-
Cooling - Amperes; L.R.: 31.5
-
Cooling - Watts: 1400/1365
-
Hertz: 60
-
Voltage (MAX): 230 V
-
Voltage (MIN): 208 V
-
Approximate Shipping Weight: 117 lb
-
Net Weight: 107 lb
-
Overall Depth: 20.8125 in
-
Overall Height: 16 in
-
Overall Width: 42 in
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Includes Heat Mode: Yes
-
Heat Type: Electric Resistance Only
-
Cooling BTUs (@208V): 14500
-
EER (@208V): 10.6
-
Cooling Amps (@208V): 6.7
-
Cooling Watts (@208V): 1380
-
Electric Heat Strip Size (kW @208V): 1.9 @15 amps / 2.8 @20 amps / 3.9 @30 amps
-
Electric Heating BTUs (@208V): 6600 / 9400 / 13400
-
Electric Heating Amps (@208V): 9.7 / 13.8 / 19.3
-
Electric Heating Watts (@208V): 1960 / 2780 / 3930
-
Cooling BTUs (@230V): 14800
-
EER (@230V): 10.5
-
Cooling Amps (@230V): 6.3
-
Cooling Watts (@230V): 1390
-
Electric Heat Strip Size (kW - @230V): 2.4 @15 amps / 3.4 @20 amps / 4.8 @30 amps
-
Electric Heating BTUs (@230V): 8100 / 11600 / 16300
-
Electric Heating Amps (@230V): 10.6 / 15.1 / 21.2
-
Electric Heating Watts (@230V): 2400 / 3400 / 4800
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Certifications: UL / cUL / AHRI / NRCAN
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-15P / 6-20P / 6-30P
-
Circuit Breaker Size (Amps): 15 / 20 / 30
-
Cord Length: 5'
-
Moisture Removal Capacity Pints Per Day: 108
